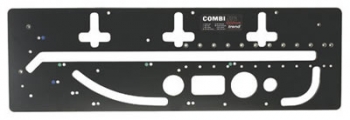

Trend COMBI 1002 Kitchen Worktop Jig

• For up to 1,000mm wide worktops now with cable tidy insert & circular hinge cut apertures
• Machined from hard wearing solid laminate
• Will produce a joint in 15 minutes including setting-up time
• The holes for the location bushes for each function
• Out-of-square joints can be accomodated
• Facilities to cut various widths of board and thicknesses up to 42mm
• Integral panel bolt connector recessing template with easy spanner access
• Width setting stop for accurate positioning
• A single male and female template in 16mm solid laminate
• Facility to join boards from 450mm to 1,000mm wide
• Facility to cut 22.5° mitre corners for hob units
• Integral template slots for rounding and mitring of peninsular worktop corners
• Three alloy location bushes and width-setting stop
• Colour coded pin location
• Three template apertures for panel bolt recesses
• 45° end cut
• Curved peninsular
• Corner radius
• Supplied with clear & comprehensive instructions for use
