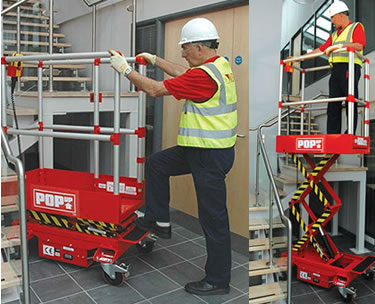

POP UP Electric Scissor Platform 12 Volt DC

Free UK Mainland Delivery over £50 ex. VAT!

Available Available (Please call for estimated delivery time)



POP UP Electric Scissor Platform 12 Volt DC

  • POP-UP replaces the need for ladders and steps to be used in low level access environments
  • Its' detailed design means that it can offer a multitude of special features that ensure the user has a safe yet simple solution to low level access
  • The POP UP is the most competitively priced scissor on the market ideal for low level electric access!!
  • Immediate 'Low Level Access' - 8 seconds to reach full platform height
  • Affordable - very competitively priced (offers good price comparison to other low level access equipment solutions)
  • Safe - designed to be fully stable with a safe working load of 240Kg
  • Easy to Transport - compact size and weight means it fits onto a small flat back vehicle and can be delivered by a single person
  • No Formal Training required to operate the POP-UP POPUP1
  • Fully extended platform height of 1.63 metre gives an average working height of 3.63 metre
  • Easy to manoeuvre - 'smooth roll' castors system fitted means it can be positioned by a single operative
  • Battery Powered with separate charger - low usage and ownership costs
  • Over 300 operations on one battery charge - can accommodate heavy 'daily' usage requirements
  • Easy to Operate - simple hand set controls all elevation/de-elevation functions
  • POP-UP has been designed, manufactured and tested in accordance with both the European Standard EN280 for Mobile Elevating Work Platforms and the safety requirements of the European Machinery Directive 98/37/EC.
Technical Specifications
Safe Working Load (SWL) 240Kg Equivalent to 1 person + 160Kg tools and materials
Maximum Platform Height 1.63 metres
Maximum Working Height 3.63 metres
Platform Length 1.01 metres
Platform Width 0.52 metres
Platform Guard Rail Height 1.10 metres
Toe Board Height 0.15 metres
Toe Board Height (gate end) 0.10 metres
Maximum Allowable Manual Force 200 Newtons
Maximum Allowable Wind Speed 3 metres/second
Maximum Allowable Chassis Inclination
Electrical System
Voltage 12 volt
DC Motor 0.7kW
Battery Charger for voltage supply 110 volt or 240 volt
Hydraulic System
Maximum Pressure 250 bar
Reservoir Capacity 1 litre
Function Speeds (approx.) Raise / Lower 8 seconds
Approx Number of Lifts (fully charged with SWL) 300
Stowed Dimensions (L x H x W) 1.135 x 1.636 x 0.700 metres
Weight Overall Mass (GVW) 270Kg
Maximum Wheel Load 350Kg
