StairDeck Stairway and Narrow Access Tower - 7.3m Platform Height

Lightweight alloy access tower specifically designed to be used on stairways and narrow access passages.

• Conforms to current working legislation for platforms over 2 metres in height
• STAIRDECK is built to commercial standards and is designed for safe working by professionals and home users alike

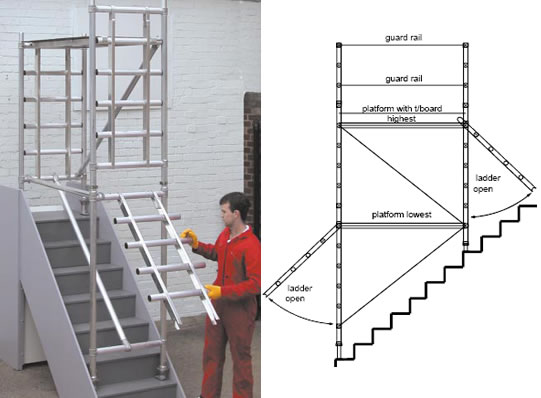

• The unique lifting section built into STAIR DECK allows easy access to the interior of the tower, enabling the user to climb to the working platform inside the structure, as is recommended for all access towers.
• The lift-up ladder section is at both ends of the tower, making entrance possible from stairs that are either below or above the tower.
• Horizontal rungs forming a ladder in each tower are spaced at 250mm. intervals.
• A small spirit level is attched to the underside of each platform to assist with levelling the tower during erection
• The stabiliser option is for 1 stairdeck stabiliser. If you require more stabilisers, please call and tell us the application and we will recommend how many stabilisers would be suitable.

Basic Kit (2.8m platform) Specifications For StairDeck Stairway & Narrow Access Tower.
Maximum Height From:
lowest step to rear handrail - 3.8m
Maximum Height From
highest step to front handrail - 2.8m
Overall width - 0.7m
Overall length - 1.5m

Lowest Platform Height
from highest step - 0.3m
Highest Platform Height
from highest step
(within guard rails) - 1.8m

Total tower kit weight - 100kg.
Maximum loading per stair - 50kg.

Sitebox Ltd is a Pasma Registered Company
