Trend MINIMACH Portable Clamping Bed

Trend MINIMACH Portable Clamping Bed

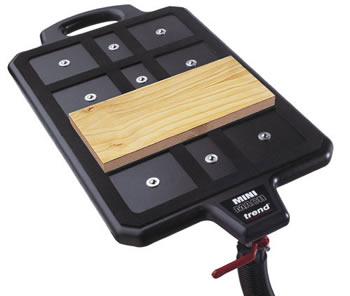

The Trend Minimach is a vacuum clamping bed providing obstruction-free clamping for woodworking applications with power tools or hand tools. It can be used with a workshop extractor such as the Trend T30 or a domestic vacuum cleaner.

The lower surface of the Minimach has a rubber gasket with one large vacuum cell which is used to clamp it to the workbench. The top surface has a gasket with a matrix of cells in two sizes. Together these provide the maximum surface area to hold small or large workpieces. The timber is pushed down to activate the air valves in the cells to engage the vacuum. The vacuum suction then holds the workpiece securely onto the bed. A red handle is used to release the vacuum

• Fast, simple obstruction-free clamping. Unique valve mechanism.
• Connects to a dust extractor or a vacuum cleaner with a motor rating over 1,000 watts and a clear air flow.
• Holds material from 95 mm square to 1,220 mm square.
• Can be used on a workbench or any flat surface.
• Can be used with a router, saw, planer or sander.
• Includes hanging bracket.

Technical Specifications
Size	610mm x 320mm x 80mm
Material possible min.	95mm x 95mm
Material possible max.	1220mm x 1220mm

The power source should be a minimum of 1,000 watt cylinder vacuum cleaner or industrial vacuum pump with a minimum rating of 6 cubic metres per hour. Please note that 'cyclone' cleaners like the Dyson are not suitable for use with the Minimach
