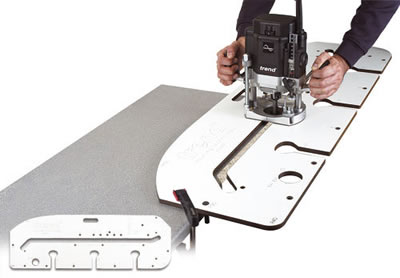

Trend KWJ900 Tradesman Worktop Jig

• NEW ALL IN ONE tradesmen work top jig for up to 900mm worktops
• Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up
• Left hand and right hand corners, 400mm radius peninsular joint, 45° end cut with slight radius, 22.5° “trade” corner solution, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and ¾” BSP hole for mixer taps
• Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 650mm, 700mm and 900mm wide worktops
• Cuts up to 40mm thick worktops with or without anti-drip postformed edge
• Three open-ended bolt recesses (dog bone style) for 150mm bolts
• Engraved lines for short 65mm bolts, and worktop cross-cut
• 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up
• Engraved markings for identification of pin holes
• 9 Functions:
• Female Cut
• Male Cut
• Connector Bolt Recess
• Curved Peninsular
• 45° End Cut
• R40mm Corner Radius
• R100mm Corner Radius
• 25º Mitre Joint
• 35mm Circular Hinge & ¾" BSP Hole
