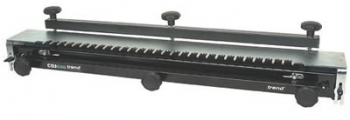

Trend CDJ 600 Dovetail Jig

Free UK Mainland Delivery over £50 ex. VAT!

Available Available (Estimated delivery time 1-2 working days)


Trend

Trend CDJ 600 Dovetail Jig

  • Accurate and easy to use dovetail jig for a variety of elegant joints
  • Cuts ½" wide half blind dovetails or rebated dovetails in one operation
  • Precision made laser cut zinc plated steel template with packing piece
  • A range of accessory templates are available for box joint, dowel and through dovetails
  • A unibase and fine height adjuster may be required for certain makes of router
Technical Specifiactions
Rating Craftsman
Dovetail Size 12.7mm
Max. Workpiece Thickness 25mm
Min. Workpiece Thickness 12mm
Max. Workpiece Width 600mm
Guide Bush Size 15.8mm
Max. Router Base Diameter 180mm

Standard Inclusive Equipment: ¼" Shank TCT 104º Dovetail Cutter, 15.8mm Guide Bush
