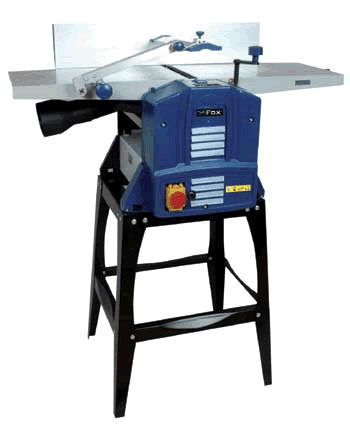

Fox F22-564-250 Planer Thicknesser - 10" x 5" (240 Volt Only)

• 10" x 5" Planer Thicknesser
• Fox's F22-564-250 10" x 5" 1500 Watt portable planer/thicknesser is aimedat the small workshop where space is at a premium, and additionally where value is placed on high levels of portability.
• Offering a surface planing width of 254mm (10"), coupled with a thicknessing capacity of 254mm x 127mm (10" x 5"), the F22-564-250 can tackle up to 3mm per pass.
• A block speed of 9,000rpm contributes to a quality plane finish.
• With a table size of 920mm x 262mm and a tilting aluminium fence measuring 635mm x 124mm, timber can be trued or bevelled with ease.
• Conversion to the thicknessing mode is straightforward, requiring just the fence assembly to be removed, the blade guard to be repositioned and the chip collection hood to be placed over the cutting block.
• Height adjustment is made by a well positioned crank handle.
• Specification
• Motor: 240 Volt 50Hz 1500 watts
• Blade Size: 261mm × 16.5mm × 1.5mm
• Blade speed: 9000 r.p.m.
• Cutting times: 18,000
• Max.cutting width: 254mm
• Max.cutting depth per pass: Jointer 0mm~3mm
• Max.cutting depth per pass: Planer 0mm~2mm
• Feeding speed: 6 metres per minute
• Range of cutting depth: 5mm-120 mm
• Max.cutting length: 1,000mm
• Table size of jointer: 920mm × 262mm
• Table size of planer: 270mm × 290mm
• Aluminium parallel fence : 635mm x 124mm
