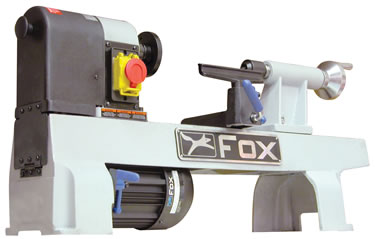

Fox F46 251 Midi Lathe - 10" (240 Volt Only)

• A compact yet powerful lathe constructed predominantly from grey cast iron, precisioin milled for accuracy and smoothness in operation
• 15" (375mm) between centres with an optional lathe bed extension available to increase this capacity to a maximum of 39" (990mm)
• Bowl turning capacity of 10" (250mm)
• Powerful whisper quiet ¾hp induction motor providing more than sufficient power to prevent slowing or stalling
• Maximum power transmission is achieved via a high performance serpentine belt system and a combination of six grooved pullies enabling turning speeds from 410rpm - 3050rpm
• Fox Tools have used industry standard components, enabling a wide range of accessories to be used with this lathe
• Main drive spindle has a 1" x 8tpi thread, coupled with a morse No. 2 taper
• Hollow tailstock facilitates up to 3/8" hole boring for applications such as lamp making
• Comes Standard with a 6" cast tool rest, face plate, spur centre and revolving centre.
• One year manufacturers guarantee
• Technical Specifications:
• Motor ... ¾hp Induction
• Speed (variable) ... 410rpm, 650rpm, 1030rpm, 1500rpm, 2200rpm & 3050rpm
• Distance between centres ... 15" (375mm)
• Swing over bed ... 10"
• Thread ... 1" x 8tpi
• Tapers ... Morse No.2
• Tail stock spindle travel ... 2¼" (60mm)
• Weight ... 35Kg
• F46 856 Extension Bed Is Here
