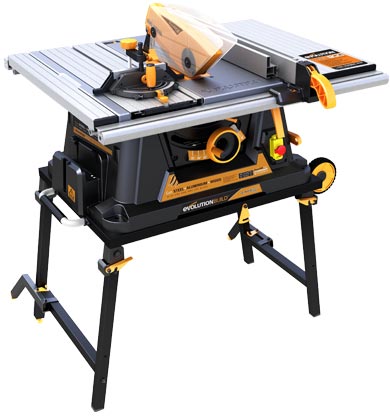

Evolution Rage 5 255mm Multipurpose Table Saw
Includes 1 x Multipurpose TCT Blade
The most versatile professional quality table saw available – the RAGE5 will easily cut Steel, Aluminium, Wood & Plastic, using just one blade.
Excellent at ripping thin stock, making accurate crosscuts, handling sheet goods, cutting dadoes, grooves & tenons, and sawing large or thick stock.
Features include a high quality quick-clamp rip fence for maximum cutting stability, precise height and angle adjustment and mitre gauge with top clamp and sliding carriage, which provides an extremely secure & smooth cutting motion.
Technical Specifications:
Motor (230v or 110v ~ 50Hz): 1800W
Maximum Cutting Depth (90°): 80mm
Maximum Cutting Depth (45°): 60mm
Table Size: 868 x 656mm
Table Size (with extensions L&R): 1260 x 656mm
Speed (No Load): 2500min-1
Machine Weight: 32kg
Product Dimensions (H x L x W): 910mm x 750mm x 868mm
Recommended Maximum Duty Cycle: 30mins
Sound Pressure Level (Under Load): Lpa = 96.8dB(A)
Sound Power Level (Under Load): Lwa = 109.8dB(A)
Dust Extraction Port (Internal): 28mm
Carton Size: 950mm x 760mm x 500mm
Blade Specifications:
Maximum Diameter: 255mm
Number Of Teeth: 28
Bore Diameter: 25.4mm
Thickness: 2mm
Blade Weight: 0.5kg
Packaging Dimensions: 325 x 305 x 6mm
Packaging Weight: 0.1kg
Product Information
- Cuts Steel, Aluminium, Wood & Plastics.
- Easily cuts wood with nails.
- Fast, clean and accurate cutting performance.
- Produces no burr, no heat and very few sparks.
- No coolant required.
- Mitre gauge with top clamp and sliding carriage provides secure and smooth cutting motion.
- Precise height and angle adjustment.
- Quick-clamp rip fence for maximum cutting stability.
- Wheel kit for easy transportation.
- High quality construction with 12 months warranty.
Includes:
RAGE 255mm Multipurpose Blade
Mitre Fence with Top Clamp
Rip Fence
Folding Leg Stand
Push Stick
Aluminium Extensions (left & right)
Operator's Manual
