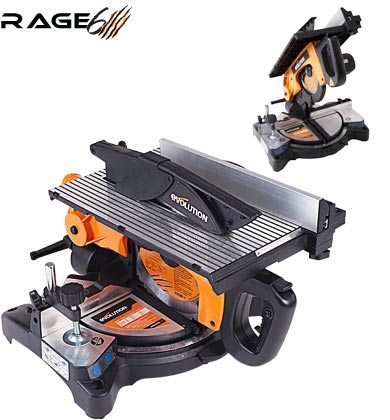

Evolution Rage 6 255mm Multipurpose Compound Mitre/Table Saw

Includes 1 x Multipurpose TCT Blade

This impressive machine offers tremendous versatility, accuracy and performance though a huge range of applications.

Combining both mitre and table saw functionality the RAGE6 is as proficient in making accurate cross cuts as it is handling sheet materials.

It will easily cut Steel, Aluminium and Wood (even wood with nails), using just one blade, and the cut through steel produces no heat, no burr and very few sparks.

Technical Specifications:

Motor (230v ~ or 110v ~ 50/60 Hz):     1600W
Speed No Load:     2500min-1
Machine Weight:     17.85kg

Product Dimensions Down (H x L x W):     380mm x 570mm x 480mm

Product Dimensions Up (H x L x W):     520mm x 520mm x 480mm
Recommended Maximum Duty Cycle:     30mins
Sound Pressure Level (Under Load):     106.3dB(A) K=3dB(A)
Sound Power Level (Under Load):     119.3dB(A) K=3dB(A)
Vibration Level:     2.5 m/s2 K =1.5dB(A)
Dust Extraction Port (Internal):     28mm
Packaging Dimensions (HxWxL):     520mm x 420mm x 620mm

Mitre Saw Cutting Capacities:

Max Cross Cut:     70mm x 150mm

Table Saw Cutting Capacities:

Max Cutting Depth:     40mm

Blade Specifications:

Maximum Diameter:     255mm
Number Of Teeth:     28
Bore Diameter:     25.4mm
Thickness:     2mm
Blade Weight:     0.5kg
Packaging Dimensions:     325mm x 305mm x 6mm
Packaging Weight:     0.1kg
