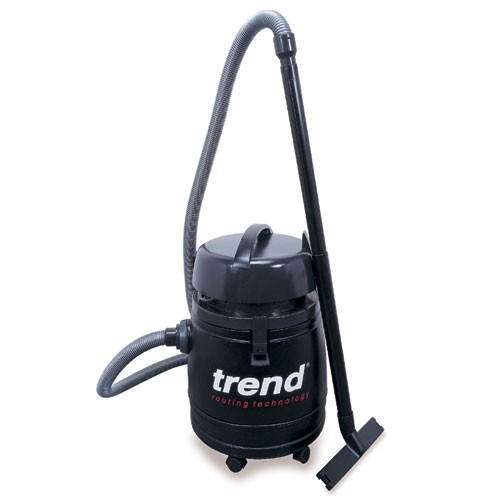

Trend T30AF Wet & Dry Vacuum Extractor (230 Volt)

• A powerful wet and dry autostart extractor with many useful features.
• Powerful but quiet 1200 watt bypass motor.
• Power tool take off with auto start feature and 6 second run-on delay.
• Large 34 litre capacity impact resistant plastic container with five castors for stability.
• Extra long 7.8 metre power cable.
• Extra long five metre hose.
• Includes fine dust filter kit comprising 0.3 micron micro cartridge filter for increased effectiveness against fine dust particles and nylon wet & dry pre-filter for prolonged life.

Specifications

Rating: Profesional/Trade
Power input: 1200w
Power ampage: 5.2amp
Autostart max. (230v): 2000w
Autostart min.: 40w
Airflow: 3300 L/min
Vacuum max.: 2300 mm H20
Noise: 72dB
Hose: 5mx36 mm OD
Container volume (dry): 34L
Container volume (wet): 25L
Dimensions: 620 x 400 x 400 mm
Weight: 11.5kg
Voltage: 230v

Includes

• 1 x Fine Dust 0.3 Micron Cartridge filter
• 1 x Paper Filter Bag
• 1 x Nylon Wet & Dry Pre-filter
• 1 x 5 metre hose
• 1 x Floor Cleaning Kit
• 1 x Creavice Tool
• 1 x Upholstery Tool
• 1 x Power Tool Adaptor

Information

With growing concerns about the damage to health from inhaling dust when using powertools, we highlight the merits of the new T30 vacuum extractor.

Vacuum extractors for use with powertools are designed to capture large and fine particles produced at source. This ensures that particles do not become airborne where they can be inhaled or caught in the eye.

The new T30A extractor captures particles by filtering the air through a paper bag, and finer dust particles are then removed by a cartridge filter. A pre-filter option can also be fitted that extends the life and performance of the cartridge filter.

A 1200 watt bypass motor provides the power to the unit and an auto start facility allows direct connection of any 240 volt powertool up to 2000 watts. With the extractor set to automatic, the extractor will start up when the powertool is switched on. When switched off, the extractor will run on for a further six seconds to clear the hose. This auto feature saves unnecessary switching on and off, while the extra long cable (7.8m) avoids the need for an extension lead!

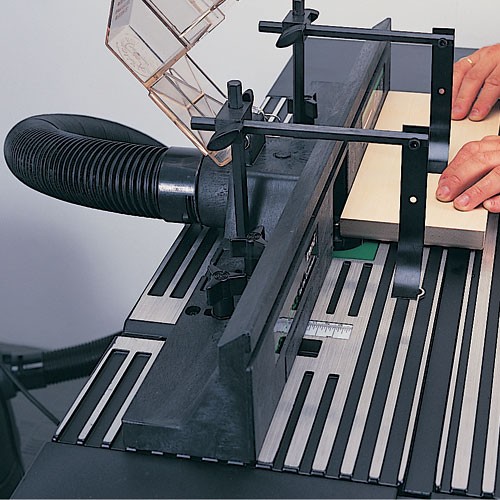

The extractor has a generous five metre x 36mm diameter flexible hose that has an integral swivel connector that fits Trend and other makes of routers. This extra length proves ideal for power sanding. An optional larger 58mm diameter hose enables direct connection to router tables and stationery machines, offering an increase in performance due to the larger volume throughput.

The T30AF version should be used when routing fine dust as it incorporates as standard a 0.3 micron cartridge filter and a nylon pre-filter. A paper filter bag should still be used. A T30A can be upgraded to a T30AF by replacing the standard cartridge filter with a 0.3 micron cartridge filter (ref. T30/5) and adding a nylon pre filter. (ref. T30/3).

Wet & Dry Use

The T30A container has a 34 Litre dry capacity and a 25 Litre wet capacity.

For normal dry use a paper filter bag, and the standard 12 micron cartridge filter should be fitted (filter filtrates particles above 12 micron in size). A cloth pre-filter (ref. T30/2) can be purchased separately which prolongs the life of the cartridge filter.

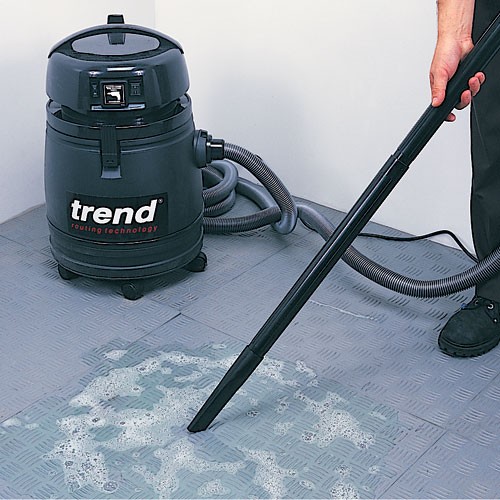

For wet use the extractor is fitted with a float that prevents water from entering the machine. The paper bag and cartridge filter must be removed. A no-foam filter accessory (ref. T30/4) is available which prevents foaming in the machine (if required). A nylon pre-filter (ref. T30/3) is also available that is washable and can be used for both wet and dry use.
