Day/Night 480/540 TVL Vandal Resistant IR Dome CCTV Camera with 30 Metres Night Vision & Varifocal Lens

Model Number: EVC450D

Code: 2272

Overview

Excellent value Vandal Resistant IR Night Vision Dome CCTV Camera with Varifocal lens, allowing it to be adjusted during installation to any viewing angle between 30 and 64°. Using a High Resolution Sony 1/3" Super HAD CCD a high resolution 480/540 TVL image is provided by the camera. The CCTV Camera is Vandal Resistant and can withstand a blow from a 10 pound sledgehammer making it suitable for use where there is a risk that the camera may be vandalised. It is designed for internal or external use and can be wall or ceiling mounted.

Features

• Ideal for high risk applications, the camera is built around a Sony 1/3" Super HAD CCD image sensor which provides recognition quality and basic identification quality images.

• The camera features built in IR (Infra Red) LEDs, these allow the camera to see in low light or complete darkness up to 30 metres. The camera shows Colour images in good lighting conditions and then switches to B/W images in low light or complete darkness, when in this mode the camera can see the light produced by the IR LEDs and provide good quality images as if it was daylight, however to the human eye the light emitted from the IR LEDs remains invisible!

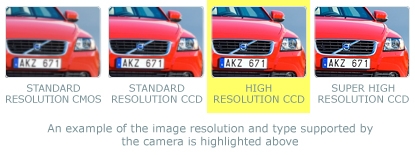

• The camera is able to produce 480/540 TVL images. These are equivalent to Near DVD quality and suitable for recording at 704x576 (4CIF) or 720x576 (D1) resolutions.

• The camera will operate in complete darkness (0 lux) up to a distance of 30 metres thanks to its built in IR LEDs, beyond 30 metres the camera will operate in any environment that has a light level above 0.1 lux. Examples of environments that have a light level above 0.1 lux are:

Dawn and Dusk
A Residential Road with Street Lighting
A Bar or Nightclub

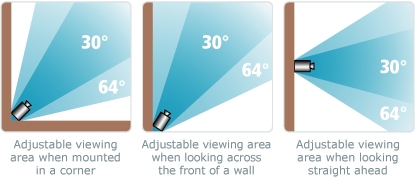

• The camera is fitted with a 4.0 to 9.0mm varifocal aspherical lens. The camera has an adjustable horizontal viewing angle of 30 to 64° when used with this lens.



• The camera features a Standard Day/Night DSP (Digital Signal Processing) chip which offers the following functions to increase the image sensors performance:

Automatic Electronic Iris - This feature automatically adjusts the brightness of the camera image to match the amount of available light.

Automatic White Balance - This feature automatically adjusts the colour temperature of the camera image to match the type of light available, so that white and other colours appear as natural as possible.

Automatic Gain Control - This feature automatically increases the video output level of the camera in low light conditions. This has the effect of making the picture brighter (however it may also add more noise to the picture, as it is amplifying all aspects of the video signal)

Day/Night - This feature works in conjunction with a special filter on the image sensor, the filter on the image sensor allows the camera to see light emitted from IR LEDs as white light, allowing the camera to see in low light and complete darkness without actually visibly (to human eyes) lighting up the area. The Day/Night function then converts this image to B/W so it can be seen clearly and also balances out the picture so that the picture is not too bright.

• The camera is Vandal Resistant as the base is made from high strength metal and the lens area is made from impact resistant polycarbonate, giving the camera the ability to withstand a blow from a 10 pound sledgehammer.

• The camera is weather resistant and can be used internally or externally.

• The camera features a unique 3 Axis bracket allowing it to be wall or ceiling mounted.

• The camera is supplied with a 1 Year Warranty.

Specifications

Brand
IQCCTV
Model
EVC450D
Type
Style:	Day/Night IR Night Vision Vandal Resistant Varifocal Dome Camera
Weather Resistant:	Yes
Mounting Type:	Wall or Ceiling
Dimensions (without bracket):	Width: 220mm Height: 195mm Depth: 220mm
Shipping Weight:	1.00 Kg
Warranty:	1 Year
Image Sensor/DSP
Sensor Type:	Sony 1/3" Super HAD CCD
DSP Type:	Standard Day/Night DSP
DSP Functions:	Automatic Electronic Iris Automatic White Balance Automatic Gain Control Day/Night
Performance
Resolution:	480/540 TVL
Minimum Illumination:	0 Lux (IR on) 0.1 Lux (IR off)
Night Vision:	IR Leds for up to 30 metres night vision
Lens
Type:	Varifocal Standard
Size:	4.0 to 9.0mm
Viewing Angle:	30 to 64°
Power Requirements
Operating Voltage:	12V DC 270mA
Suggested Power Supply:	12V DC 1250mA
Connections
Video Output:	BNC Socket
Audio Output:	N/A
Power Input:	DC Socket
