Colour 580 TVL, B/W 700 TVL Vandal Resistant Dome CCTV Camera with Auto Iris Varifocal Lens, Dynamic Night View, Smart DNR & Super WDR

Model Number: XPD721WDR

Code: 1246

Overview

The highest specification analogue CCTV camera available! Professional Colour Dome Camera for Day/Night use with Dynamic Night View feature for excellent Colour vision during the day and super high resolution 700 TVL resolution in B/W down to 0.0003 Lux (Clear Night Sky with a Full Moon). Uses the latest Samsung Winner 4 DSP which features Super Wide Dynamic Range as standard so it can provide a clear overall picture even when strong backlight or bright spots are present. The integrated Xvision Pixel+ Auto Iris Varifocal Aspherical Lens allows easy selection of any viewing angle between 26 and 92�, plus the Digital Noise Reduction feature reduces the noise on the picture resulting in a clearer picture than traditional Day/Night cameras and making the picture size smaller when being recorded on a DVR, so longer recordings are possible! The CCTV Camera is designed for non-obtrusive or discreet use in very high risk applications where excellent quality surveillance is required. The camera is Vandal Resistant and can withstand a blow from a 10 pound sledgehammer making it suitable for use where there is a risk that the camera may be vandalised. It is designed for internal or external use and can be wall, ceiling, pole or corner mounted.

Features

• Ideal for very high risk applications, the camera is built around a Sony 1/3" Ex View CCD image sensor which provides identification quality images.

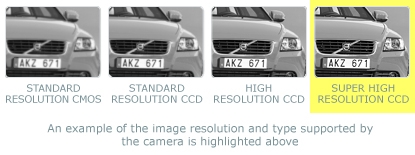

• The camera is able to produce 700 TVL images. These are better than DVD quality and suitable for recording at 704x576 (4CIF) or 720x576 (D1) resolutions.



• The camera will operate in light levels down to 0.0003 lux, making it suitable for use in any environment that has a light level above 0.0003 lux. Examples of environments that have a light level above 0.0003 lux are:

Clear Night Sky with a Full Moon
A Bar or Nightclub

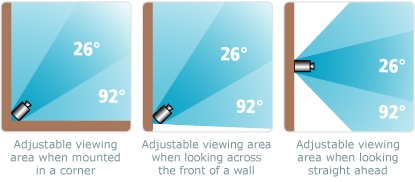

• The camera is fitted with a 2.8 to 11.0mm auto iris varifocal aspherical lens. The camera has an adjustable horizontal viewing angle of 26 to 92� when used with this lens.



• The camera features a Samsung Winner 4 DSP (Digital Signal Processing) chip with Xvision X4 DSP Software which offers the following functions to increase the image sensors performance: Automatic Electronic Iris - This feature automatically adjusts the brightness of the camera image to match the amount of available light.

Automatic White Balance - This feature automatically adjusts the colour temperature of the camera image to match the type of light available, so that white and other colours appear as natural as possible.

Automatic Gain Control - This feature automatically increases the video output level of the camera in low light conditions. This has the effect of making the picture brighter (however it may also add more noise to the picture, as it is amplifying all aspects of the video signal)

Multi Zone Back Light Compensation (Super Dynamic Range) - This feature makes objects in front of a bright scene (such as a window on a bright sunny day) clearer to see by increasing their brightness and making the background darker. The Multi Zone feature allows the selection of various preset back light patterns to cope with the most common backlight issues, for example a Window scene, an entrance scene, a car headlight scene etc...

Low Smear - This feature helps to balance out the camera image when some areas of it may be looking at very bright or reflective objects.

Edge Enhancement - This feature sharpens the edges of objects and people in the camera image making the picture sharper and the resolution higher.

Zero Colour Rolling - This feature stops the colours in the image from changing hue every few seconds (also known as hunting or colour rolling). This happens to all colour CCD cameras that do not have this feature when used in environments where 2 different light environments are visible, for example when viewing a room that is lit up by a light bulb and also by light coming in through a window. It can also occur when viewing rooms that have Fluorescent Tube Lights.

Dynamic Night View (Digital Slow Shutter) - This feature provides clear images in Colour without the need for IR LEDs down to 0.002 lux, this is achieved by using Field Integration, please note due to the way in which field integration works, whilst it is in operation the frame per second will reduce. The darker the scene the lower the frames per second.

Smart DNR (3D Digital Noise Reduction) - This feature reduces the noise on the image when viewing in low lux environments (like at night), this reduces the size of the image when being recorded by a DVR, resulting in a saving of disk space. The 3D function reduces the noise on all 3 dimensions of an object, resulting in a better image than is possible with standard Digital Noise Reduction.

Motion Detection - Ideal for use in large systems the camera has built in motion detection, as soon as motion is detected it will alert the operator b displaying a Motion Detected message over the video image. Dome shaped and is ideal for non-obtrusive or discreet use in retail outlets, the camera itself is tamper resistant as it has a dome cover to protect it from tampering.

Privacy Zones - This feature will hide from view any areas of the cameras view that are private, an essential feature for fully complying with the Data Protection Act.

Digital Image Stabilising - This feature stops picture shake, for example when the camera is mounted externally it may vibrate or move slightly due to the wind or other factor. The camera samples each image before displaying it and synchronises it with the next image so that the picture shake is not visible, this also helps to prevent false alarms when using motion detection.

Super Wide Dynamic Range - This feature allows the camera to display balanced pictures even when the scene being watched has bright spots or various light level and back light conditions.

• The camera is Vandal Resistant and Dome shaped and is ideal for non-obtrusive or discreet use inside and outside buildings.
• The camera is tamper resistant as it has a dome cover to protect it from tampering and is also Vandal Resistant as the base is made from high strength metal and the dome is made from impact resistant polycarbonate, giving the camera the ability to withstand a blow from a 10 pound sledgehammer.
• The camera is weather resistant and can be used internally or externally.
• The camera features a unique 3 Axis bracket allowing it to be wall or ceiling mounted.

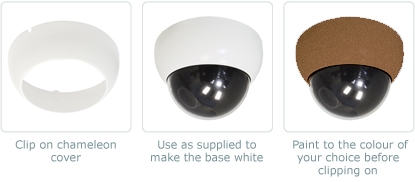

• The camera is supplied with a Chameleon Cover, this can be clipped over the base of the dome so the colour of the base is changed from Black to Silver. The Chameleon Cover can also be painted and then clipped over the dome, this is a great way to quickly and easily colour match the dome to the area within which it is being mounted. A prepainted Silver and Ivory Chameleon Cover are available for changing the colour of the base (see 'Accessories' tab for more info)

• The camera can be wall mounted, corner mounted or pole mounted using the optional brackets available (see 'Accessories' tab for more info)

• Optional Mirrored Dome Cover available to hide which way the camera in side the dome is looking (see 'Accessories' tab for more info)

• The camera is supplied with a 3 Year Warranty.

Specifications

Brand
Xvision Professional
Model
XPD721WDR
Type
Style:	Colour Varifocal Vandal Resistant Dome Camera
Weather Resistant:	Yes
Mounting Type:	Wall or Ceiling
Dimensions (without bracket):	Width: 130mm Height: 90mm Depth: 130mm
Shipping Weight:	0.82 Kg
Warranty:	3 Years
Image Sensor/DSP
Sensor Type:	Sony 1/3" Ex View CCD
DSP Type:	Samsung Winner 4 DSP with Xvision X4 DSP Software
DSP Functions:	Automatic Electronic Iris Automatic White Balance Automatic Gain Control Multi Zone Back Light Compensation (Super Dynamic Range) Low Smear Edge Enhancement Zero Colour Rolling Dynamic Night View (Digital Slow Shutter) DNR (Digital Noise Reduction) Motion Detection Privacy Zones Digital Image Stabilising Super Wide Dynamic Range
Performance
Resolution:	580 TVL (Colour mode) 700 TVL (B/W mode)
Minimum Illumination:	0.0003 Lux
Night Vision:	Dynamic Night View (Digital Slow Shutter)
Lens
Type:	Auto Iris Varifocal Aspherical
Size:	2.8 to 11.0mm
Viewing Angle:	26 to 92�
Power Requirements
Operating Voltage:	12V DC 150mA
Suggested Power Supply:	12V DC 300mA
Connections
Video Output:	BNC Socket
Audio Output:	N/A
Power Input:	DC Socket
