Day/Night 480/540 TVL IR Bullet CCTV Camera with 15 Metres Night Vision

Model Number: XV403

Code: 513

Overview

Probably the UK's best selling IR Bullet Camera! A High Quality IR Night Vision Bullet CCTV Camera with a High Resolution Sony 1/3" Super HAD CCD and Xvision DSP for great night vision, resulting in a bright image. The CCTV Camera is fitted with IR LEDs and is designed for use in high risk applications where high quality surveillance in low light or complete darkness up to a distance of 15 metres is required. The camera is weatherproof without the need for a separate housing, while still being small enough to use internally. The small form factor means it is ideal for use as a discreet camera that is still a deterrent to criminals. It can be wall or ceiling mounted using the bracket supplied.

Features

• Ideal for high risk applications, the camera is built around a Sony 1/3" Super HAD CCD image sensor which provides recognition quality and basic identification quality images.

• The camera features built in IR (Infra Red) LEDs, these allow the camera to see in low light or complete darkness up to 15 metres. The camera shows Colour images in good lighting conditions and then switches to B/W images in low light or complete darkness, when in this mode the camera can see the light produced by the IR LEDs and provide good quality images as if it was daylight, however to the human eye the light emitted from the IR LEDs remains invisible!



• The camera is able to produce 480/540 TVL images. These are equivalent to Near DVD quality and suitable for recording at 704x576 (4CIF) or 720x576 (D1) resolutions.

• The camera will operate in complete darkness (0 lux) up to a distance of 15 metres thanks to its built in IR LEDs, beyond 15 metres the camera will operate in any environment that has a light level above 0.3 lux. Examples of environments that have a light level above 0.3 lux are:

Dawn and Dusk
A Residential Road with Street Lighting
A Bar or Nightclub

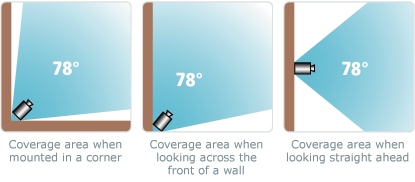

• The camera is fitted with a 3.6mm standard fixed iris lens. The camera has a fixed horizontal viewing angle of 78° when used with this lens.

  The camera features an Xvision IXC1DNE DSP (Digital Signal Processing) chip which offers the following functions to increase the image sensors performance: Automatic Electronic Iris - This feature automatically adjusts the brightness of the camera image to match the amount of available light.

  Automatic White Balance - This feature automatically adjusts the colour temperature of the camera image to match the type of light available, so that white and other colours appear as natural as possible.

  Automatic Gain Control - This feature automatically increases the video output level of the camera in low light conditions. This has the effect of making the picture brighter (however it may also add more noise to the picture, as it is amplifying all aspects of the video signal)

  Back Light Compensation - This feature makes objects in front of a bright scene (such as a window on a bright sunny day) clearer to see by increasing their brightness and making the background darker.

Low Smear - This feature helps to balance out the camera image when some areas of it may be looking at very bright or reflective objects.

Edge Enhancement - This feature sharpens the edges of objects and people in the camera image making the picture sharper and the resolution higher.

Day/Night - This feature works in conjunction with a special filter on the image sensor, the filter on the image sensor allows the camera to see light emitted from IR LEDs as white light, allowing the camera to see in low light and complete darkness without actually visibly (to human eyes) lighting up the area. The Day/Night function then converts this image to B/W so it can be seen clearly and also balances out the picture so that the picture is not too bright.

• The camera is very versatile and is weatherproof without the need for a separate housing, while still being small enough to use internally. The small form factor means it is ideal for use as a discreet deterrent camera, so people will be conscious of the fact a camera is installed but will not find it an eyesore.

• The camera is supplied with a fully adjustable bracket which allows the camera to be wall or ceiling mounted.

• The camera is supplied with a 2 Year Warranty (1 Year for LEDs).

Specifications

Brand
Xvision
Model
XV403
Type
Style:	Day/Night IR Night Vision Bullet Camera
Weather Resistant:	Yes
Mounting Type:	Wall or Ceiling
Dimensions (without bracket):	Width: 60mm Height: 60mm Depth: 115mm
Shipping Weight:	0.64 Kg
Warranty:	2 Years (1 Year for LEDs)
Image Sensor/DSP
Sensor Type:	Sony 1/3" Super HAD CCD
DSP Type:	Xvision IXC1DNE DSP
DSP Functions:	Automatic Electronic Iris Automatic White Balance Automatic Gain Control Back Light Compensation Low Smear Edge Enhancement Day/Night
Performance
Resolution:	480/540 TVL
Minimum Illumination:	0 Lux (IR on) 0.3 Lux (IR off)
Night Vision:	IR Leds for up to 15 metres night vision
Lens
Type:	Standard Fixed Iris
Size:	3.6mm
Viewing Angle:	78°
Power Requirements
Operating Voltage:	12V DC 750mA
Suggested Power Supply:	12V DC 1250mA
Connections
Video Output:	BNC Socket
Audio Output:	N/A
Power Input:	DC Socket
