Product ID: PCLX_32S_STREETWORKS
Manufacturer: Belle
Warranty: Click here for info
Altrad Belle shall at its option repair or replace free of charge any item which fails, where it is shown to the company's reasonable satisfaction that such failure or failures have resulted from the company's faulty design, workmanship or material defect, and provided further that in respect parts not of the company's manufacture. The company can give to the customer only such guarantee as the manufacturer gives to the company. The repaired or replacement part or parts shall be supplied free of charge but the company's liability as to delivery and fitting or other expense shall be limited to carriage paid in the U.K or F.O.B U.K port.
The defective part shall become the property of the company and shall be held to its order. Altrad Belle accepts no responsibility for any consequential costs incurred through loss of use or any other charges or costs whatsoever resulting from a warrantable failure.
This warranty is given, subject to certain obligations undertaken by the owner as described in this document.
Period of warranty for all products - manufactured and supplied by Altrad Belle carry an eighteen month warranty from date of invoice to dealer or twelve months from date of sale to customer whichever occurs first.
Period of warranty for replacement parts - manufactured and supplied by Altrad Belle will carry a Warranty to the end of the duration of the machines warranty period.
Period of warranty for new parts - manufactured and supplied by Altrad Belle carry a three month warranty from date of invoice.
Price: (£974.99 ex VAT) £1,169.99 (inc VAT)

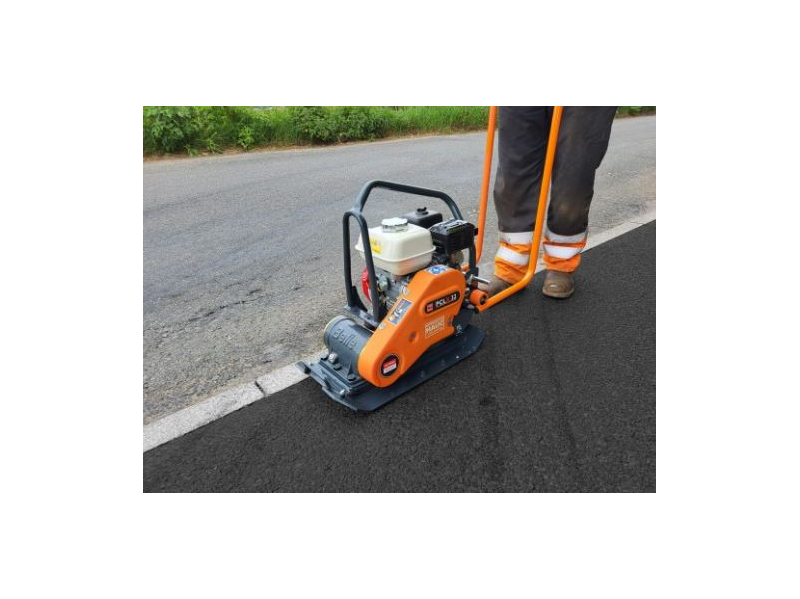

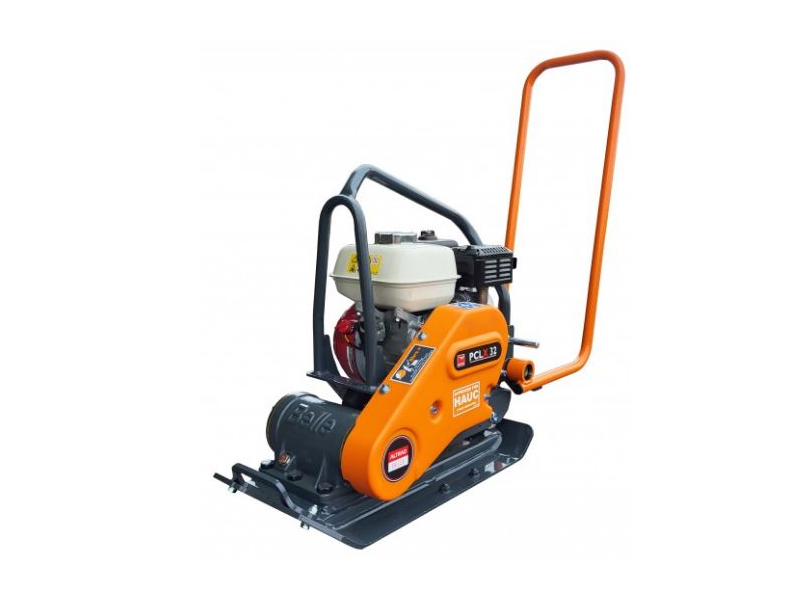

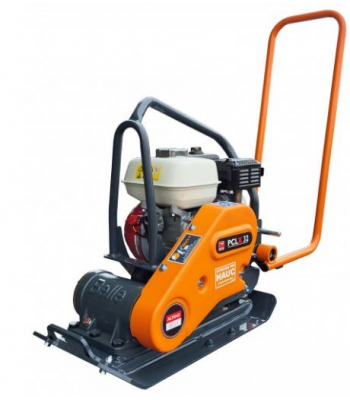

1169.99 2024-05-29Professional single direction plate compactor with over 1400kg/m2 of compaction, exceeding the HAUC requirements for the reinstatement of footpaths.
With low Hand Arm Vibration and high performance compaction from the 13kN vibrator, this robust compactor is designed for contracting and rental use.
● Low Hand-Arm Vibration design for longer safe usage times.
● ‘Dual Force’ base plate provides added compaction to meet UK HAUC requirements.

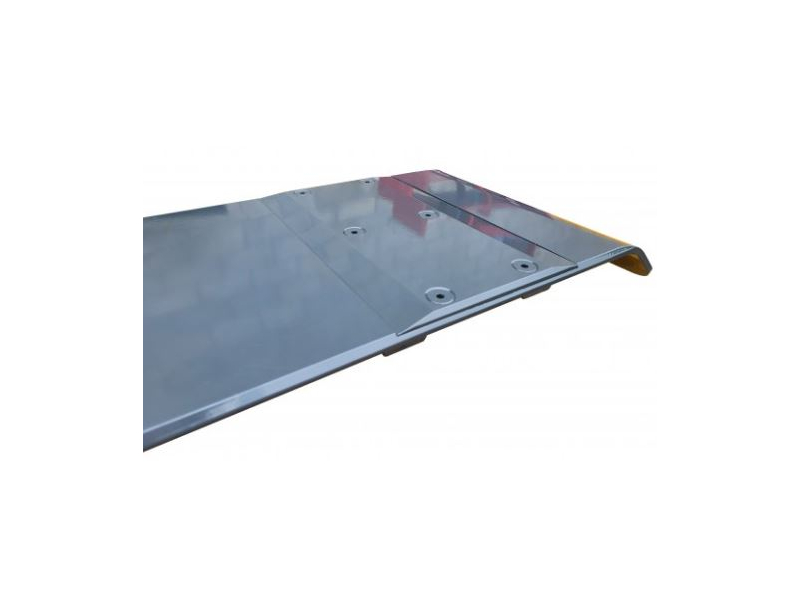

● The baseplate is made from Strenx™ performance steel with a Hardox® wear plate for added strength and durability.
● Powerful, reliable Honda GX120 petrol engine.
● High performance 13kN vibration unit gives excellent compaction force and travel speeds.
● Tubular frame designed to protect vulnerable components.
● Lightweight yet durable for easy transport.
● Fits in a standard car boot when the handle is folded.
● Fitted with manual handling points.
● Engineered to be robust and durable for rental and heavy contractor usage.
● Improved productivity with fast travel speeds.
● Optional, removable 12-litre water tank features a quick-release design.
● Customer colour options available.
| Model | Part Number | Engine Power(Hp) - (kW) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Frequency (Hz) | Max. Travel Speed (m/min) | DimensionsW x L x H (mm) | Vibration Level (m/sec2) | Weight (Kg) |
| PCLX 32S 'Streetworks' - Honda GX120 Petrol | LX3271 | 3.2 - 2.4 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | 2.26 | 67 |
| PCLX 32S 'Streetworks' - Honda GX120 Petrol & Water Kit | LX3271W | 3.2 - 2.4 | 1662 | 13 | 101 | 18 | 320 x 835 x 936 | 2.26 | 69 |
