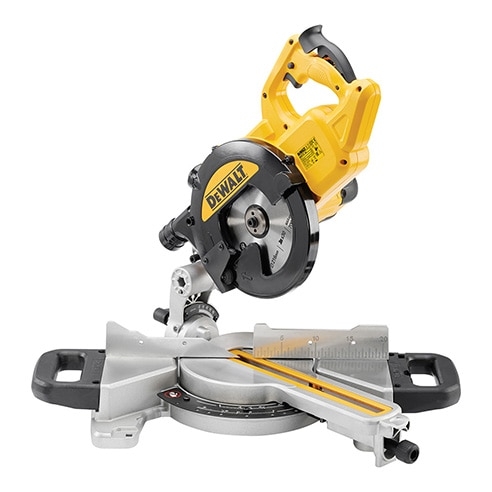

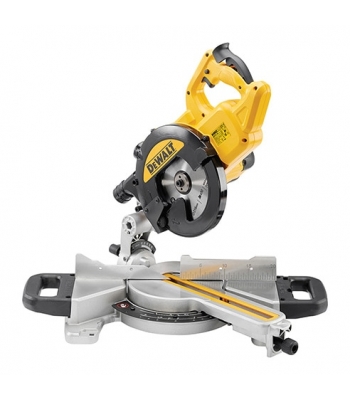

Dewalt DWS774 216mm Mitre Saw - (240v/110v)

The classic saw design improved and updated for the modern user

New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only)

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

Overview

  • The classic saw design improved and updated for the modern user
  • New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only)
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
  • Improved Dust extraction efficiency
  • The base and fence have been machined to meet the accuracy requirements of the most demanding applications
  • New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
  • Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
  • Fixed left & right hand fences with measuring scale for improved material support and management
  • Compact internal rail design for huge cutting capacity in a highly transportable format
  • Carry side handles for east transportation
  • Designed for wood cutting only and must not be used to cut any metal (Ferrous or Non Ferrous)

Standard

  • TCT tooth saw blade
  • Blade spanner
  • Material Clamp

Specifications

Power Input 1400 Watts
Power Output 1100 Watt
Voltage
Battery
Power Source
Battery Capacity
Blade Speed 4500 rpm
Blade Diameter 216 mm
Blade Bore 30 mm
Bevel Capacity 48 °
Mitre Capacity [right/left] 48/48 °
Cutting Capacity at 90°/45° (W x H) 173 x 62 mm
Cutting Capacity at 90°/90° (W x H) 250 x 62 mm
Cutting Capacity at 90°/90° (W x H) 250 x 60 mm
Cutting Capacity at 45°/90° (W x H) 177 x 62 mm
Cutting Capacity at 45°/90° (W x H) 177 x 60 mm
Cutting Capacity at 90°/45° (W x H) 265 x 48 mm
Max. Cutting Capacity at 45°/45° 190x48 mm
Max. Depth of Cut [Saws] 70 mm
Weight 12.0 kg
Depth 550 mm
Length 490 mm
Height 590 mm
Hand/Arm Vibration - Cutting Wood 2.1 m/s²
Uncertainty K 1 (Vibration) 1.5 m/s²
Sound Power 104 dB(A)
Sound Power Uncertainty 3.9 dB(A)
Sound Pressure 93 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Battery chemistry
Max. Ripping Capacity [right]
Max. Ripping Capacity [left]

Brand: DeWalt

Identifier: DWS774
