DRABEST COMPLIMENTARY SET FOR HECTOR AND ZEUS SCAFFOLDINGS CODE HECTOR-S & ZEUS

Complimentary set for HECTOR and ZEUS mobile scaffoldings. The set consists of elements that complement the scaffolding in the BASIC version. By purchasing additional security measures, work on the scaffolding will become much safer and more stable.

Reference HECTOR-S ZEUS-S

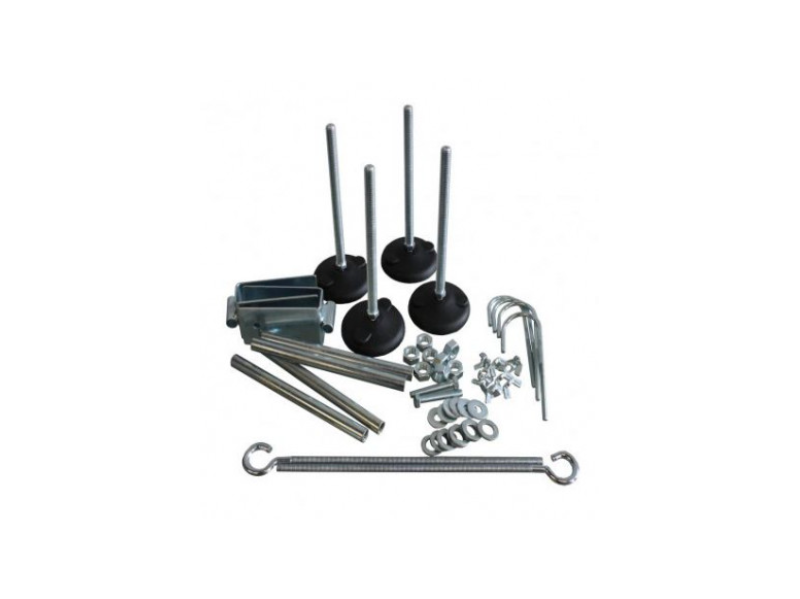

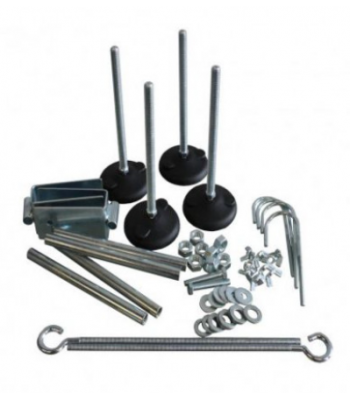

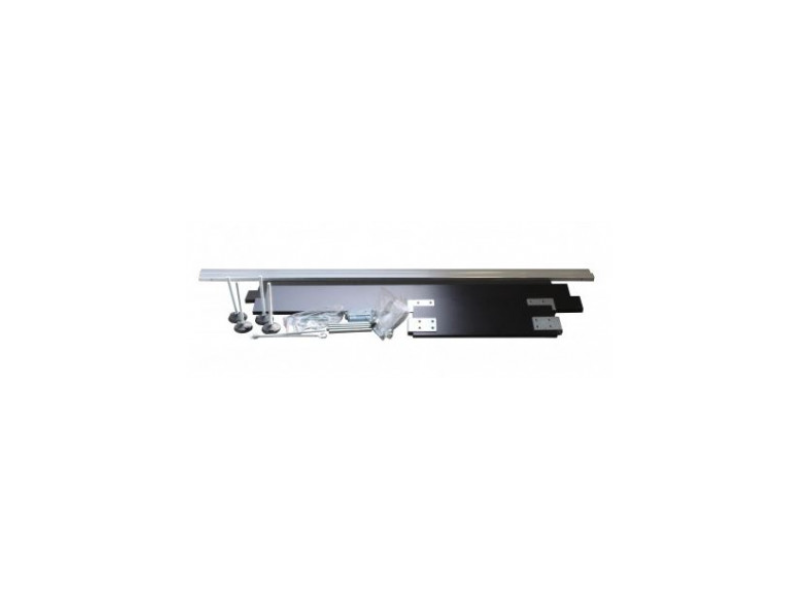

Kit components:

• Reinforcement (profile 40x20 - length 1900 mm) - 2 pcs. The elements constitute an additional stiffening of the entire structure required when using the platform at a height of 2.73 m.
• A long and short toe board (2 pieces of each model) - form the edge of the platform, thanks to which we can be sure that the equipment used during work will not fall off the platform. The toeboards also perform a safety function for the person using the scaffolding.
• Machine foot (4 pcs) - stabilization and levelling of the entire scaffolding.
• Pipe fi 14 (4 pcs) - together with the machine foot form an integral part. It enables the installation of additional load ballast to the scaffolding.
• Clamp (2 pcs) and anchor bolt (2 pcs). The clamp is screwed to the scaffolding profile together with the anchor bolt. It is used to attach the scaffolding to the facade/wall of the building. The anchor bolt has a thread along its entire length, which allows for the adjustment of the distance between the scaffolding and the wall.

Mounting elements included in the set:

• Washers M-8 - 6 pcs
• Washers M-12 - 8 pcs
• Nuts M-12 - 8 pcs
• Butterfly nuts M-6 - 6 pcs
• Butterfly nuts M-8 - 6 pcs
• M-8 screw 45 mm - 2 pcs
• Hooks M-6 - 4 pcs
