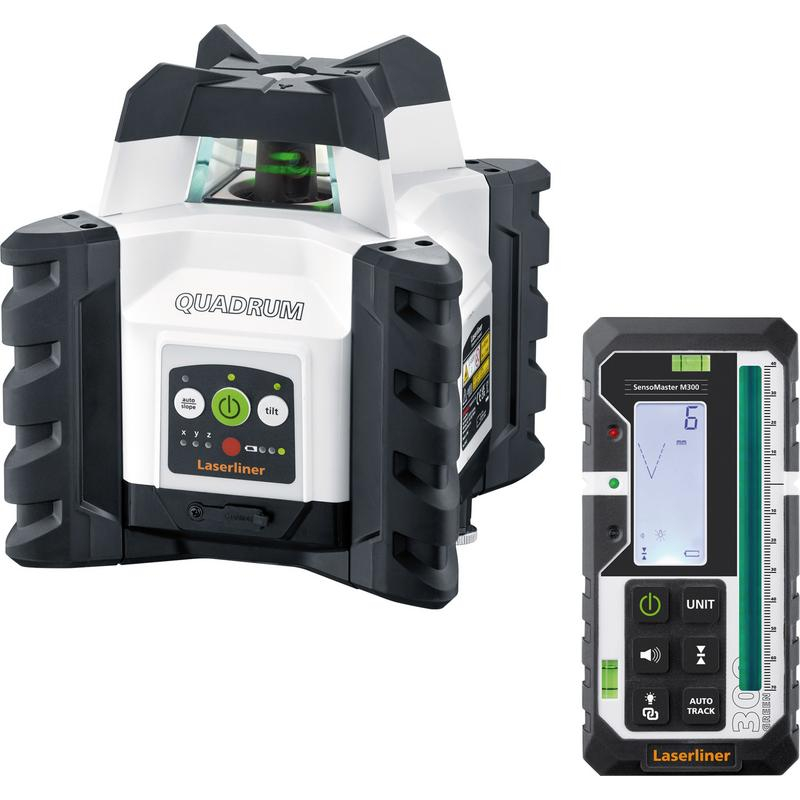

Draper 053.650A Laserliner 053.650A Quadrum Compact GT M300 S Rotary Laser - Code: 32740 - Pack Qty 1

This fully automatic and extremely easy-to-operate rotary laser is ideal for precise alignment work on the horizontal and vertical plane. The green laser technology provides outstanding visibility. Thanks to the 5/8” thread integrated into the side of the casing for mounting to tripods, the laser can be positioned so that it can also be used for precise vertical alignment. The plumb points projected at the top and bottom act as a reliable reference to ensure the horizontal plane and the plumb of a foundation. In the tracking function, the rotary laser aligns itself to the millimetre receiver. In the process, the receiver automatically sets the laser beam to the zero position by means of radio transmission. A vertical plane can be aligned with the tracking function, for example to place a room divider. The tracking function also makes horizontal levelling easier, quicker and more precise in many applications, for example on terrace and exterior work or when preparing foundations. This is particularly helpful in projects that require high precision and efficiency. Supplied with universal mount, remote control, two high capacity pack Li-ion batteries, network/charging device (including an international adapter), a USB-A to USB-C cable, and a carrying case.

1 x Laserliner Quadrum Compact GT M300 S Rotary Laser
1 x Universal mount
1 x Remote control
2 x HighCapacityPack (Li-Ion)
1 x Batteries
1 x Network/charging device incl. international adapter
1 x USB-A to USB-C cable
1 x Carrying case

Horizontal/vertical levelling: Yes
Hand receiver mode: Yes
Scan mode: Yes
Spot mode: Yes
Motorised slope function: Yes
Manual slope function: Yes
Precision sensor levelling: Yes
Battery and mains operation: Yes
Anti-Drift-System (ADS): Yes
Plumb laser up (90° reference beam): Yes
Plumb laser down: Yes
Tilt warning function: Yes
AntiShake: Yes
Self-Levelling Range: ± 4°
Accuracy: ±0.15 mm/m
Levelling: horizontal / vertical automatic
Laser Wavelength: 515 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Protection Class: IP 66
Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time: approx. 20 hours
Battery Recharging Time: approx. 4 hours
Dimensions (W x H x D): 170 mm x 188 mm x 170 mm
Weight: 1575g

Stock no: 32740

Part no: 053.650A

Barcode: 4021563740178
