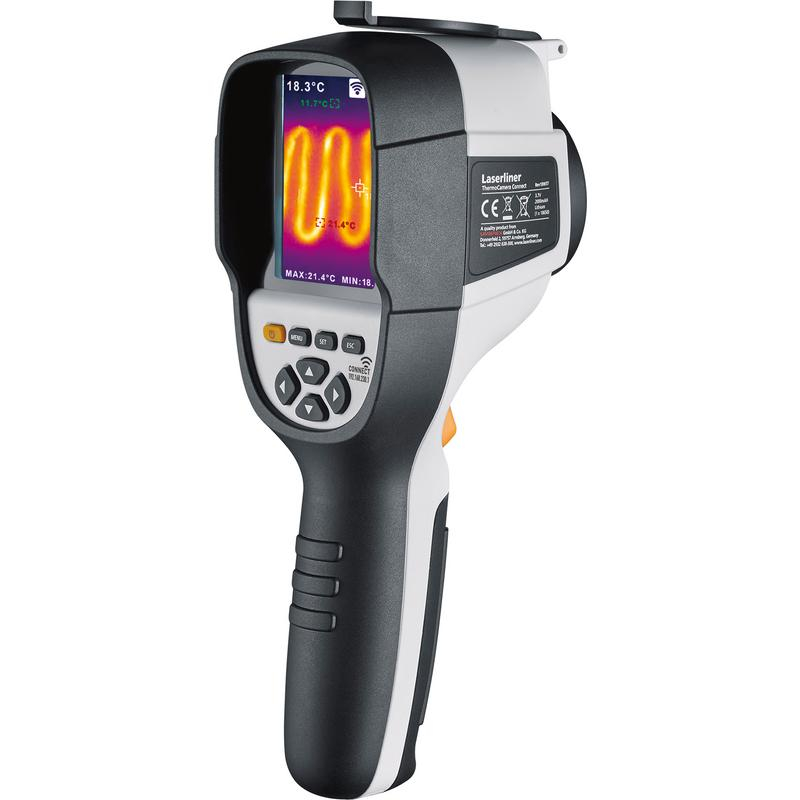

Draper 082.086A Laserliner 082.086A Compact Thermal Imaging Camera - Code: 32758 - Pack Qty 1

The compact thermal imaging camera is suitable for applications in the electrical engineering, construction and mechanical engineering industries. An infrared sensor allows fast and easy measurements for evaluating temperature profiles. The analysis can be carried out with an infrared image, a digital image and a MIX image. The MIX image offers the user an easily comprehensible and highly comprehensive representation of the temperature profiles by combining digital and infrared images. Supplied with, Li-ion battery pack, battery charger, international adapter, USB charging cable, and carrying case.

1 x Laserliner 082.086A Compact Thermal Imaging Camera
1 x Li-Ion battery pack with power supply / battery charger and international adapter
1 x USB charging cable
1 x Carrying case

Thermal image: Yes
Digital camera: Yes
MIX image: Yes
Min/max/centre measurement value: Yes
Screen Type: 3,2" TFT display
Sensor Type: Uncooled microbolometer
Data transfer: Yes
Adjustable emissions level: Yes
Measured Variable: Infrared temperature
IR sensor resolution: 220 x 160 pixels
Display Resolution: 240 x 320 pixels
Spectral Range: 8-14 µm
Image Frequency: 9 Hz
Thermal Sensitivity (NETD): 70 mK @30°C
Accuracy Infrared Temperature: ± 2°C or 2% of measured value
Infrared Temperature Resolution: 0.1°C
Power Supply: Li-ion battery pack 3.7V / 2.0Ah / 7.4Wh Micro USB 5V / 2A
Operating Time: approx. 3 hours
Battery Recharging Time: approx. 4 hours
Dimensions (W x H x D): 105 mm x 223 mm x 90 mm
Weight: 389 g (inc. Batteries)

Stock no: 32758

Part no: 082.086A

Barcode: 4021563706730
