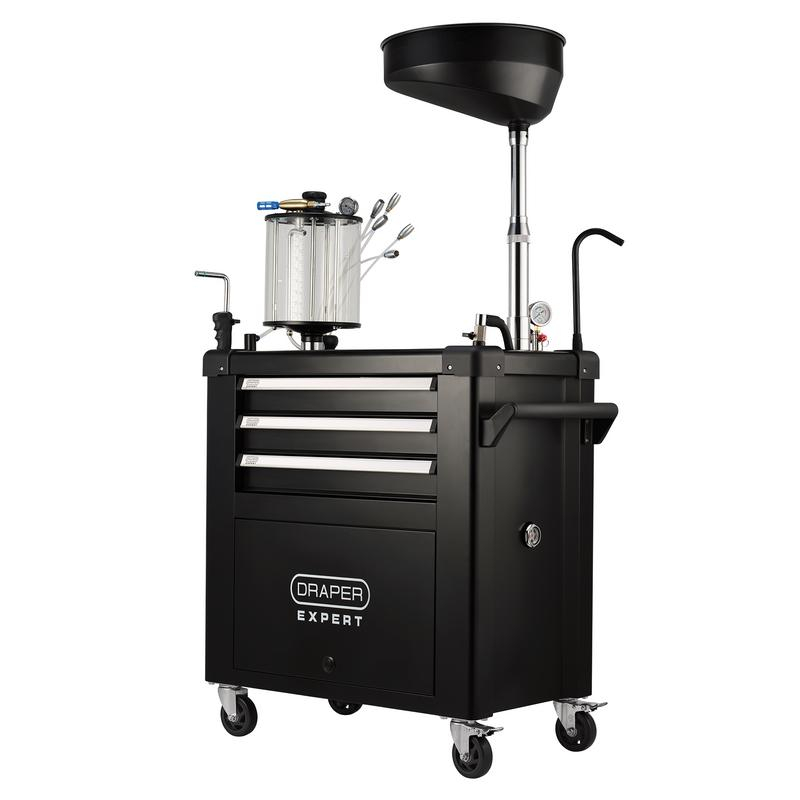

Draper Expert Mobile Oil Service Station & Chamber and Oil Drain Pan - OD100SS - Code: 30205 - Pack Qty 1

This mobile oil service station is designed for draining waste engine and gear oil by either gravity or suction on a range of vehicles, using workshop air for vacuum extraction and emptying. It features an auto one-way valve to prevent oil backflow, five oil suction probes suitable for most car engines, and a 61-piece oil filter cup wrench and drain key set. The unit offers push lock door access to a large 100L tank, adjustable drainage pan height from 1.43-1.56m, durable steel construction with plastic protection for long service life, and a high-quality flexible hose for easy retraction and storage. An additional pressure gauge is located in the cabinet for visibility, and the three drawers keep tools close to hand. The clear measuring tank allows extracted oil to be inspected and measured before draining into the waste tank. Includes 10L viewing chamber and 20L drain pan. Compatible with a 1/4" BSP coupler. For use with Stock No. 30286.

1 x Draper Expert Mobile Oil Service Station, 100L
1 x Draper Expert Chamber and Oil Drain Pan

Oil tank capacity: 100L
Working pressure: 7-8bar
Pressure gauge: 0.18-0.2Mpa
Recommended working oil temperature: 40-60℃
Viewing chamber capacity: 10L
Drainage pan capacity: 20L
Drainage pan adjustment height: 1,430-1,560mm
Drainage pan diameter: 415mm
Dimensions: L 831 x W 483 x H 930mm
Weight: 85kg

Stock no: 30205

Part no: OD100SS

Barcode: 5059482114656

Item weight: 101.8kg
