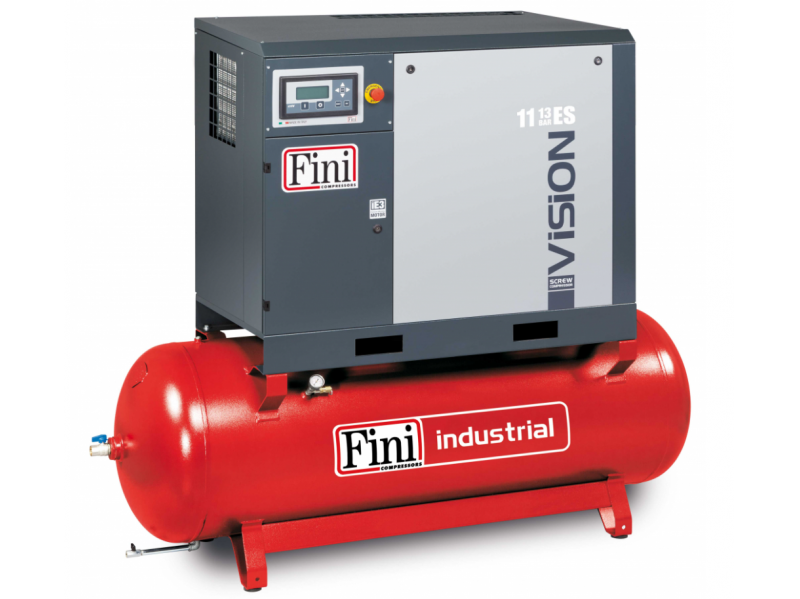

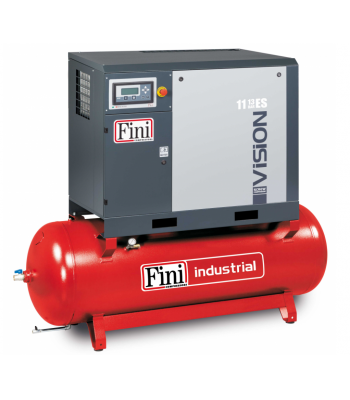

FINI NEW VISION Rotary Screw Air Compressor 11-13-500 ES, 11kW, L/MIN 1150, 13 BAR F-V83SQ92FNM801

FINI NEW VISION Rotary Screw Air Compressor 11-13-500 ES, 11kW, L/MIN 1150, 13 BAR F-V83SQ92FNM801
Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Next Working Day Delivery (if ordered by 12pm))

Nationwide Delivery
Order now for delivery on
Tue 30th Apr 2024

Quote Ref: @107843

Product ID: FINI_F_V83SQ92FNM801

Barcode: 8017750271736

Related Products: See all related products

Manufacturer: Fini

Price: (£7,005.00 ex VAT) £8,406.00 (inc VAT)

8406.00 2024-05-27
Got a question? E-mail a friend
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
FiniCategoriesProducts

FINI NEW VISION 11-13-500 ES, 11kW, L/MIN 1150, 13 BAR F-V83SQ92FNM801

HIGHLIGHTS:

  • Exceptionally quiet operation
  • Integrated refrigerated dryer and dual oil removing filters for dry, oil free compressed air ( less than 0.1 micron oil content)
  • Mounted upon a suitably sized air receiver to form a complete system in one unit, simplifying installation and saving valuable space
  • Advanced EasyTronic IV controller provides monitoring, full programmability, diagnostics and advanced connectivity features
  • High output compressor element produces more air from less power
  • Durable and reliable in the toughest conditions
  • Compact and attractive cabinet
  • Fitted with advanced RotEnergy synthetic coolant, for reduced service, less wear and lower power consumption
  • Convenient service access with all components reached through the front panel for simple maintenance and ease of installation
  • Drive system with POLY- V drive belt for longer life and improved drive efficiency
  • The compressor element and all other major components are designed and produced at the FINI factory ensuring the highest quality with advanced design
  • Available with maximum pressure from 8 Bar to 13 Bar

ETIV Advanced electronic controller

The advanced controller fitted to the VISION range has been specifically developed to guarantee optimum monitoring and regulation of the compressors operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.

Controller with multi-function backlight LCD graphic display, the menu is drop down type. In the main screen display indicates:

  • Working pressure (offload and load pressure)
  • Oil temperature
  • Compressor status (stand-by, offload, load)
  • Fan status (off or on)
  • Date and time
  • Hours remaining before maintenance
  • Inverter use percentage

Remote monitoring (on demand)

GSM/GPRS/Ethernet/WiFi module (for on-line compressor status, remote assistance, connection
with PC, Smartphone and Tablet, connectivity in a multi compressor station).

Master/slave function

It is possible to connect up to 4 compressors for managing the workload in
such a way to equalize the hours dynamically changing set pressures of the various compressors.

High efficiency Motors

The design of the VISION compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency.

SPECIFICATION

kW - 11
Hp - 15
L/min - 1150
m3/h - 69
c.f.m - 41
Bar - 13
Psi - 189
Receiver Size - 500Lt
dB(A) - 63
Outlet G (") - 3/4"
Product L x W x H (mm) - 1980 x 700 x 1670
Kg - 425
Volt - 400
Type (Oil-Free/ Lubricated + Electric/Petrol) - Electric, Three Phase

Brand: Fini

Identifier: F-V83SQ92FNM801
