Flex BED 163 Three Speed Drilling Unit with Anchor or Vacuum Attachment (240 Volt Only)

This is now a "Discontinued Product"

(Item No Longer Available)

Replacement Product!

This product has been replaced. Click on the button below to access it.

Flex BED69 Complete Edge Drilling Unit for Edges in Facing Slabs (240 Volt Only)

Flex BED 163 Three Speed Drilling Unit with Anchor or Vacuum Attachment (240 Volt Only)

Discontinued! This item has been discontinued.

Quote Ref: @3973

Product ID: FLX_BED163

Manufacturer: Flex

Warranty: 2 years

Price: (£1,736.18 ex VAT) £2,083.42 (inc VAT)

Available at checkout!

Categories Products

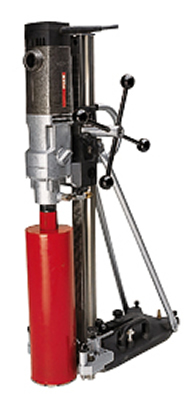

Flex BED 163 Three Speed Drilling Unit with Anchor or Vacuum Attachment

The 2,000 Watt strong, three-geared drill BSW 2123 C combined with the BD 160 stationary drill stand - that is what a light, mobile unit looks like for a one-man operation
The drill bits are are cooled directly by the central water supply
The seals can be replaced quickly from the outside
The combination shaft with two connections, G ½" inside, 1¼" UNC outside, makes the connection of FLEX drill bits possible
The water collector ring prevents water damage
Mechanical 3-Speed Gearbox: With optimum speed graduation
Safety Clutch: Offers protection if the core drill is jammed
Bubble Level: For accurate unit alignment
Drill Centering Indicator: With drill center indicator
Drill Bit Connections: Combination shaft with two connections, G ½" (internal), 1¼" UNC (external)
Effective Drill Bit Length: max. 450mm
Quick Release Core Bit Ring: 1¼" UNC
Slanted Drilling: Up to 45°
Hand Crank: Attaches to both sides
Mounting For Water Collection Ring: For drill Ø up to 130mm
GFCI Operator Protector Circuit Breaker: Integrated in cord
Quality Shut-Off Carbon Brushes: Protects the motor against damage

Technical Specifications
Power Input	2,000 watts
Power Output	1,400 watts
Speed Under Load 1st Gear	450 rpm
Speed Under Load 2nd Gear	1,080 rpm
Speed Under Load 3rd Gear	2,100 rpm
Tool Fixture	G ½" (internal), 1¼" UNC (external)
Diamond Drill Bit Ø 1st Gear	80mm - 162mm
Diamond Drill Bit Ø 2nd Gear	35mm - 80mm
Diamond Drill Bit Ø 3rd Gear	12mm - 35mm
Surface Area Occupied by Stand	430mm x 200mm
Weight (complete unit)	18Kg
Weight (machine)	8.5Kg

Standard Inclusive Equipment: Open-Ended Wrench SW 24, Open-Ended Wrench SW 36, GFCI Operator Protection Circuit Breaker in Cord

Brand: Flex

Identifier: BED 163
