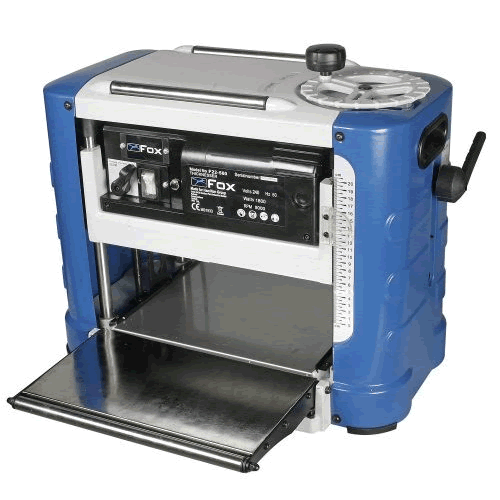

Fox F22-560 13" Portable Thicknesser (240 Volt Only)

Fox F22-560 13" Portable Thicknesser (240 Volt Only)

• Parading first-class levels of functionality and finesse the Fox F22-560 13" portable thicknesser is the obvious choice where demands are focussed on capacity and power
• The 1000 watt (2.5hp) motor is undaunted by the demands of a 330mm x 150mm planing capacity, powering the 2-blade block at a no load speed of 8,000 rpm with a thicknessing performance up to 3mm depth of cut per pass it also offers two individual feed rates 6 metres per minute (fast) for initial passes and rapid thicknessing results, and 4 metres per minute (slow) for a premium surface finish
• Fox's typical polish and panache evidences itself in the finer detail
• A large recessed handwheel makes depth adjustment a piece of cake, faciIitating a thicknessing range of 4.2mm up to 150mm in height
• The cutter head can be locked into place to eliminate any movement, and thus ensure on a consistent surface finish
• To optimise material handling, the F22-560 features rollers on both the fold-down in and outfeed tables and also integrally in the upper casing to assist with multiple passes
• Similar attention has been paid to portability and operator needs, recessed carrying handles, a versatile 100mm/65mm chip collection port enabling connection to both standard and smaller Fox workshop extraction systems, and a tool holder conveniently located under the pivoting table
• Technical Specifications:
• Motor: 1,800 watts (240 Volts)
• Maximum Speed (no load): 8000rpm
• Number of Blades: 2
• Feed Rate No.1 (slow): 4 metres per minute
• Feed Rate No.2 (fast): 6 metres per minute
• Maximum Width: 330mm
• Minimum Width: 140mm
• Maximum Height: 4.2mm-150mm
• Cutting Depth per Pass: 3mm
• In Feed/Out Feed Table Size: 360mm (W) x 195mm (D)
• Extraction Port: 65mm/100mm
• Weight: 38.5kg
