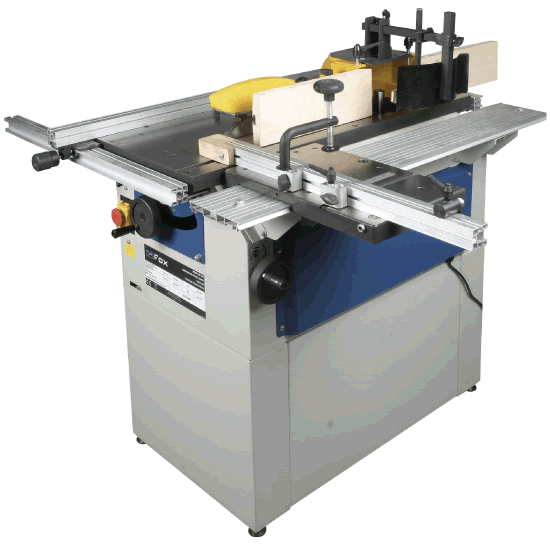

Fox F60-001 Saw and Spindle Moulder (240 Volt Only)

• Ideal for the workshop where space is at a premium, this new combined saw and spindle moulder offers two high quality machines in one package.
• The table saw has it's own independent 1,100 watta quiet running motor wich drives the 8" blade at 4750rpm.
• Offering a maximum depth of cut of 60mm @ 90º, this saw is more than adequate for the home or small professional workshop.
• A single handwheel operates both the rise and fall and the tilt of the blade. The generously sized 900 x 410mm table gives excellent support to larger work pieces and the sliding carriage features a 0º - 45º mitre gauge and hold down clamp for the precise cutting of mitres and other difficult pieces.
• Included is a rip fence which can be locked off anywhere along the front rail with micro precision setting.
• Both table top and sliding carriage are cast iron, making this unit very stable and virtually vibration free in use.
• The spindle moulder shares the sliding carriage with the table saw making it very efficient when cutting and profiling end grain.
• Powered by a high torque 1500 watt motor, the spindle moulder features a 30mm spindle and will accept a cutter block up to 150mm in diameter.
• A full 83mm of travel on the spindle gives this machine great versatility in its applications from small mouldings to larger tasks such as panel door work.
• The supplied wooden fence is fully adjustable and features a combined cutter guard and clamp to keep the work piece against the cutter ensuring a superior finish.
• This system features 100mm dust ports on both the machine and the spindle moulder fence to allow efficient dust and chip extraction at source.
• A well designed machine that represents excellent value for money and can be attached to the separate planer thicknesser to form the Fox Combi Machine.
• Technical Specifications:
• Saw Power ~ 1,100 watts
• Speed ~ 4,750rpm
• Blade diameter ~ 200mm
• Maximum cut depth @ 90º ~ 60mm
• Table size ~ 900 x 410mm
• Spindle Moulder Power ~ 1,500 watts
• Spindle Speed ~ 6,500rpm
• Spindle Diameter ~ 30mm
• Spindle Travel ~ 83mm
• Weight ~  120kg
