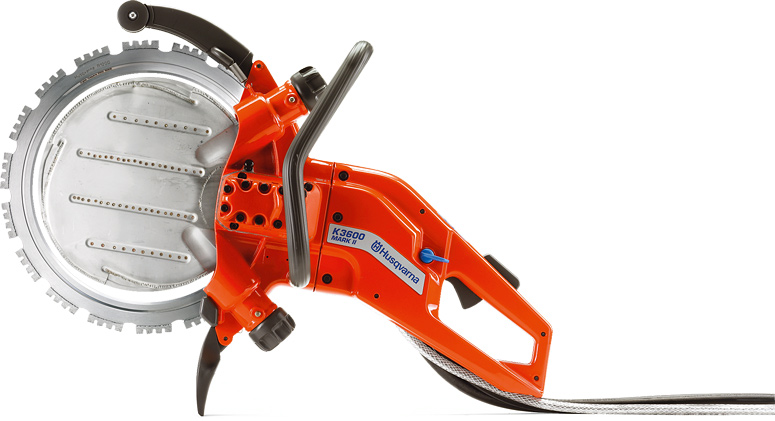

Husqvarna K3600 Ringsaw Mk11 Hydraulic Ringsaw

Part No: 968424101

The Husqvarna K 3600 is a cutter with performance and features that make it unique. The eccentric drive of the blade means the cutting depth is a huge 260 mm. Its unique power / weight ratio and its hydraulic drive make for a highly efficient and manoeuvrable handheld cutter. It is well suited to a wide range of applications, including both brick and reinforced concrete. The combination of large cutting depth and high capacity without set-up time make the K 3600 one of the most productive tools in the business.

Cutting ring

The cutting ring on the K 3600 is fixed and supported by four roller bearings at the periphery of the blade. Two of these are guide runners that run in the slot on the side of the ring, pressing it forward and into a drive wheel, which gives better control and longer service life.

Cutting depth

With the peripheral drive, the cutting depth is not limited by a blade spindle, and you can cut far deeper than with a traditional cutter with a centre-driven blade. The cutting depth of 260 mm (10") is sufficient to cut through a normal wall from one side.

Light cutter with high power

Hydraulics is an excellent way to transfer high power without the actual cutter becoming heavy.

Good working conditions

Running a hydraulic cutter means you avoid fumes and high noise levels, so they are ideal for both in- and outdoor jobs.

Other Features

    * Hydraulic gear motor
    * Peripheral drive
    * Adjustable front handle
    * Automatic start for water flow
    * 260 mm cutting depth with 350 mm blade, thanks to unique eccentric drive.
    * Stable support rollers for easier adjustment and blade change.
    * Sealed drive and roller system.
    * Adjustable front handle with integrated, convenient water adjustment.
    * Large lower spray guard and integrated support foot.
    * Low weight and ergonomic design.
    * Supplied with grease gun, to simplify greasing of the guide rollers.
    * Simple service and cleaning.

Technical Data

Engine

Power output - 4.3 kW / 5.8 hp(I)
Hydraulic flow, max - 40 l/min / 10 gal/min
Hydraulic pressure - 140 bar

Cutting equipment

Max cutting depth - 260 mm / 10 inch
Blade diameter - 350 mm / 14 inch

Dimensions

Weight (excl. cutting equipment) - 8.1 kg / 17.4 lbs

Vibration

Vibrations front handle - 4.3 m/s²
Vibrations rear handle - 6 m/s²
Daily Vibration Exposure (A8) - 2.12 m/s²
Daily Vibration Time (Time factor) - 1 h
Daily Vibration (Aeqv) - 6 m/s²

Sound and noise

Sound level - 99 dB(A)
Guaranteed sound power level, LWA - 111 dB(A)
