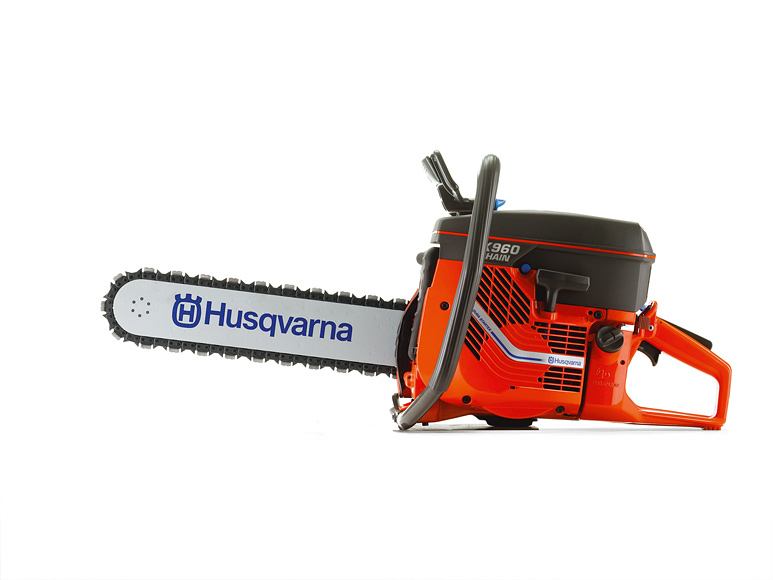

Husqvarna K960 Petrol Chain

Part No: 966850601

The Husqvarna K 960 Chain is a petrol-driven power cutter with a diamond plunge. It is based on the popular K 950 machine, and includes all of its technical and ergonomic advantages. With a concrete plunge saw you get better access in tight situations. You get better control and you avoid gyro forces. You get sharp corners, without over-cutting, and you can make up to 390 mm deep cuts from one side. This makes the concrete plunge saw a perfect complementary cutter, where the first cuts are made with a traditional blade cutter.

DEX

DEX, the new Dust Extinguisher System that gives cleaner cutting with less water usage and slurry.

The K 970 Chain

The K 970 Chain can make openings as small as 11 cm, and is perfect for openings with irregular shapes.

Active Air Filtration™

Active Air Filtration, centrifugal air cleaning in three stages, increases product life and extends service intervals.

SmartCarb™

Built-in automatic filter compensation, maintains high power and lowers fuel consumption.

Other Features

    * Patented, dust sealed starter unit, where the return spring and the pulley bearing are sealed. DuraStarter™ also includes a starter cord with greatly increased durability. This makes the starter virtually maintenance free, giving a further boost to the reliability of our cutters.
    * EasyStart ensures 50% easier starting by reducing the compression in the cylinder during starting.
    * Self-lubricating clutch bearings for extended work life.
    * Easy to tension the chain without tools.
    * Our anti-vibration system reduces vibrations in the cutter handles, so they are more comfortable to hold and can be used for longer periods. To enable the user a comfortable operating position and to reduce strain, the distance between the handles is large. The handles and the short engine body mean the user always stands close to the machine, for easier handling and control.
    * Makes 390 mm (15") deep cuts from one side.
    * Large spray guard.
    * Specially designed hand protection.

Technical Data

Engine

Power output - 4.5 kW / 6.1 hp(I)
Cylinder displacement - 94 cm³ / 5.7 cu.inch

Cutting equipment

Bar length - 350 mm / 14 inch
Max cutting depth - 390 mm / 15 inch

Dimensions

Weight (excl. cutting equipment) - 9.4 kg / 20.7 lbs

Vibration

Vibrations front handle - 5.3 m/s²
Vibrations rear handle - 5 m/s²

Sound and noise

Sound level - 103 dB(A)
Guaranteed sound power level, LWA - 116 dB(A)
