Price: (£516.66 ex VAT) £619.99 (inc VAT)

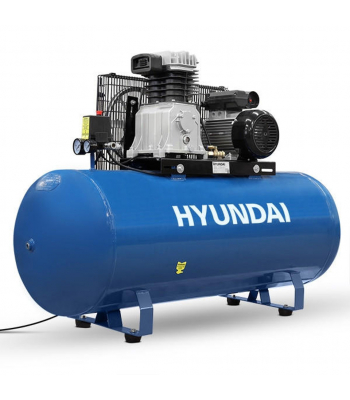

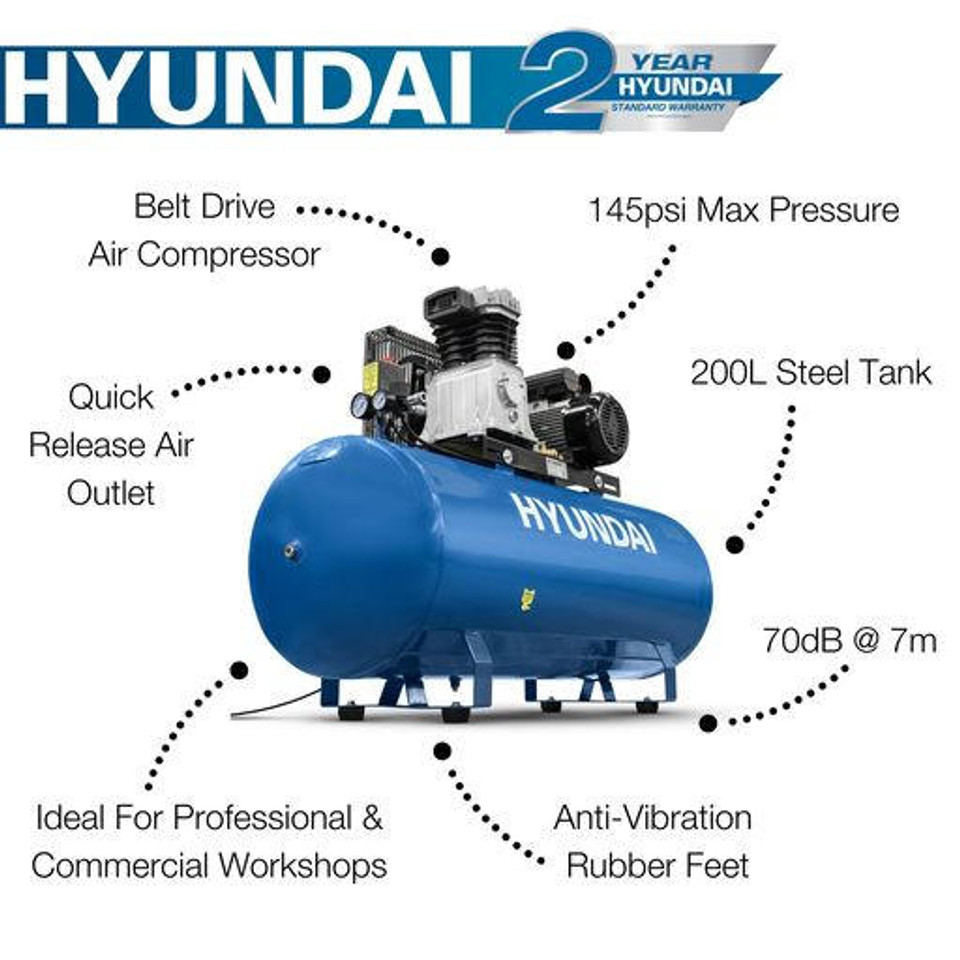

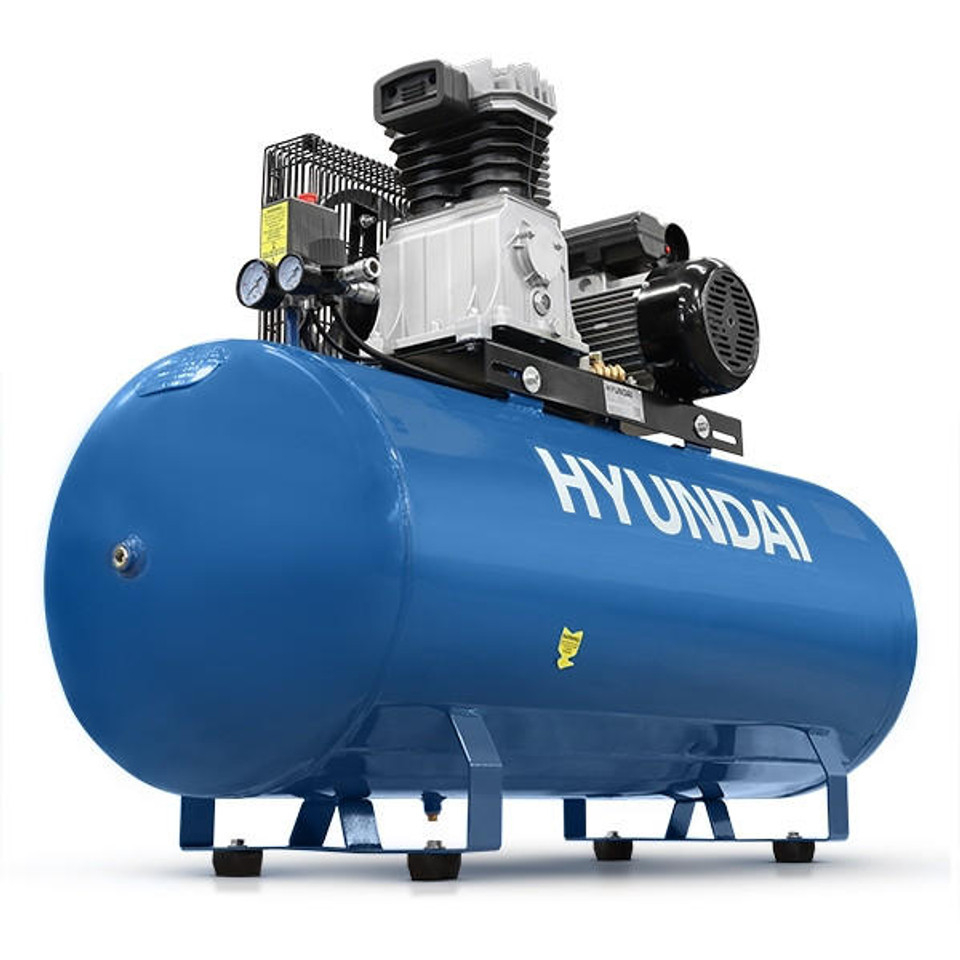

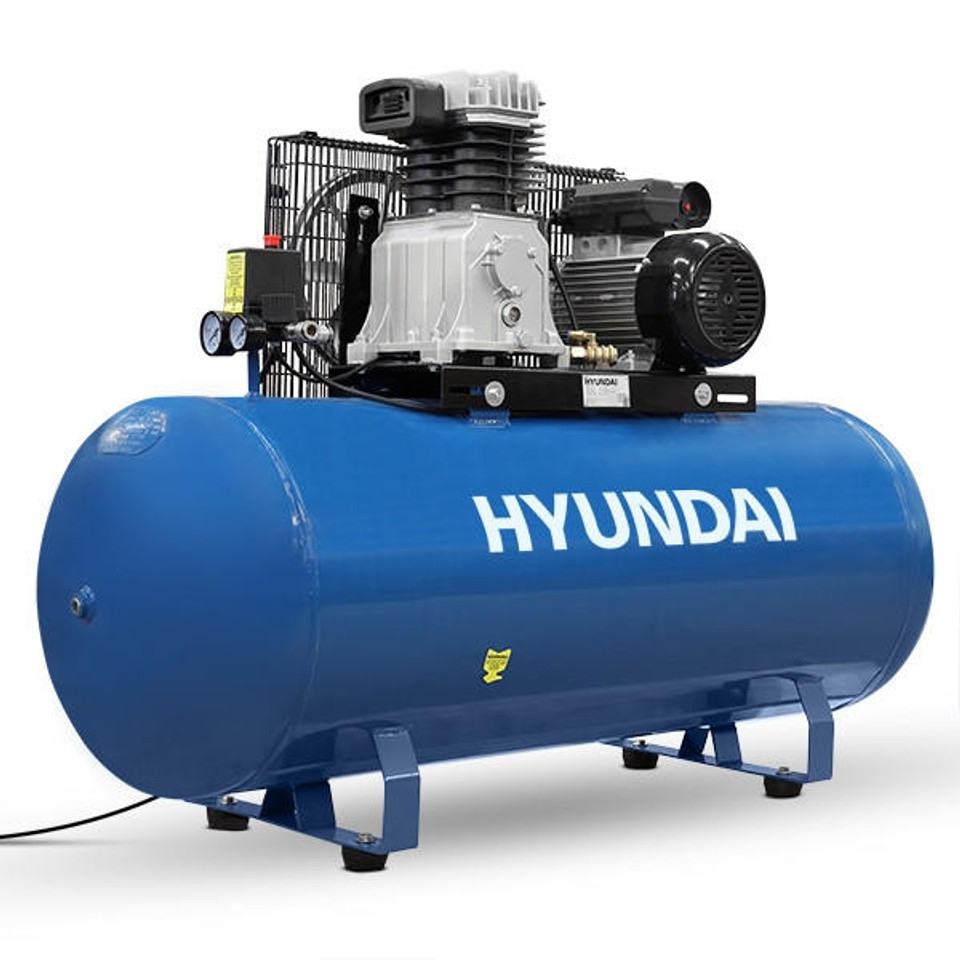

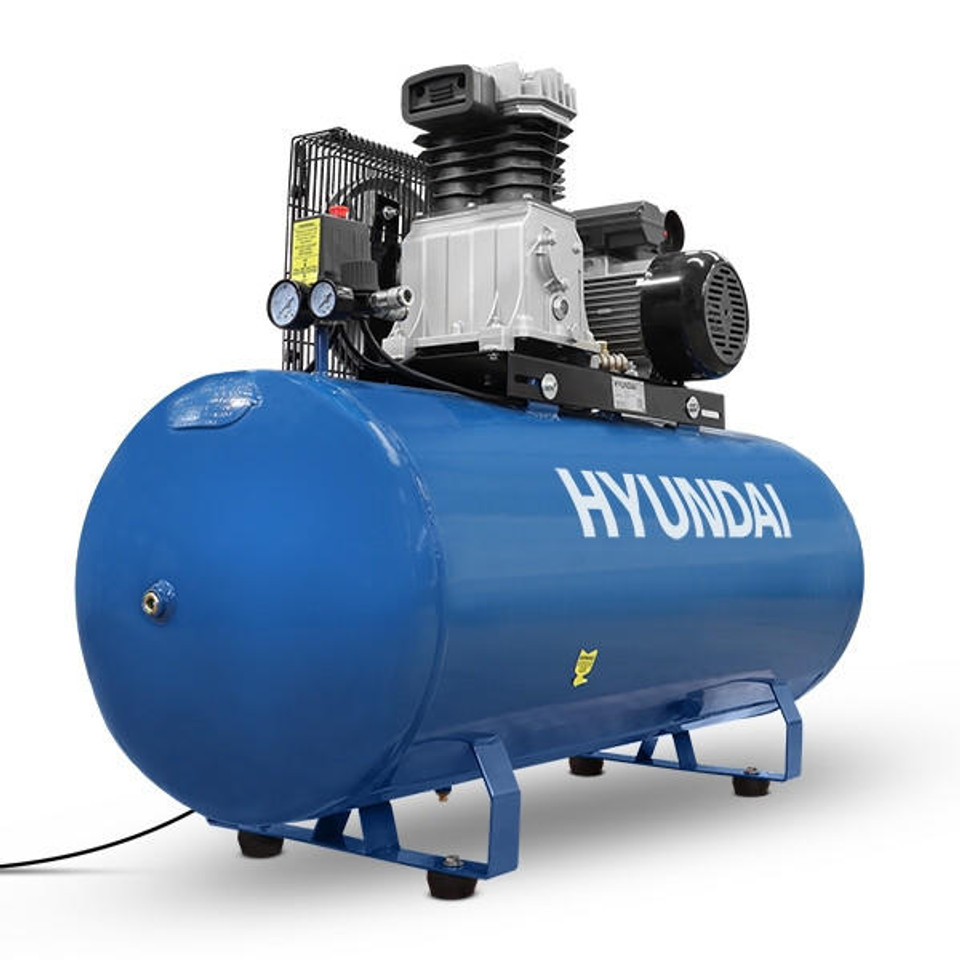

619.99 2025-09-10The HY3200S is slow running belt drive air compressor for professional and commercial users, built to tackle the toughest requirements on a daily basis. Equipped with a large 200L rolled steel air tank, this heavy-duty air compressor has the capacity needed for powering mechanical, industrial and workshop tasks. It's powered by a 3hp 230v electric motor and benefits from a belt drive system, which provides efficient, quiet and cool performance.
The HY3200S produces a maximum pressure output of 145psi / 10bar with a displacement of 14cfm, making it the ideal choice for professional users who have demanding air-powered tools. With a tough cast iron twin cylinder block, this air compressor is built to last and conforms to all of the latest European Standards.

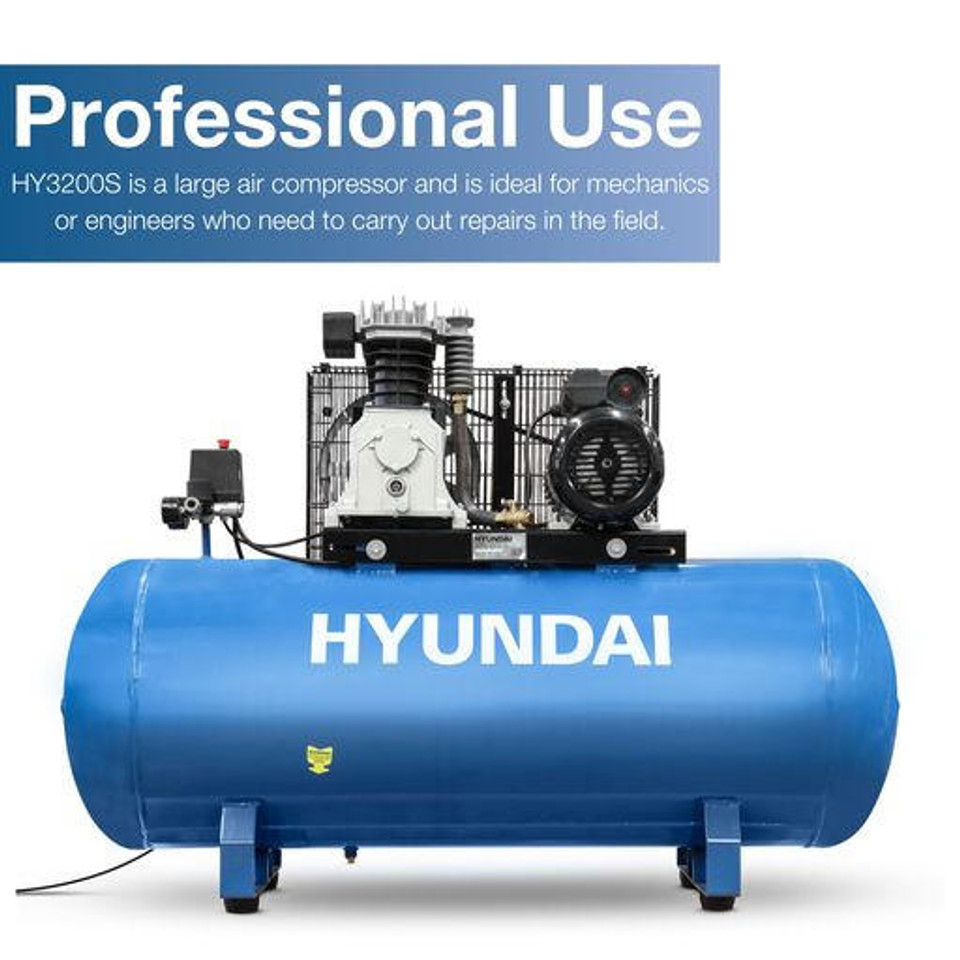

With a net weight of 110kg, the HY3200S is a large air compressor and is ideal for mechanics or engineers who need to carry out repairs in the field.
Compressor Care: Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. Air and moisture should always be released using the drain valve located on the bottom of the tank.
HY3200S compressors have a 2.2kw/2200w/3hp single phase, 230v 50hz electric motor. They are supplied with a 13amp 3 pin plug. The 13 amp plug will be fine for normal DIY use. However, if the air compressor is being used for more than a 50% duty cycle (motor running for more than half the time) it may be advisable to use a blue 16 amp plug.
The compressor should always be plugged directly into the wall socket. If extension leads are used, the voltage drop may occur and this will increase the amperage which may cause the 13amp fuse to overload and blow. This may also be a problem in outlying rural areas where the mains voltage is below 230v, in which case a 16amp blue plug is recommended.
Model | HY3200S |
---|---|
Start Method | Switch |
Fuel/Power Source | Electric |
Cable Length (m) | 1.4 |
Stationary / Wheeled | Stationary |
Drive Type | Belt Drive |
Tank Capacity (L) | 200 |
Tank Material | Steel |
Cut-In Pressure (psi/bar) | 116/8 |
Cut-Out Pressure (psi/bar) | 145/10 |
Discharge Pressure (psi/bar) | 145/10 |
Max Pressure (psi/bar) | 145/10 |
Air Flow FAD (L/min) | 300 |
Air Flow FAD (CFM) | 11 |
Air Displacement (L/min) | 396 |
Air Displacement (CFM) | 14 |
Air Outlet Connection | Euro Quick Release |
Outlet Pressure Regulation Type | Adjustable |
Phase | Single |
Voltage | 230 |
Rated Power (w) | 2200 |
Motor Power kW/hp | 2.2/3 |
Pump (RPM) | 1050 |
Motor Speed (RPM) | 2850 |
Frequency (Hz) | 50 |
Noise Level @ 7m (dB) | 75 |
Gross Weight (kg) | 115 |
Net Weight (kg) | 105 |
Fully Assembled Dimensions (H x W x L) (mm) | 980 x 500 x 1310 |
Packaged Dimensions (H x W x L) (mm) | 1020 x 520 x 1360 |
Product Type | Air Compressor |
Warranty (years) | 2 (domestic), 1 (commercial) |
Model EAN | 747150287775 |
In The Box | HY3200S Electric Air Compressor, User Manual |
Covered by Hyundai 2 year domestic / 1 year commercial warranty.
Full spares are available to maintain your air compressor for years to come.
