Hyundai HY40-2 40mm / 1.5” Lightweight Portable Petrol Water Pump HY40-2

This is now a "Discontinued Product" - (Item No Longer Available)

Replacement Product!

This product has been replaced. Click on the button below to access it.

Hyundai HY40-4 4 Stroke Petrol Clean Water Pump

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Discontinued! This item has been discontinued.

Quote Ref: @72261

Product ID: hyun_HY40_2

Please use this reference number at any time when dealing with us so that we can identify the product you are looking at as quickly as possible.

(Please note this reference number will not be of any use to any other party except us.)

Manufacturer: Hyundai

Warranty: Click here for info

Warranty & Replacements

To activate your UK warranty please complete the Product Warranty Registration form.

All warranties need to be registered within 30 days, failure to register within this timeline will result in the warranty reverting to the manufacturers 12 month warranty and will not be extended to the Hyundai 3 year Platinum warranty.

All of our products are covered by a manufacturers warranty covering both faulty materials and faulty workmanship, it does not cover general wear and tear or damage. This excludes products or parts of products that are consumables or that become faulty to due to general wear and tear.

In terms of a faulty item being replaced, fixed or refunded, Hyundai Power Equipment is only a reseller of any goods or services received through our website, therefore an individual product's warranty would be subject to the supplier's terms and conditions and will be maintained by the company of origin. Hyundai Power Equipment will be happy to help you contact those companies who will maintain your products individual warranty, however, we are not responsible for any product directly.

To see full Hyundai warranty information click here

Price: £125.00 150.00 inc VAT)

Error! Sorry there has been a problem adding your items to the cart.
Your item(s) have been successfully added to your cart. Go to your shopping cart

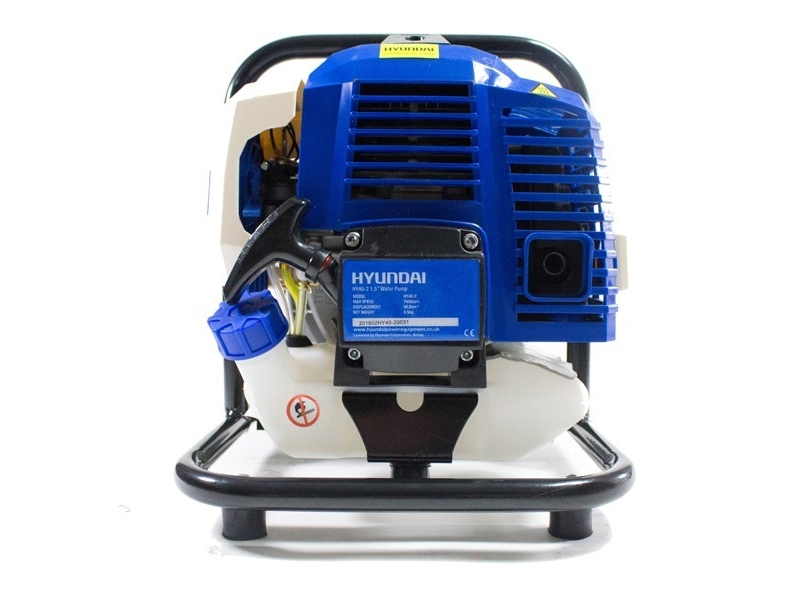

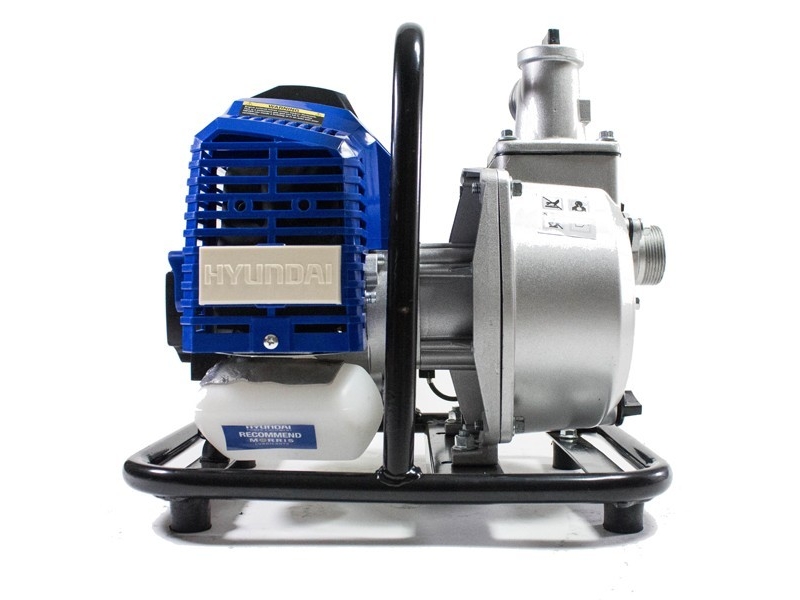

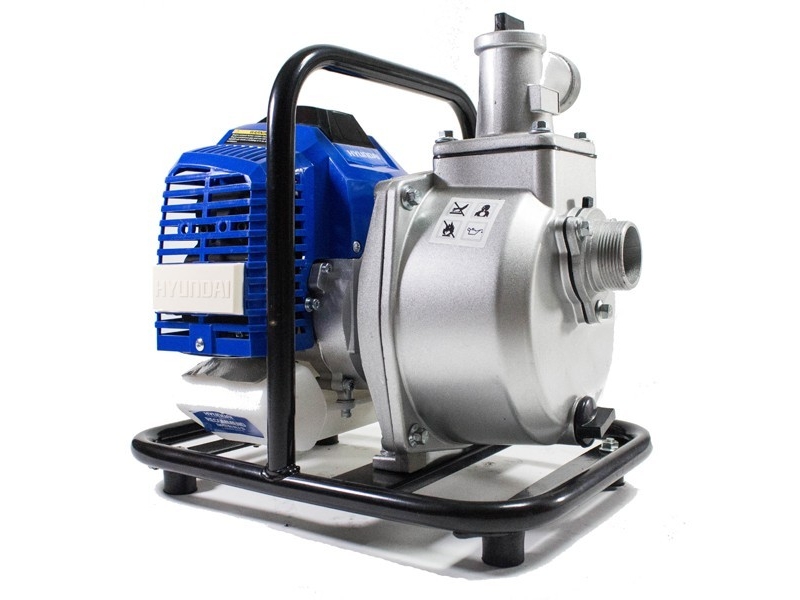

Hyundai HY40-2 40mm / 1.5” Lightweight Portable Petrol Water Pump HY40-2

The HY40-2 is one of the lightest and most portable petrol water pumps on the market, weighing only 10kg it's easy to move around and store making it ideal for most domestic and professional uses. Powered by the 2-stroke recoil/pull start Hyundai 50.8cc Euro 2 petrol engine with excellent fuel consumption.

This Hyundai pump is built from high quality materials to ensure a long lasting and reliable performance. The HY40-2 is capable of transferring 250L/min and has a 40mm / 1.5" inlet and outlet.

The pump has a total head of 35m and a maximum suction head of 8m. Please see the diagram below explaining the different meanings of head when used in reference to a water pump. The ‘head’ is also referred to as ‘lift’ by some manufacturers.

 Petrol Water Pump

Housed within a rugged open frame, with a convenient carry handle, it's easy to move and store but this frame also provides protection from potential damage to the pump and engine itself.

Before using your pump, make sure you have your suction hose and layflat hose ready. The suction hose is used between the water source you are looking to move and the pump, and is more sturdy and strengthened to stop it being ‘sucked’ flat while in use. The layflat hose is used on the outlet of the pump and usually sits ‘flat’- hence the name. Try to use the minimum amount of suction hose possible and place the pump as close to the water as you can.

Simply attach the strainer (the plastic ‘cage’ included with the pump), to the end of the suction hose, which prevents debris being sucked into the pump and causing damage to the impeller. Then, using the provided collars, attach the other end of the suction hose to the inlet on the pump. Use the other collar to attach your layflat hose and run it to then are you want the water to be discharged to.

Mix your 2-Stroke semi-synthetic oil and unleaded fuel together at a 40:1 ratio, as instructed in the manual and fill to approximately 80% full in the tank, which allows for any expansion.

This pump is self priming, however in order to create a vacuum and start the lifting process you need to fill the pump housing with water. You can do this by removing the  the cap on the top of the pump casing and filling with fresh water, then simply follow the starting procedure in the manual to begin pumping. Ensure that there are no air leaks on the suction side, as this will prevent the pump from priming.

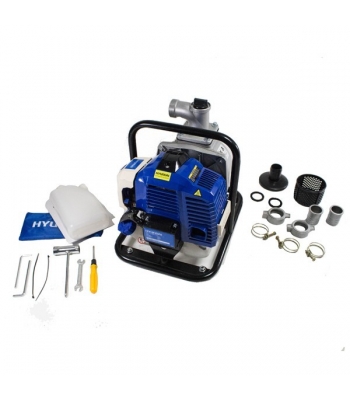

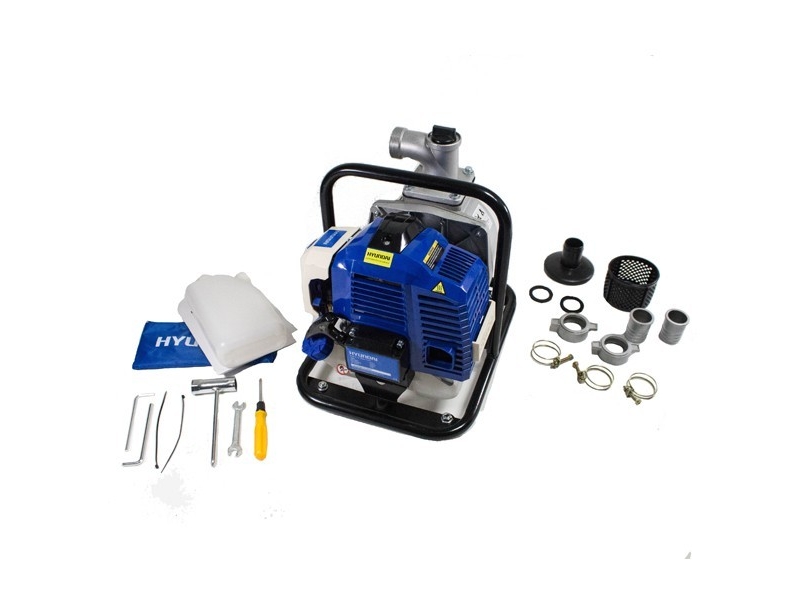

In the box: HY40-2 pump, hose fitting kit, suction filter, 2-stroke fuel/oil mixing bottle, tool kit.

All Hyundai petrol water pumps are supplied with a 1 year Hyundai warranty.

Engine Type Single cylinder, 2-stroke, air cooled
Engine Size (cc) 50.8cc Euro 2 Emissions, 2-Stroke
Fuel Tank (L) 0.80
Fuel Type Unleaded petrol with 40:1 mix of 2-Stroke Semi-synthetic Oil
Noise Level (dB) 111.00
Maximum Power (kW) 1.8kW
Starting Method Recoil Pull Start
Inlet (inches / mm) 1.5 / 40
Outlet (inches / mm) 1.5 / 40
Maximum Flow Rate (L/min) 250.00
Total Head (m) 30-35
Suction Head (m) 8.00
Dry Weight (kg) 10.00
Boxed Dimensions L x W x H (mm) 385 x 300 x 370


Brand: Hyundai

Identifier: HY40_2
