Available (Next Working Day Delivery (if ordered by 12pm))
Quote Ref: @91955
Product ID: HYTIG_160
Manufacturer: Hyundai
Warranty: Click here for info
3 YEAR WARRANTY for all portable power products except:
2 YEAR WARRANTY for Air Compressors, Welders, Robotic Lawnmowers
2 YEAR WARRANTY for all 1500rpm Diesel Generators, subject to service records and maximum 500h/year (See separate warranty terms).
1 YEAR WARRANTY on all 3000rpm air-cooled diesel products, maximum 1000h.
All of the Hyundai products are covered by a manufacturers warranty covering both faulty materials and faulty workmanship, it does not cover general wear and tear or damage. This excludes products or parts of products that are consumables or that become faulty to due to general wear and tear.
In terms of a faulty item being replaced, fixed or refunded, Hyundai Power Equipment is only a reseller of any goods or services received through our website, therefore an individual product's warranty would be subject to the supplier's terms and conditions and will be maintained by the company of origin. Hyundai Power Equipment will be happy to help you contact those companies who will maintain your products individual warranty, however, we are not responsible for any product directly.
Price: (£233.32 ex VAT) £279.98 (inc VAT)

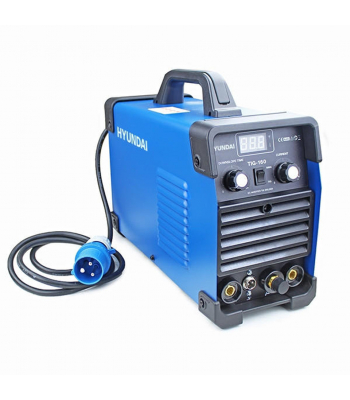

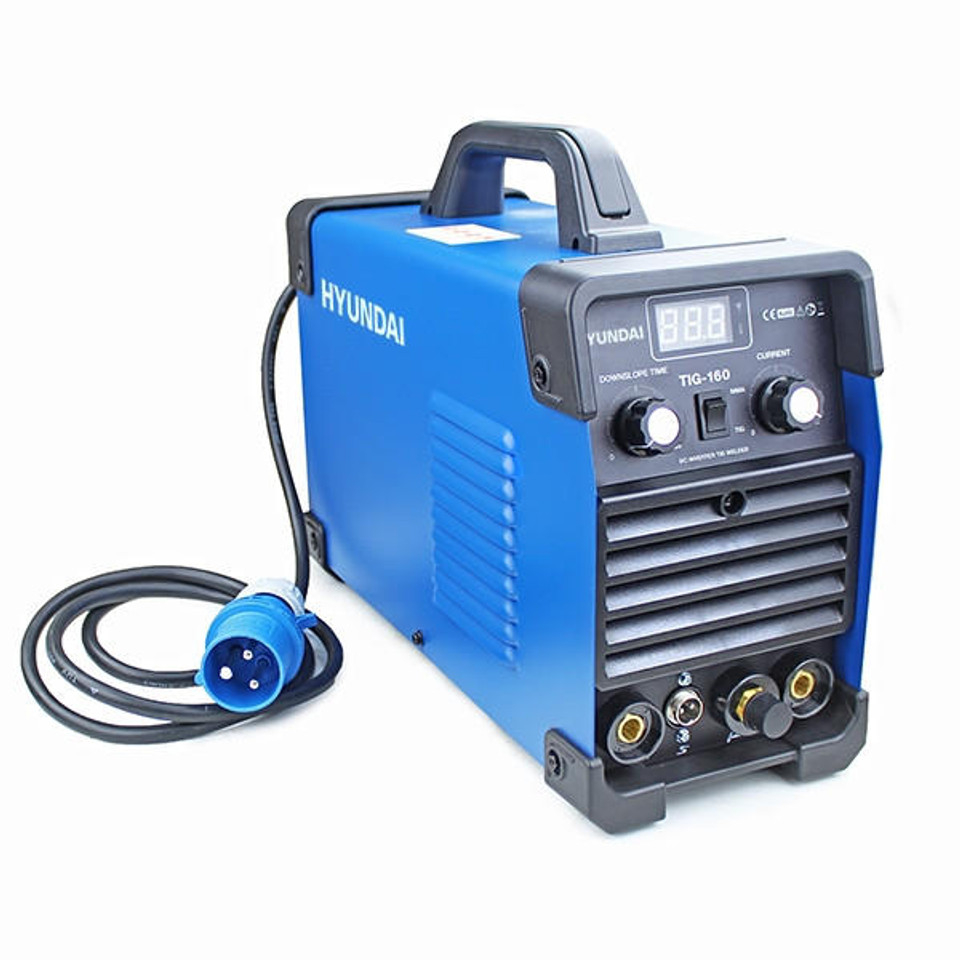

279.98 2024-05-25The HYTIG-160 is a lightweight and incredibly versatile single phase TIG/MMA welder from Hyundai.

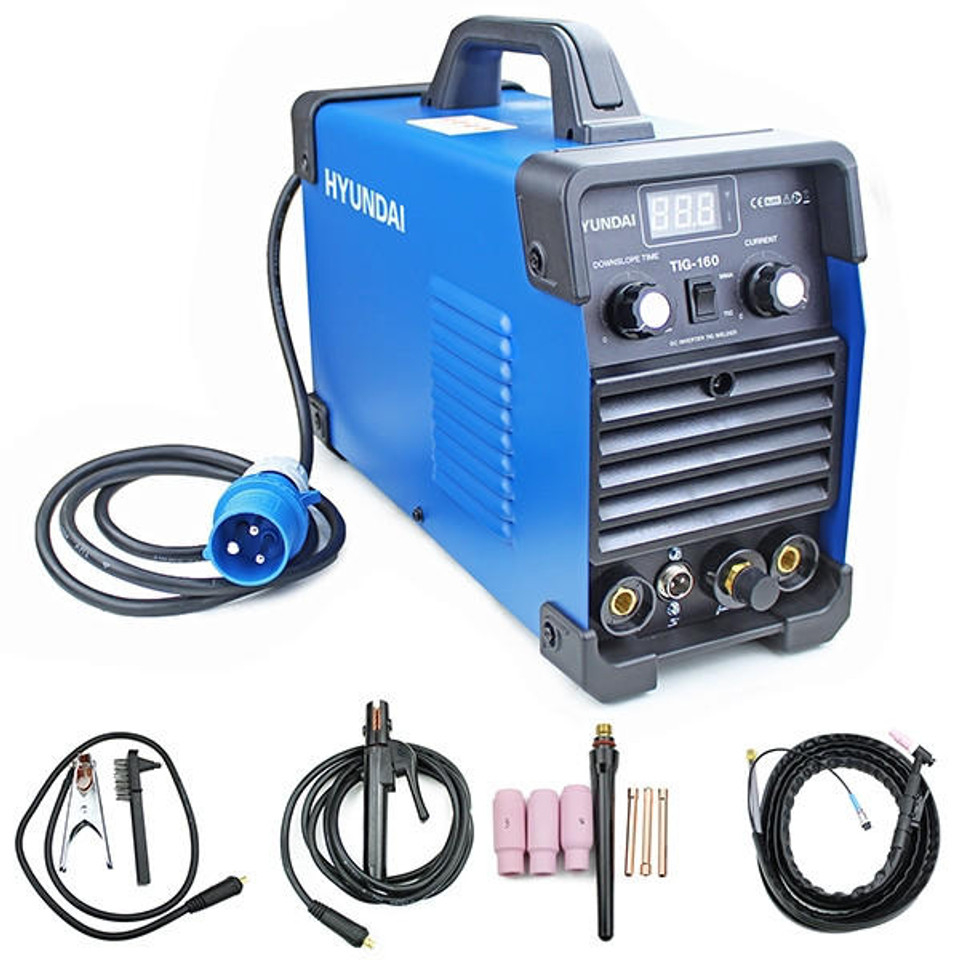

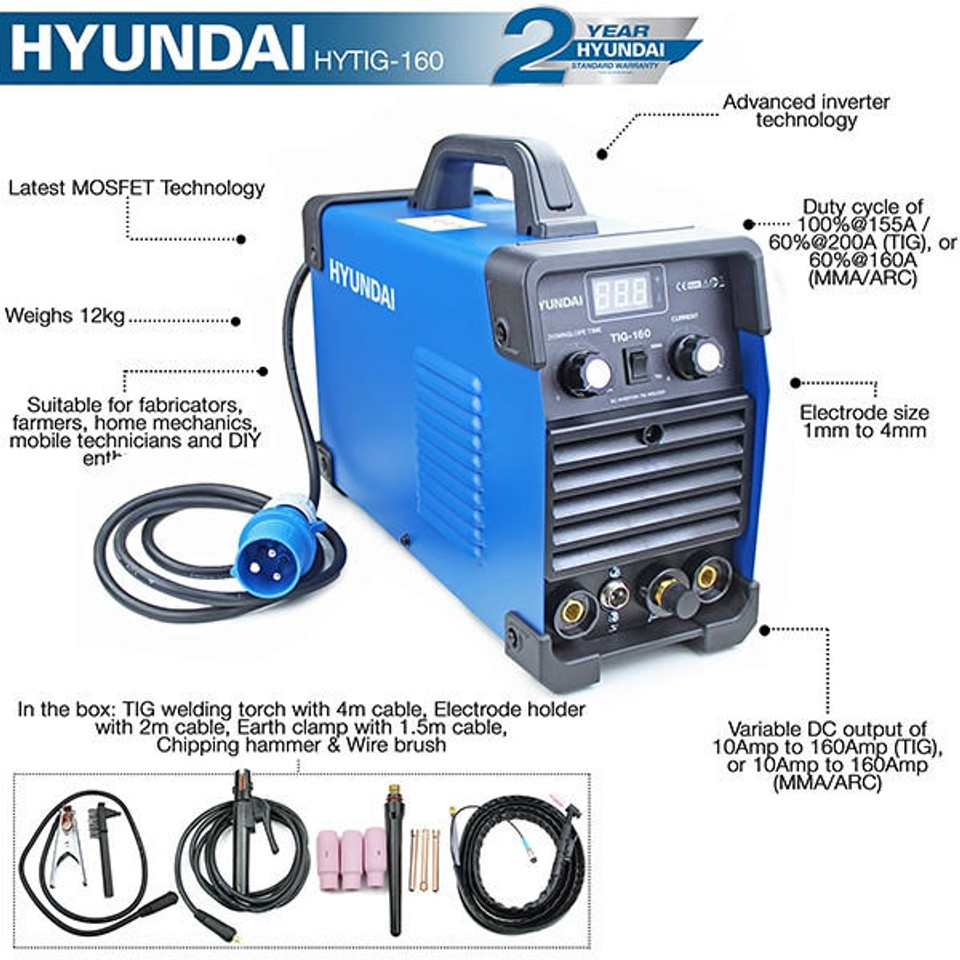

Weighing 12kg, the HYTIG-160 is easy to carry around thanks to its adjustable harness and lightweight pressed steel case with powder coated finish for extra corrosion resistance. Accessories include TIG welding torch with 4m cable, electrode holder with 2m cable, earth clamp with 1.5m cable, chipping hammer and wire brush making the HYTIG-160 extremely cost effective.

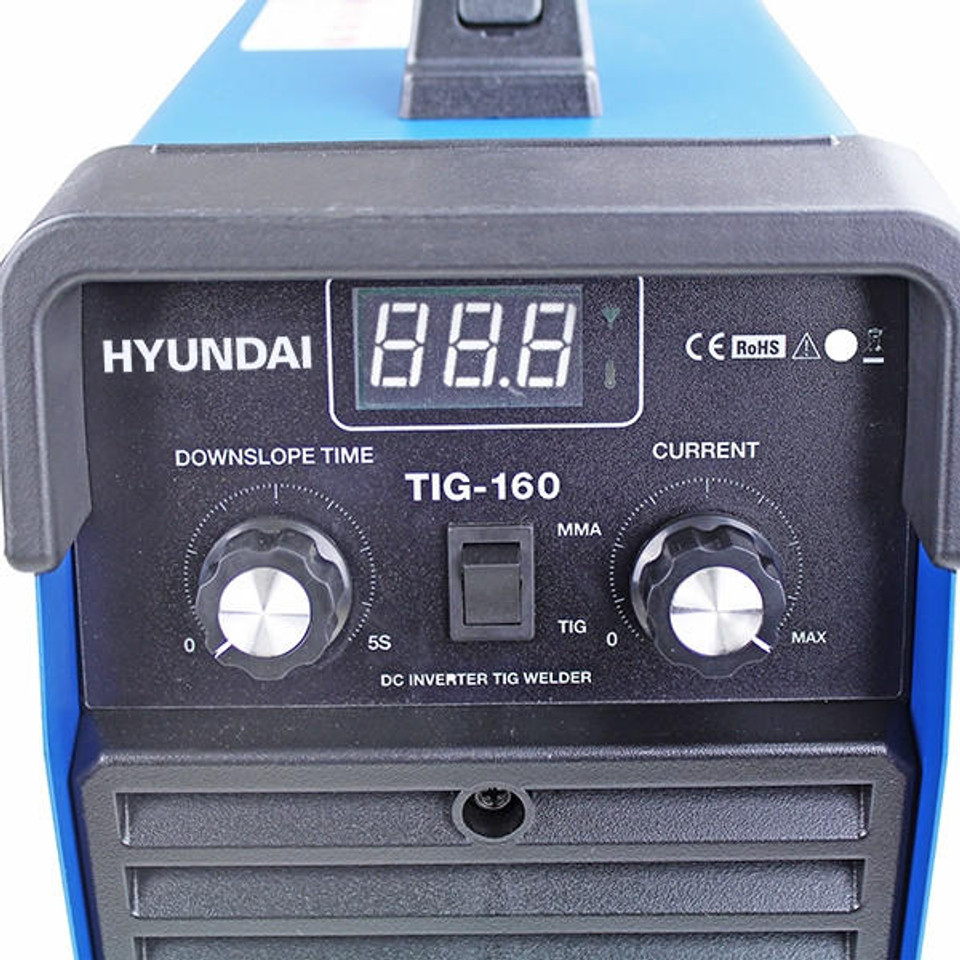

The HYTIG-160 TIG welder features a stepless regulator for infinite variable control of the welding current with a low current facility for effective welding of thinner materials. The welding (output) current of the HYTIG-160 can be regulated within the range of 10-200 Ampere making the HYTIG-200 adjustable to suit welding different materials and thicknesses of steel.
Beware of lower quality models by always checking the ‘Duty Cycle’. Duty cycle is the amount of time, within a 10 minute period the welder can be used, on a given output. For example, our 200A welder has a duty cycle of 60% when used on 200A output (TIG), or 60% when used on 160A output (MMA/ARC). This means it can be used for three and a half minutes in every 10 minute period.
Specification
| Gross Weight (kg) | 12.00 |
|---|---|
| Model | HYTIG-160 |
| Rated Input Voltage | 1P AC 260V, 50Hz |
| Rated Input Power | 4.2KVA |
| Rated Input Current | 18.3A |
| Rated Output Current & Voltage | 160A/16.4V |
| Output Current | 20~160 (TIG) / 20~140 (MMA) |
| No Load Voltage | 70-5 |
| Rated Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.73 (cose) |
| Protection Class | IP21S |
| Insulation Class | F |
| Attenuation Time | 0-5S |
| Reblowing | 3S |
Brand: Hyundai
Identifier: HYTIG-160
