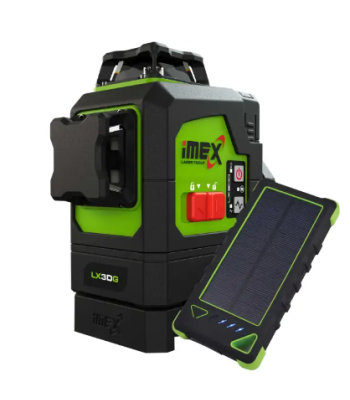

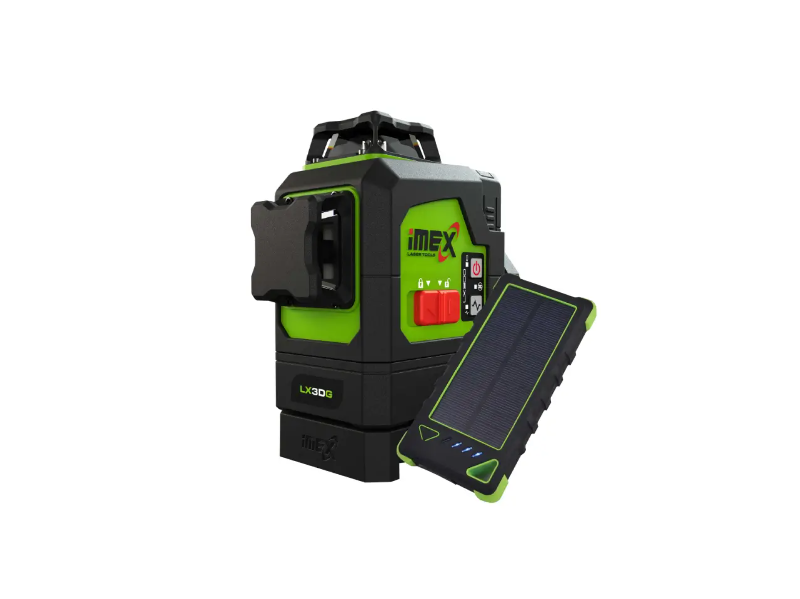

IMEX LX3DG Multiline Laser Level Green Beam Series II

The iMEX LX3DG is a multiline laser level with everything. Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip.

iMEX LX3DG 3×360 hyper Bright Green Beam line laser, self-levelling but also has a lock out function for more architectural applications the laser is powered by a USB Charged 8 Amp Li-on Battery for long run times with an alkaline kit for back up, calibration certificate standard and re calibratable. This unit is great for any indoor set outs, fix out, Plastering, office fit outs and small outdoor set outs and levels.

Features:

NEW PreciseAlign™ fine adjustment to pivot laser
NEW 5.2Ah lithium battery pack – swaps to all LX series II models.
NEW rugged housing with non-slip rubberised moulding

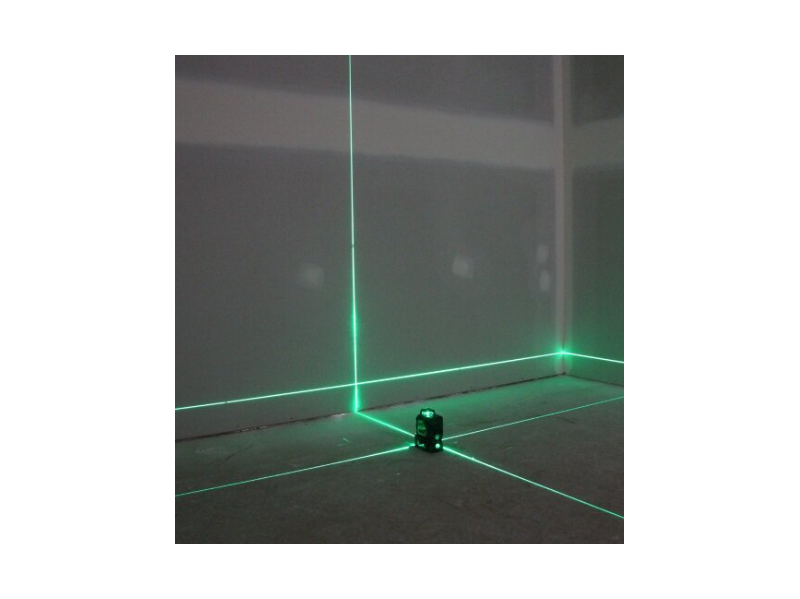

360 degree horizontal and vertical laser lines
Ultra visible green beam technology
Pulse mode to work with laser detector
360 degree turntable and magnetic bracket
Self levelling

iMEX LX3DG Green Beam 360 laser	Specifications
Self levelling range	4° ± 1
Out of level indication	laser blinks on/off
Laser accuracy	±3mm @10m
Laser class	Class 2
Laser wavelength	520 ± 10 nm
Laser distance	20m light-dependent
Laser distance with optional detector	50m
Laser fan angle -lines	H 360° V 360°
Power source	5.2 Ah lithium-ion
Charging type	USB-C
Run time – all beams and dots	6 hrs
Control switch	1 button, pendulum lock
Unit adjustment	Precise align, fine adjustment screw
IP Rating	IP54
Operating temperature	-10° to +50°C
Storage temperature	-20° to +70° C

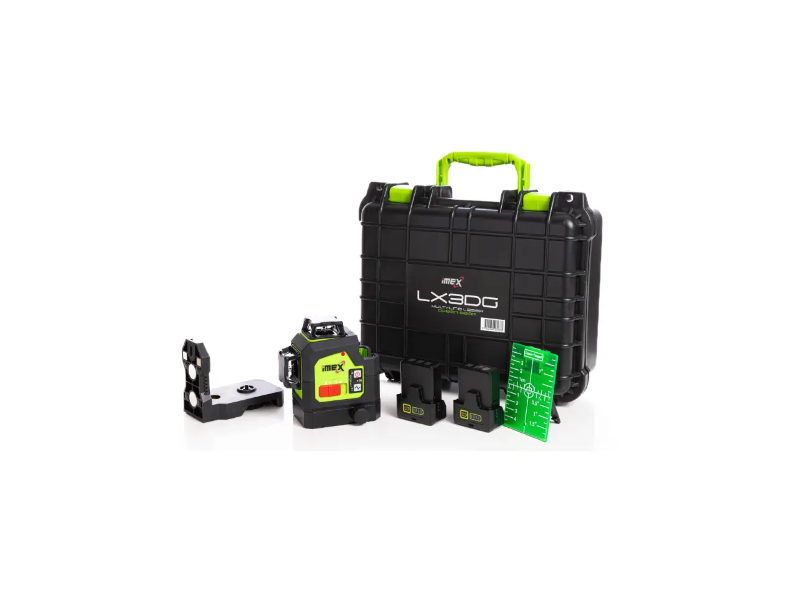

Kit Inclusions	lithium battery, USB-C, alkaline batteries, magnetic bracket operating manual, plastic carry case

Brand: IMEX

Identifier: LX3DG
