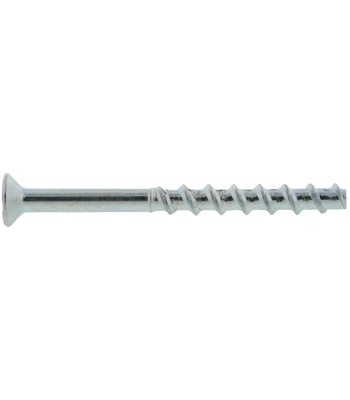

ITW Spit Concrete Screw Tapcon CSK 5x40/5 Countersunk head - per 100 - Code 058770

DescriptionValue
Product Code 058770
Item Description 5X40/5 CSK
Long item description SPIT CONCRETE SCREW TAPCON CSK 5x40/5 Countersunk head

Features

  • Complete range ETA Option 1 can be used in cracked & non -cracked concrete
  • Fire approval
  • C1 seismic approval for Ø6
  • Longer effective thread allows highest performance within the market
  • New patented thread design provides easy setting
  • Adjustable anchor for alignment situations when required without loss of performance
  • Large choice of drilling diameters & lengths
  • 3 anchoring depths for Ø6 & Ø8

Applications

  • Trunking
  • Hanging Services From Ceiling or From Walls
  • Suspended Ceiling
  • Temporary fixings
  • Scaffolding
  • Road Signs
  • Safety Barriers
  • Stadium Seating
  • Pallet Racking
  • M&E
  • Cable trays
  • Window Frames
  • Railings
  • HVAC

Technical Data

DescriptionValue
Diameter Anchor 5 mm
Drill Hole Diameter 5 mm
Anchor Length 40 mm
Head Type Countersunk head
Recess Size TX 25
Head Diameter 12 mm
Setting Torque 8 N-m
Min. Thickness Base Material 80 mm
Min. Embedment Depth 35 mm
Max. Embedment Depth 35 mm
Max. Fixing Thickness 5 mm
Min. Edge Distance 35 mm
Min. Fixing Distance 35 mm
Clearance Diameter 7 mm
Min. Drilling Depth 40 mm
Base Material Colour GREY

Brand: Spit

Identifier: ITW_058770

Product Document Download(s)

  Data Sheet
