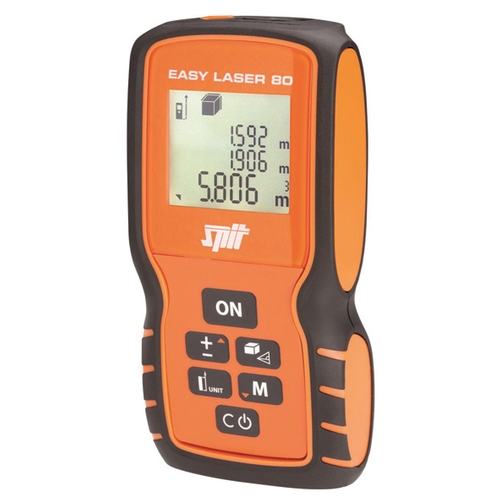

ITW Spit EL 80 - Laser Distance Measurer

Small, handy and extremely easy to use, the EL 80 will save you time and money for all applications on site.

It is extremely versatile and can be used for calculating area, volume, indirect height and speeds up setting out at the touch of a button.

Applications

• Surface area measurement
• Volume measurement
• Indirect height measurement (pythagorus)

Features & Benefits

• Ergonomic and lightweight
• Single or continuous measurements (tracking)
• Precise measurements - plus or minus 1.5mm over full 80m range
• Reliable - self-calibrates before each measurement
• Pythagoras function (2 and 3 points) - for measuring indirect or inaccessible distances
• Flip-out end-piece - automatic detection, for measuring from corners or edges
• Robust housing (IP 54) - protects against dust and water spray
• Setting out function - gives a constant visual and audible signal
• Plus and minus function
• Battery indicator
• Memory of last 10 results
• Illuminated screen
• Datum / measuring point indicator
• CE Marked

Technical Specification

• Dimensions: 117 x 57 x 32mm
• Weight (with battery): 0.13kg
• Measuring Range: 0.05 - 80m
• Measuring Accuracy: +/- 1.5mm
• Units of Measurement: Metres / Feet / Inches
• Temperature Range: -10°C to +50°C
• Laser Type: 635nm, <1mW
• Laser Class: Class 2
• Batteries: 2 x AAA / LR03 / 1.5V
• Battery Life: Up to 3,000 measurements
