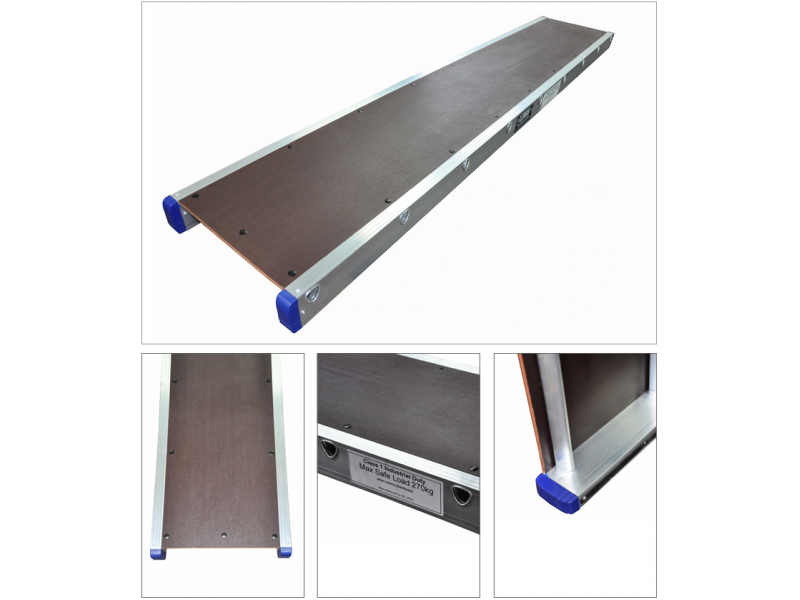

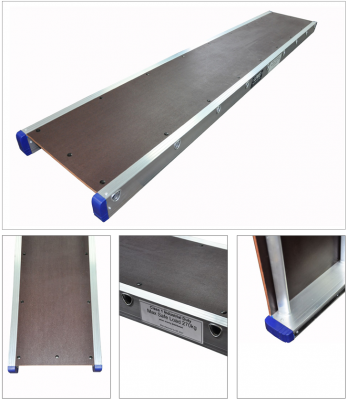

LEWIS Heavy Duty 450mm Wide Staging - LSB

Product Information

  • Non slip phenol faced plywood
  • All aluminium Struts under side and stile.
  • Available in 450mm & 600mm
  • Heavy duty end protectors for the most demanding sites
  • Very sturdy and superior quality light weight staging board
  • Two width sizes, 450mm and 600mm and a range of sizes from 2.4m up to 6m Long.
  • The Board is connected to the tower, via overlapping. The board must over lap on each side by a minimum of 1m
  • The total weight on the board has to be even distributed
  • To be used as a walk way not for storage of material.

Technical Information

CODE LENGTH WIDTH WEIGHT
LSB24 2400mm 450mm 13.5kg
LSB30 3000mm 450mm 15kg
LSB36 3600mm 450mm 17.5kg
LSB42 4200mm 450mm 22kg
LSB48 4800mm 450mm 27kg
LSB54 5400mm 450mm 30kg

Further information on the LEWIS Staging Boards

LEWIS have developed a staging board that they believe is one of the finest on the market today. Not only is the staging board made from lightweight aluminium material (very easy to move around), the surface is made from non-slip phenol faced plywood (to give you that extra foot grip in wet weathers), tough and strong with aluminium Struts under side and stile (can hold up to 30 stones – this is the equivalent of two painters or decorators with their cans of paint and brushes).

The edges are sealed with toughened industrial rubbers to protect the board from water, ants and small insects getting into the aluminium slat during storage. These heavy duty end protectors come in very handy in protecting the aluminium ends of the board for when you are working on demanding sites.

The LEWIS Staging Board is quite a beautiful piece of work; Clean, smooth to the touch, carefully manufactured in our London Factory, light to carry, durable, portable, weather resistance, multi-purpose usage, ease of storage, these are just some of its features.

Physical Attributes

The Staging Board comes in two width sizes – 450mm and 600mm. The length starts from 2400mm all the way up to 6000mm. Because their staging boards are made from tough lightweight materials, they only require support at each end. None is required in the middle. Light but tough.

As we mentioned above the LEWIS Staging Board has multipurpose usage. Now down to some practical usage.

Spanning or straddling more than one scaffolding tower

We will we start from the most popular or obvious down to the least obvious.

The majority of customers buying the LEWIS Staging Board are those who have bought their Aluminium Scaffolding Towers from us. They usually buy the staging board to straddle two or more aluminium Towers. In this case, not only is the board been used as a bridge between two or more towers, it also serves as a walkway.

Now a very important point. If you are using the board as a straddle and a walkway between two towers, you must have a properly constructed and secured handrails on either side of the board going from one scaffolding tower to the other. The same minimum of 1 metre from working platform to top of tower applies.

The staging boards are designed with non slip rubber slips at the bottom. This holds the board in place and stops it from slipping when used to span towers.

Used as part of a run

Lets say you are a building contractor and you are fixing or replacing the tiles or claddings on a building and on this job your men require between ten to twelve towers to go round the building, you can use staging boards to connect all the towers together and that way, you end up with one continuous run. This means that any of one of your men can move from one end of the tower to the other without having to always come off the tower. By using staging boards, this can also reduce the number of towers that you will require on this job.

Painting the outside of a building

The staging board used with trestles will enable you cover a wider area of the building in any one go, thereby saving you time and getting the job done a lot quicker than if you were using one of our aluminium step ladders.

Not for Home or DIY Use unless you are a trades man – high hedges

Another area that you can put the staging board to use is if you have a garden with high hedges. If you have already purchased two or more trestles, you can use the staging board together with the trestles to sort out the high hedges. That way, you can cover a wider area of the hedge in one go - saving you valuable time especially on a weekend. This means that you get the job done in no time.
