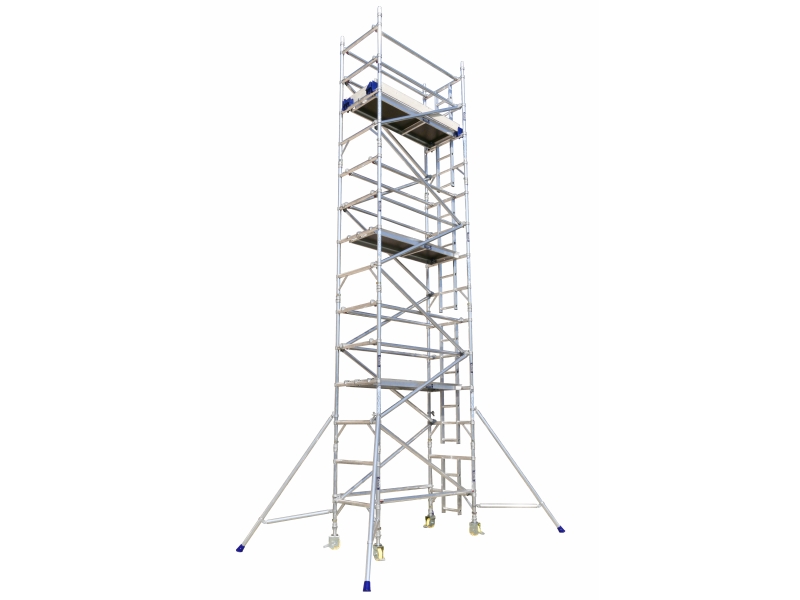

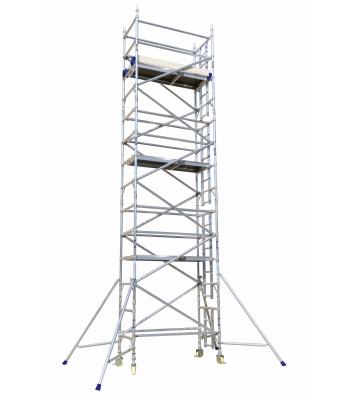

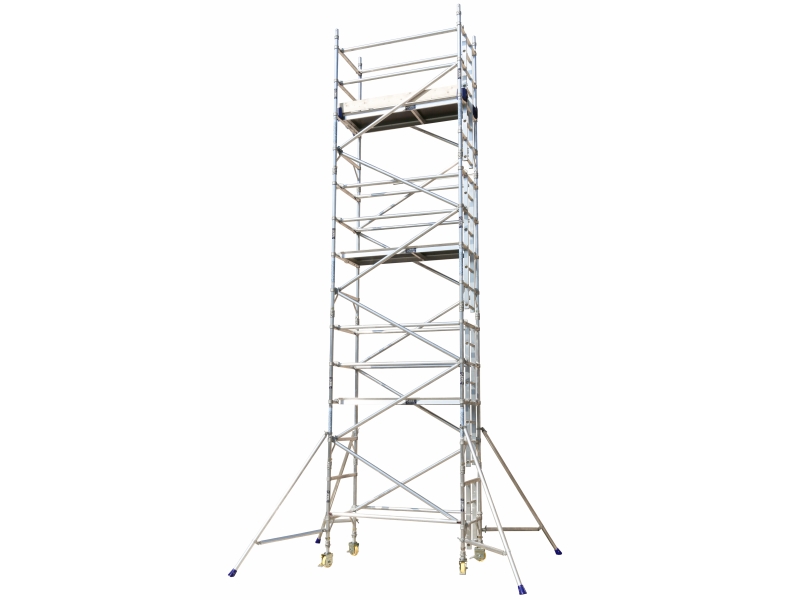

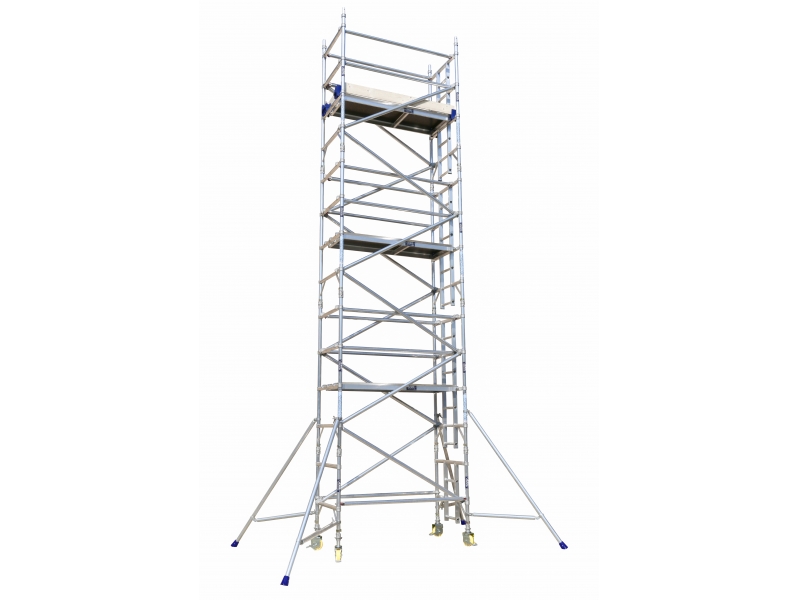

LEWIS Industrial Scaffold Tower Single Width 3.2m Long - 7.7m Platform Height

9.7m (31'9") Working Height | 7.7m (25'3") Platform Height

Product Information

  • Conforms to the requirements of the 3T erection and dismantling method as set out by HSE (Health & Safety Executive).
  • Certified to the very latest BSI Kitemark in respect to BSEN 1004 (Class 3) safety standard for your safety and reassurance. A copy of the certificates acn be provided upon request.
  • Super increased rigidity
  • Fully compatible with SGB BoSS Towers – If you have used these towers, or hired from larger hire companies, this is what our towers are compatible to.
  • Integral ladders with comfortable D section for secure footing. Inferior imports have oval shaped or rectangular 30mm diameter bars.
  • Aluminium Tube: 50.8mm tube with a 1.8mm wall thickness. Inferior imports have 30mm – 40mm diameter 'Poles'.
  • Frame horizontals have 500mm spacing and ribbed tubing for increased grip.
  • Two frame widths of 850mm & 1450mm.
  • 3 deck lengths available: 1.8m, 2.5m and introducing our new 3.2m.
  • Self-closing trapdoors & simple wind lock clips.
  • Safe working load of 275kg per platform level, up to a maximum of 950kg per tower (including self-weight). Inferior imports vary from 125kg – 200kg, but never to the current standard. Please be aware of this important difference.
  • Patented trigger operated locking claws.
  • Fluted floating spigots for easy assembly & dismantling. Inferior imports do not have this at all.
  • 150mm locking castors, with a certified weight load of 925kg.
  • Unique deck extruded profile protects edge of deck board.
  • Lifetime support – Lewis offer 100% satisfaction to end users.

Components for this Tower

Dual Locking Castors - 150mm Locking Castors 4
500mm Adjustable Leg 4
2 Rung 1m Ladder Frame 1
2 Rung 1m Span Frame 1
3 Rung 1.5m Ladder Frame 1
3 Rung 1.5m Span Frame 1
4 Rung 2m Ladder Frame 3
4 Rung 2m Span Frame 3
Trap Door Platform 3
Horizontal Brace (red trigger) 14
Diagonal Brace (blue trigger) 14
(New style) Complete Toe-board Set 1
Standard Stabiliser 0
Jumbo Stabiliser 4
Instruction Manual & BSEN1004 certificate of conformity 1
