LTPRTZ 60W LED TRX Offroad Lightbar - Code LTPZ-TRX10-C

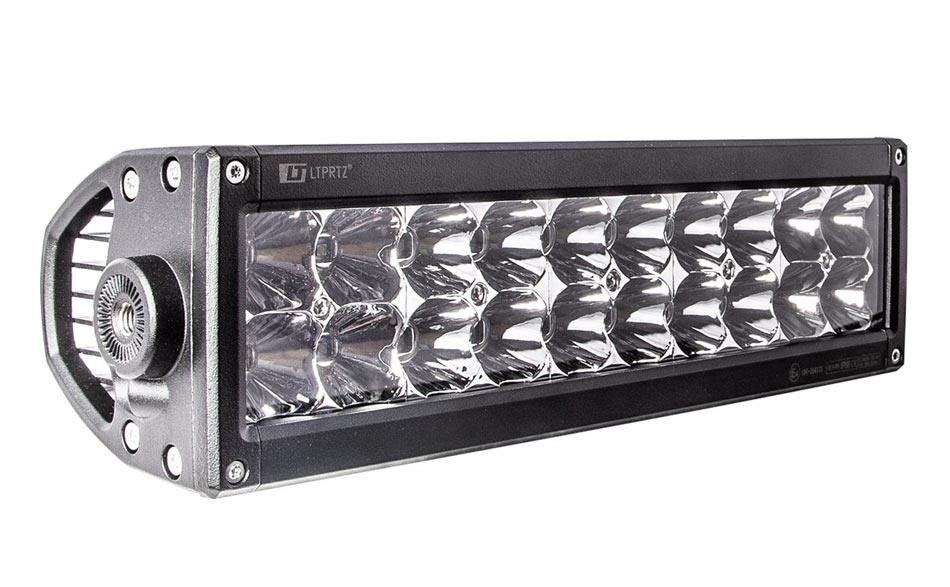

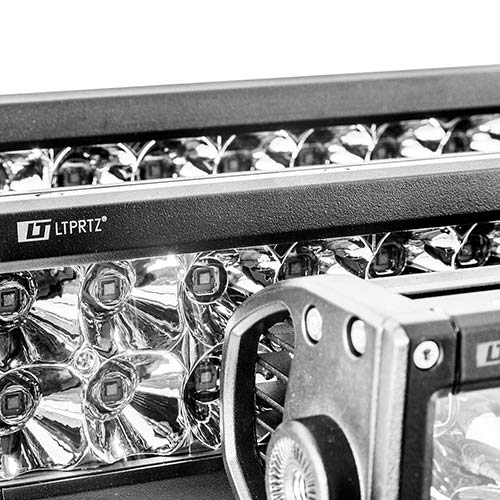

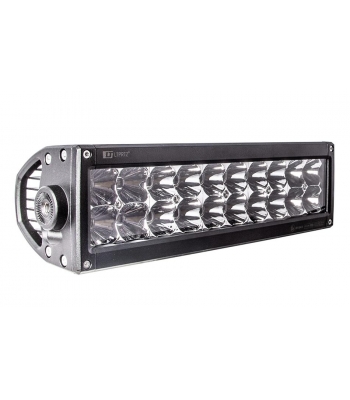

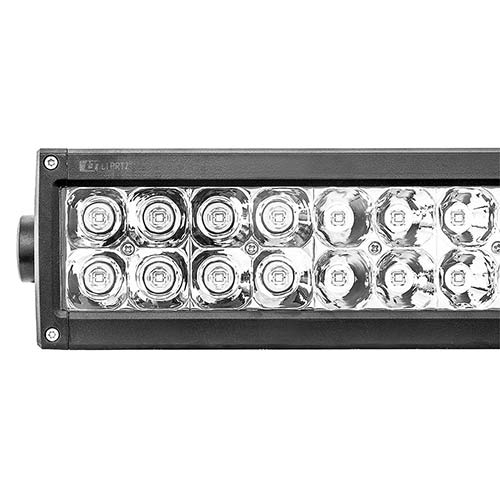

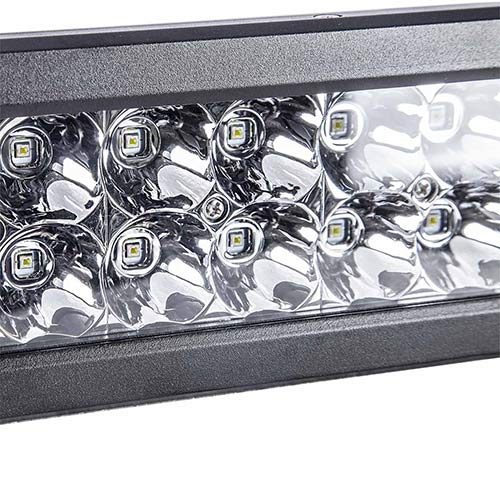

The LTPRTZ 60W TRX LED Offroad Lightbar consists of 20 x 3W OSRAM LED. This light has a 10° Spot and a 60° flood area and draws 9-30V with a die-cast aluminium housing.

The TRX series is the ideal choice for high-intensity, homogeneous illumination of off-road terrain.

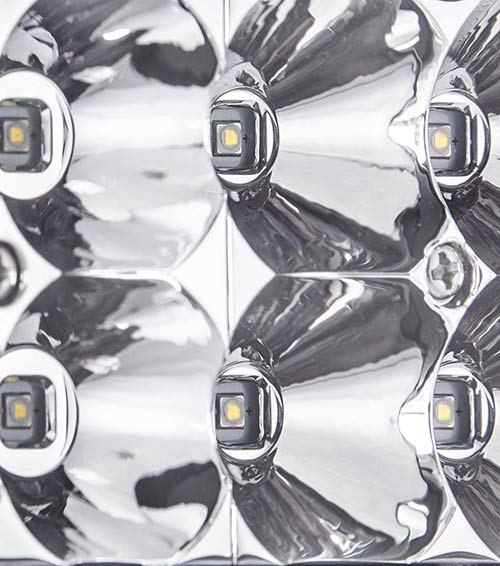

Equipped with central 10° spot beams and external 60° flood beams, the Lightbar can illuminate up to 657m at 0.25 lux.High-quality OSRAM LED chips ensure a long service life and a constant colour temperature even after thousands of hours of operation.

Materials:

  • 6063 extruded aluminum heat sink made of aluminum
  • Efficient polycarbonate (PC) lens refractors
  • Front windscreen made of Lexan polycarbonate (PC)
  • Zinc alloy holder
  • Powder coating made of anodized polyester

Protected against:

  • Reversal of polarity
  • Shockproof, waterproof and UV-protected
  • RFI/EMC interference
  • Voltage and current surges

Operating conditions:

  • 9-30V DC input
  • Ambient temperature -40 - +60 ° C

Features:

  • PWM Thermal Management Regulation
  • 50.000+ hours lifetime
  • Optical combined point and floodlight system
  • Immediately on/off
  • Certification for electromagnetic compatibility
  • Range: 657m(0.25Lx)

Specifications

SKU LTPZ-TRX10-C
Input Voltage 9-30V
Light Source 20x 3W OSRAM LED Chips
Power Input 60
Raw Lumens 4200lm
Light Spread Spot 10° & Flood 60°
Light Intensity Spot 135.200cd Flood 43.000cd
Protection Class IP68
Lens impact-resistant polycarbonate
Housing Die-cast Aluminium
Mounting standing | hanging
Connection DT / Deutsch-plug
Weight 2220 grams
Dimensions 255.0 x 89.0 x 82.0 mm
Certification ECE 10

Model: LTPZ-TRX10-C

Brand: LTPRTZ

Identifier: LTPZ-TRX10-C
