Product ID: Lumag_HZ22
Related Products: See all related products
Manufacturer: Lumag
Warranty: Click here for info
Price: (£1,819.17 ex VAT) £2,183.00 (inc VAT)
2183.00 2024-06-05Equipment features:

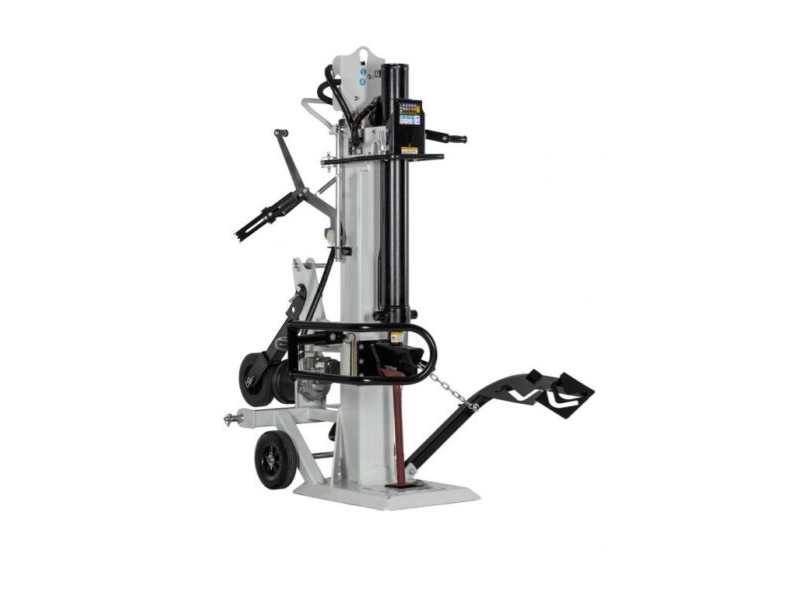

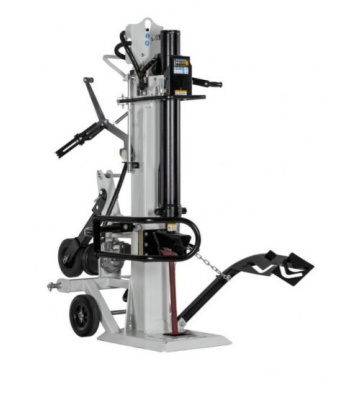

– Vertical hydraulic splitter with PTO or Combination drive
– Sturdy frame and robust riving knife
– Standard with two splitting speeds and reverse
– Adjustable splitting stroke
– cylinder for transport and storage purposes
– Mechanical two-handed operation
– deep slot for fatigue-free working
– With 3-point suspension (cat I + II.)

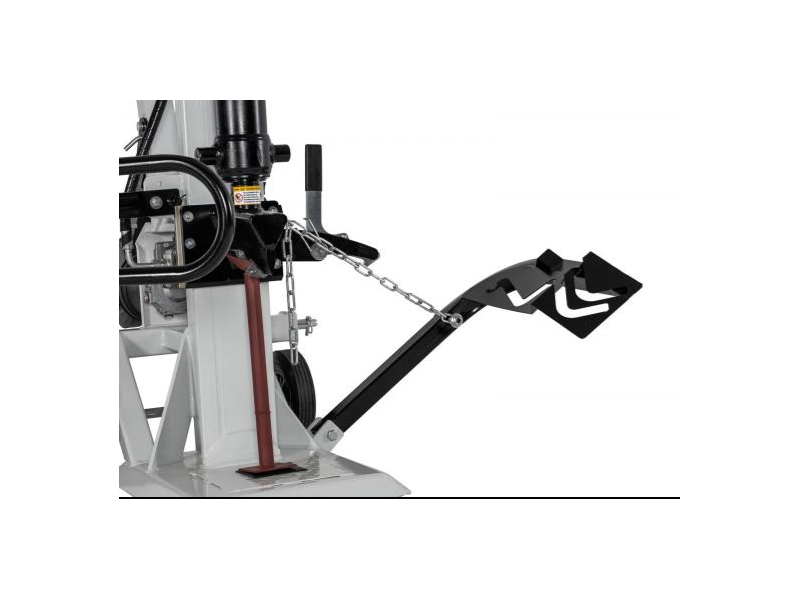

– All models with mechanical log pick-up
– Transport

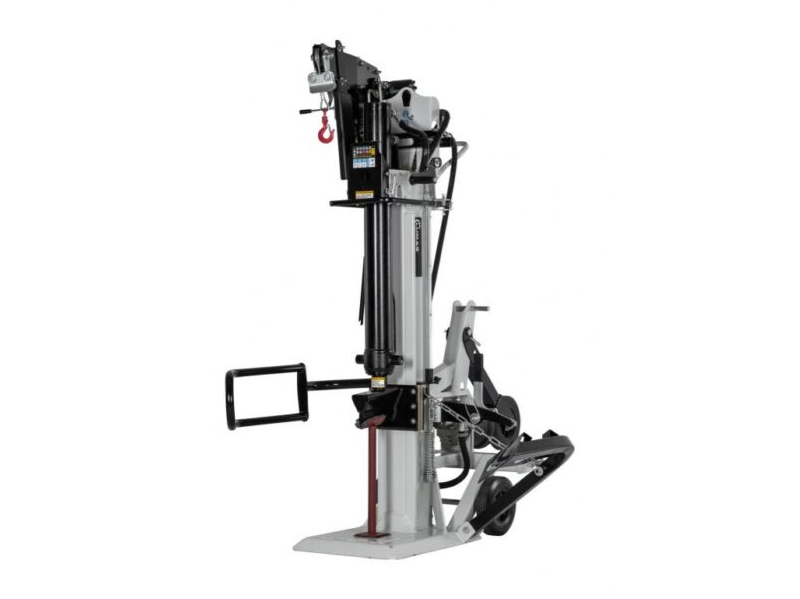

wheels – NEW also available with cable winch for models with PTO shaft
Accessories (optional):
Cable winch (1), mechanical for HEZ-22 and HEZ-30
(item no. 5HSW, EAN: 40 47424 00708 2 )
Cable winch (2), mechanical for HZ-22
(Art. No. 5HSW2, EAN: 40 47424 00915 4)
Specifications:
| drive | PTO transmission |
| Splitting force max. | 22t + - 10% |
| Splitting stroke | 94.8 cm |
| Gap length | 560 - 1100 mm |
| Splitting Ø | 80 - 350 mm |
| Hydraulic pressure max. | 27.5 MPa |
| Oil capacity max. | 24.0 liters |
| Three-point hitch | Cat. I + II |
| PTO speed | 540 rpm |
| Tractor power | 20 hp |
| Working speed | 4.3 / 10.5 cm / s |
| Reverse speed | 7.5 cm / s |
| Dimensions | 110 x 150 x 250 cm |
| Weight (net / gross) | 287.0 / 299.0 kg |
| Packing dimensions (W / D / H) | 94 x 68 x 200 cm |
| Item No. | HZ22 |
| EAN | 40 47424 00911 6 |
| 5HSW2 winch (optional) | YES |
Brand: Lumag
Identifier: HZ22
