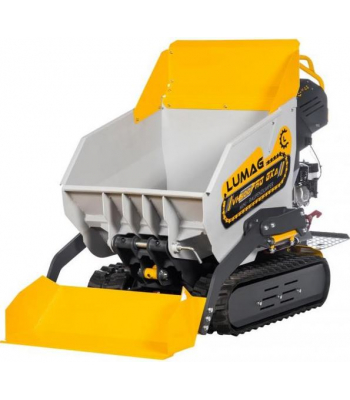

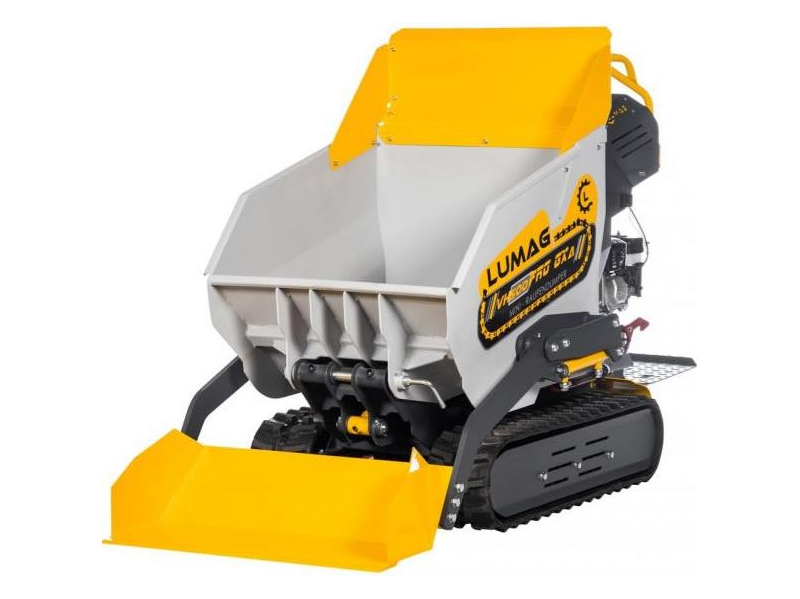

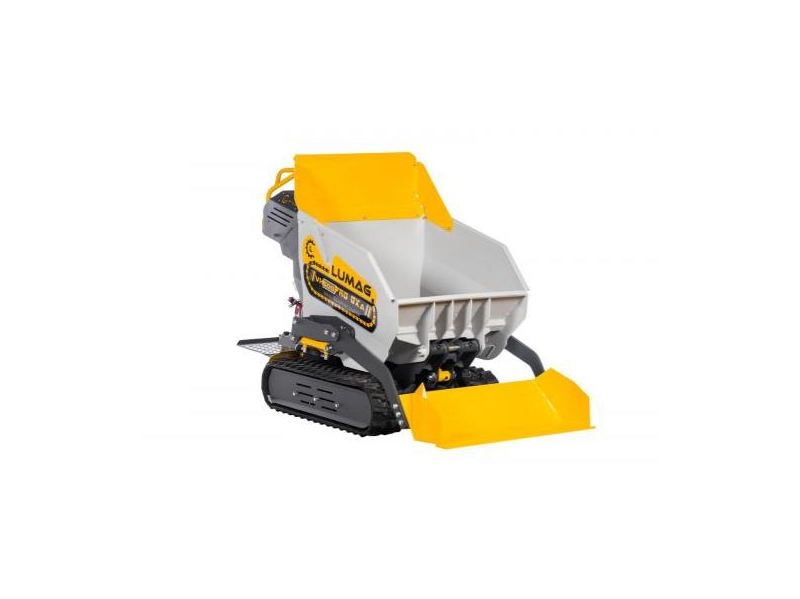

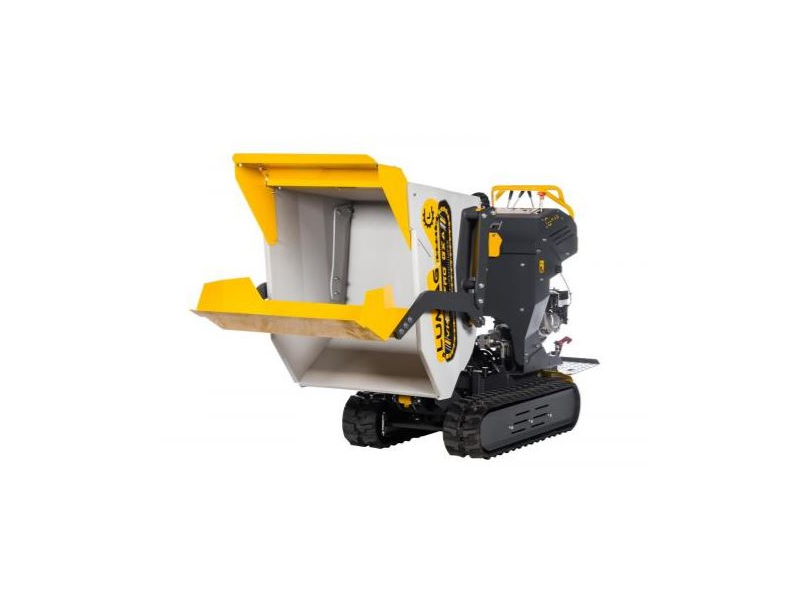

6159.41 2024-05-27The Lumag VH500PROA 2020 model track barrow is a professional quality track barrow with self loading shovel. The machine is fully hydrostatic and robustly made. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump and has a handy stand plate. This machine will offer years of great service.
Equipment features:
– As the perfect helper for all transport work, the fully hydraulic VH-500PROA models provide valuable services in many industries for a wide variety of activities.
– The VH-500PROA easily transports loads of up to 500 kg.
– Bulk and piece goods are emptied using a hydraulic tipping skip.
– Good grip thanks to rubber chains on slippery, smooth and muddy surfaces.
– An extremely narrow design and compact dimensions bring the VH-500PROA models safely to the place of use even through narrow gates and paths.
– The massive steel construction and the powerful double hydraulic pump in combination with the simple, intuitive control and the operating platform make the VH-500PROA models the ideal helper.
– The hydraulic self-loading shovel enables easy loading of the skip.
| engine | 1-cylinder 4-stroke OHV LONCIN engine |
| Displacement | 252 cc |
| power | 5.2 kW |
| Max. Speed | 3,600 rpm |
| Starting device | Reversing starter |
| own weight | 360 kg |
| drive | hydraulic |
| steering | Fully hydraulic / control valve |
| Tilting container (LxWxH) | 855 x 680 x 550 mm |
| Load max. | 500 kg |
| Volume hollow | approx. 0.25 m³ |
| Tilting device | hydraulic, tiltable forwards |
| Hydraulic pumps | 2x10l / min (at 3,000 rpm) |
| Working pressure max. | 180 bar |
| Hydraulic motor | Each max. 720 Nm at 180 bar |
| Working speed (stepless) forwards / backwards | Max. 4.5 / max. 3.2 km / h |
| Ground clearance | 65 mm |
| Max. Gradeability | 15 ° |
| Dimension caterpillar | H / 255, W / 180 mm |
| Dimensions (LxWxH) | 1890 x 850 x 1224 mm |
| Packaging dimensions (LxWxH) | 1550 x 850 x 1250 mm |
