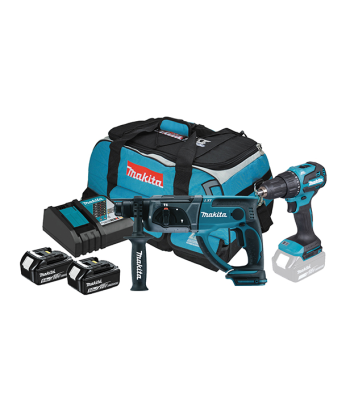

Makita DLX2563T 18V Twin Kit With 2 x 5.0 Batteries

Makita DLX2563T 18V Twin Kit With 2 x 5.0 Batteries

Free UK Mainland Delivery over £50 ex. VAT!

Available (Next Working Day Delivery (if ordered by 3pm))

Nationwide Delivery
Order now for delivery on
Tue 14th Apr 2026

Quote Ref: @140684

Product ID: DLX2563T

Manufacturer: Makita

Warranty: Click here for info

Every Makita product is thoroughly inspected before they leave the factory and can be guaranteed to be free of defects, in both workmanship and materials, for a period of one year beginning the date of the products original purchase.

The warranty period of your Makita tool may be extended to an additional 2 years.

Click here to view the warranties terms and conditions

Click here to register your Makita tool

Parts: Click here for info

Find your parts drawing from the following website and let us know the part no. for a quotation.

Makita parts

List Price: £395.00 (£474.00 inc VAT)

Web Price: (£293.00 ex VAT) £351.60 (inc VAT)

351.60 2026-05-11
Got a question? E-mail a friend
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
MakitaCategoriesProducts

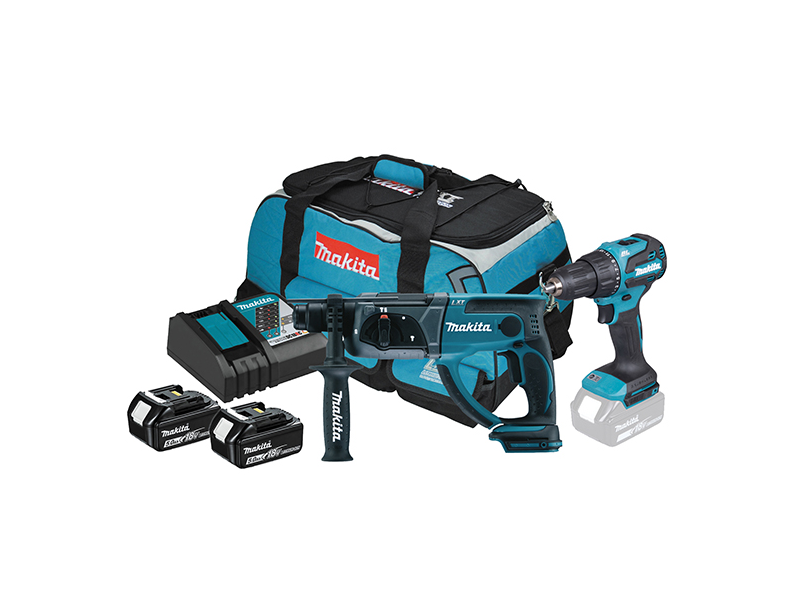

Makita DLX2563T 18V Twin Kit With 2 x 5.0 Batteries

  • 2 x 5.0Ah Li-ion batteries and charger
  • DHP490 Combi drill
  • DHR202 SDS+ Hammer drill
  • Brushless motor
  • Fabric carry bag

DHP490

  • Nominal Battery Voltage: 18 V
  • Voltage: LXT
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
  • Brushless Motor:
  • No load speed: 0 - 500 / 1900 min⁻¹
  • Max. fastening torque Hard/Soft: 50 / 27 Nm
  • Max Torque: 65 Nm
  • Torque setting: 20
  • Impacts per Minute (IPM): 0 - 7500 / 28500 min⁻¹
  • Max. Drilling Diameter in Wood: 38 mm
  • Max. Drilling Diameter in Masonry: 13 mm
  • Max. Drilling Diameter in Steel: 13 mm
  • Drilling Capacity Wood (Auger Bit): 38 mm
  • Drilling Capacity Wood (Self-feed bit): 38 mm
  • Drilling Capacity Flat bit: 40 mm
  • Drilling Capacity Hole Saw: 51 mm
  • Driving Shank: 1/2"-20UNF
  • Drill Chuck Capacity: 1.5 - 13 mm
  • Electronic brake:
  • Vibration Level, Drilling into metal: ≤ 2.5 m/s²
  • Vibration Uncertainty (K Factor), Drilling into metal: 1.5 m/s²
  • Vibration Level, Impact Drilling into Concrete: 8.1 m/s²
  • Vibration Uncertainty (K Factor), Impact Drilling into Concrete: 1.5 m/s²
  • Sound Power Level (LWA): 96 dB(A)
  • Sound Pressure Level (LpA): 88 dB(A)
  • Noise Uncertainty (K Factor): 3 dB(A)
  • Product Dimensions (L x W x H): 172 x 81 x 255 mm
  • Tool weight with battery: 1.4 - 1.7 kg
  • Product net weight: 1.0 kg / 1.7 kg

DHR202

  • Nominal Battery Voltage: 18 V
  • Voltage: LXT
  • Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
  • Impact Energy: 1.9 J
  • Optimum Drilling Diameter Range in Concrete: 4 - 12 mm
  • Max. Drilling Diameter in Concrete: 20 mm
  • Max. Drilling Diameter in Wood: 26 mm
  • Max. Drilling Diameter in Steel: 13 mm
  • Impacts per Minute (IPM): 0 - 4000 min⁻¹
  • No load speed: 0 - 1200 min⁻¹
  • Drilling diameter with TCT core bit: 54 mm
  • Adapted for SDS-PLUS bits:
  • Tool weight with battery: 3.2 - 4.0 kg
  • Electronic brake:
  • Vibration Level, Hammer Drilling Into Concrete: 15.1 m/s²
  • Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete: 1.5 m/s²
  • Vibration Level, Chiselling: 14.1 m/s²
  • Vibration Uncertainty (K Factor), Chiselling: 1.5 m/s²
  • Sound Power Level (LWA): 99 dB(A)
  • Sound Pressure Level (LpA): 91 dB(A)
  • Noise Uncertainty (K Factor): 3 dB(A)
  • Product Dimensions (L x W x H): 358 x 84 x 259 mm
