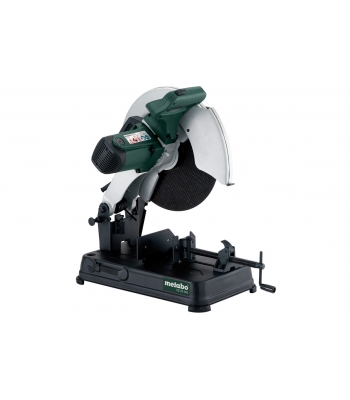

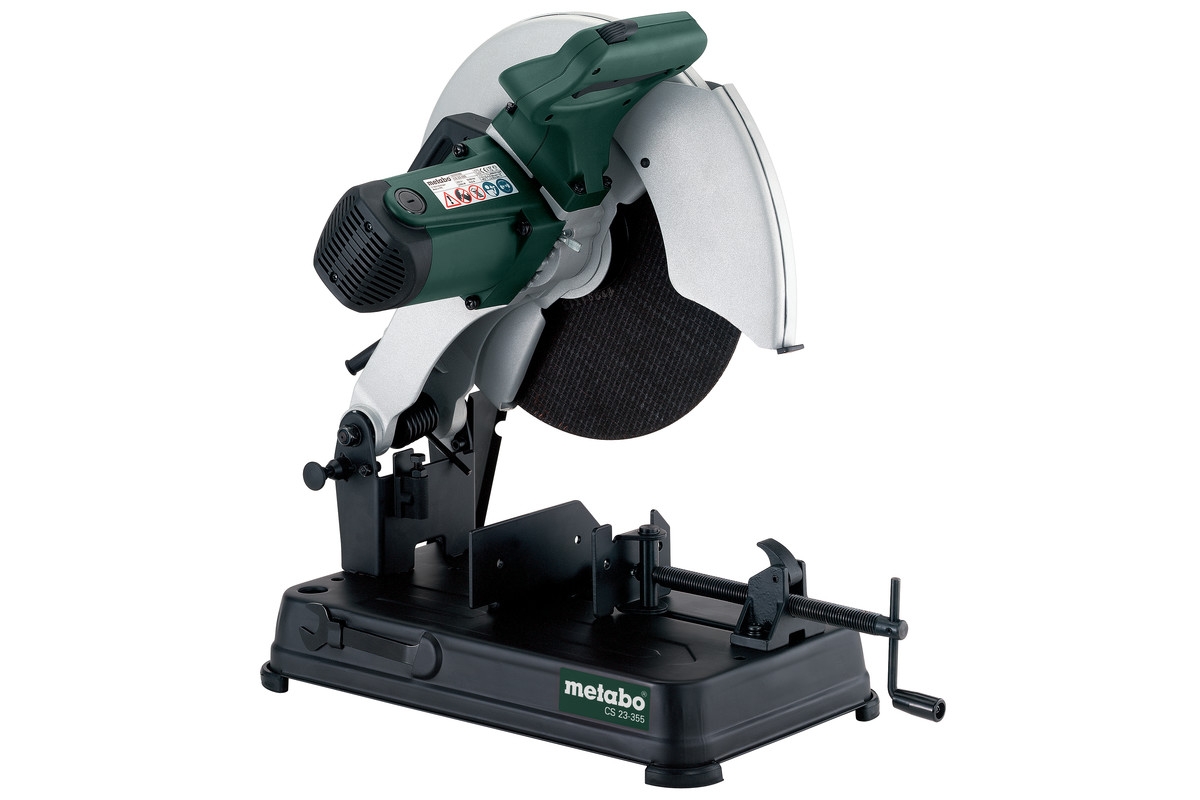

METABO CS23-355 110v - Portable cut off saw - 355mm blade - Code 602335390

• For single phase alternating current

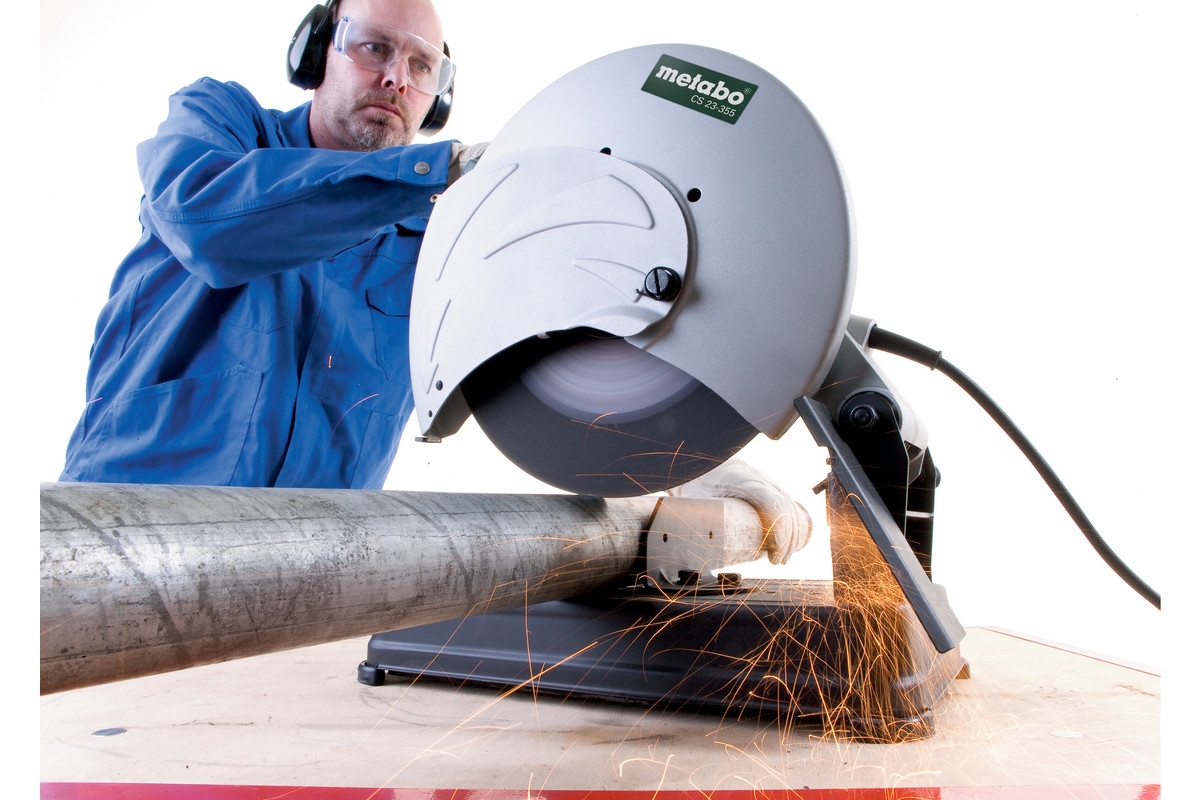

• Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.
• Motor and gear with ball bearing for high loads
• Spindle lock for easy disc change
• Quick clamping device with variable mitre conversion from -15° up to 45°
• Easy to transport due to built-in handle and locking device
• High safety thanks to swivelling cutting guard
• Storage for double-ended wrench at the machine table
• Safe working thanks to adjustable spark guide plate
• Adjustable cutting depth limiter

Characteristics

• Grinding wheels (Ø x bore) 355 x 25.4 mm
• Torque 18 Nm
• No-load speed 4100 rpm
• Rated input power 1600 W
• Cutting capacity steel bars 65 mm
• Cutting capacity pipes 125 mm
• Cutting capacity steel sections 115 x 130 mm
• Maximum opening of vice jaws 238 mm
• Dimensions of the base plate 468 x 282 mm
• Transport height 400 mm
• Weight 16.9 kg
• Cable length 2.7 m

Noise emission

• Sound pressure level 91 dB(A)
• Sound power level (LwA) 104 dB(A)
• Uncertainty of measurement K 3 dB(A)
