Milwaukee Expander Heads

Great work lasts longer. Our Expander heads is designed with professionals in mind. Learn more about our Expansion tools range.

Features

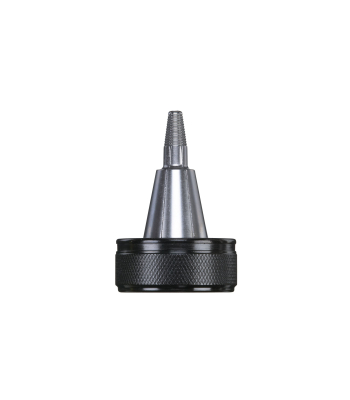

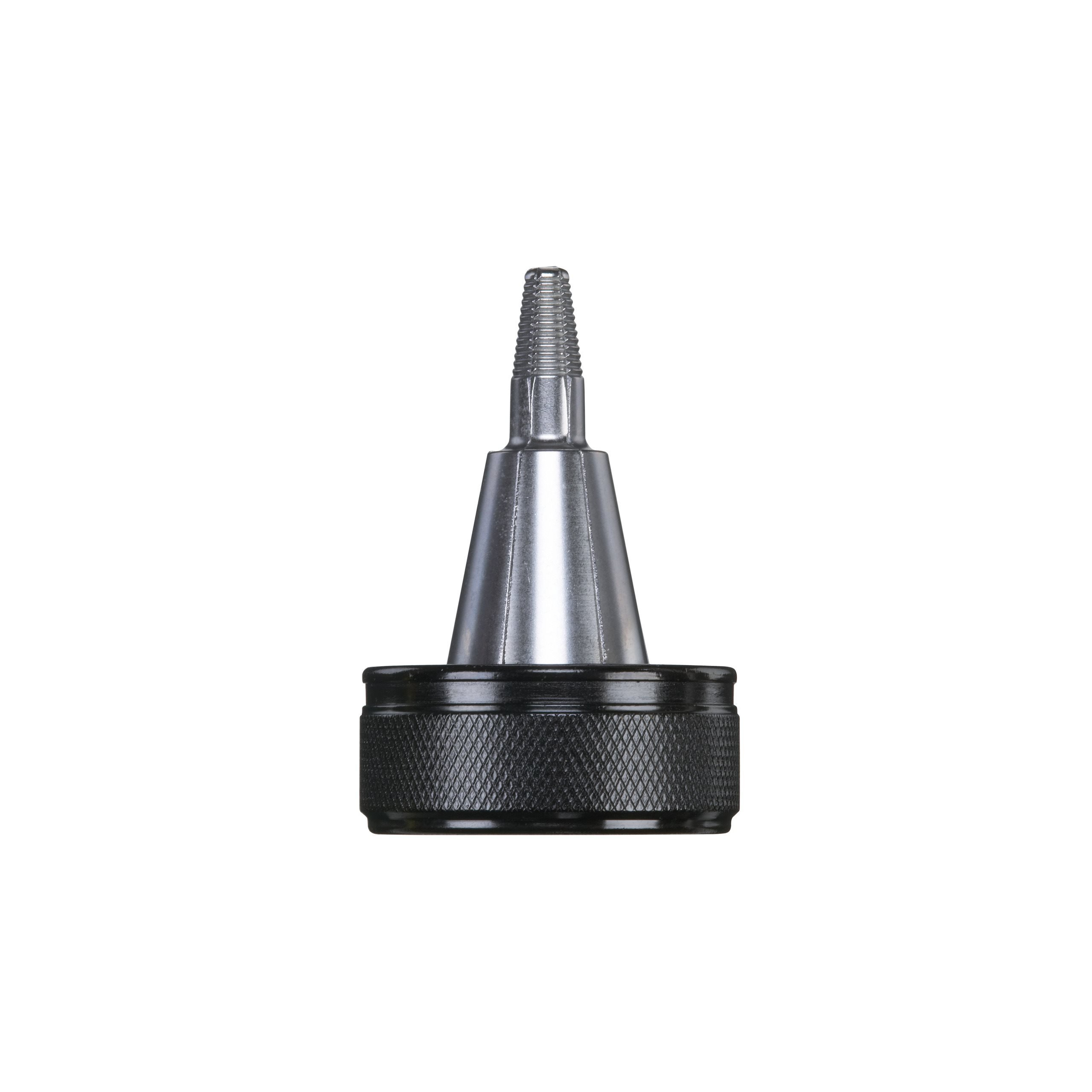

  • The Q&E expansion heads are precision engineered for accurate expansion of Uponor™ PEX-a tubing for Q&E fittings. Featuring the auto-rotation interface for MILWAUKEE® cordless Q&E expansion tools, the heads are not only compatible with M12™, M18™ tools, but also fit most Uponor™ tools. Made from high strength steel, the chrome plated segments and black oxide ring combine durability and weather resistance. Colour coded rings for easy size recognition add convenience.

PXPH 12I - 14 - 1 pc Specifications - 4932352716

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]12
Pipe pressure [bar]6-10
Pipe wall thickness [mm]1.7/ 1.8/ 2
SuitableM12, M18
Article Number4932352716
EAN4002395373741

PXPH 16I - 14 - 1 pc Specifications - 4932352717

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]16
Pipe pressure [bar]10
Pipe wall thickness [mm]1.8/ 2.0/ 2.2
SuitableM12, M18
Article Number4932352717
EAN4002395373758

PXPH 20I - 1406 - 1 pc Specifications - 4932352718

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]20
Pipe pressure [bar]6, (8 bar - ⌀ 2.3 mm)
Pipe wall thickness [mm]1.9/ 2.0/ 2.3
SuitableM12, M18
Article Number4932352718
EAN4002395373765

PXPH 20I - 1410 - 1 pc Specifications - 4932352719

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]20
Pipe pressure [bar]10
Pipe wall thickness [mm]2.8
SuitableM12, M18
Article Number4932352719
EAN4002395373772

PXPH 25I - 1406 - 1 pc Specifications - 4932352720

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]25
Pipe pressure [bar]6
Pipe wall thickness [mm]2.3
SuitableM12, M18
Article Number4932352720
EAN4002395373789

PXPH40I-2510 Specifications - 4932479581

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]40
Pipe pressure [bar]10
Pipe wall thickness [mm]5.5
SuitableM18 FPXP
Article Number4932479581
EAN4058546373757

PXPH50I-25 Specifications - 4932479582

Base Information

Head type-
Pack quantity1
Pipe diameter [mm]50
Pipe pressure [bar]6-10
Pipe wall thickness [mm]4.6/ 6.9
SuitableM18 FPXP
Article Number4932479582
EAN4058546373764

General Information

As one of the world's leading tool manufacturers and suppliers, MILWAUKEE® has you covered with professional Power Tools for every occasion. Browse our range and find your ideal Power Tools today. Whether you need Sawing and Cutting Tools for woodworking or Drilling or Chipping Tools for a construction project, you can rely on our powerful, functional equipment to get your job completed to the best standard. MILWAUKEE® Cordless Power Tools offer greater flexibility on site, so you don't need to rely on power outlets. Thanks to high-performance MILWAUKEE® Batteries, you can benefit from longer run times and manoeuvrability. Certain tools come with ONE-KEY™ technology, giving you the ability to track them and manage your inventory using cloud-based software. Across the range, there are high-quality plumbing Power Tools that offer precision and power. These include the MILWAUKEE® M12™ RAPTORXL™ Pipe Cutter Stainless Steel. Its high-performance 330 rpm motor is capable of cutting through 54 mm stainless steel pipes in less than 30 seconds. The MILWAUKEE® M18™ FUEL™ 55 mm Circular Saw For Wood And Plastics delivers the power to rip cut at the same feed rate as an equivalent AC circular saw. Meanwhile, the MILWAUKEE® M18™ Compact Brushless Drill Driver's 65 mm length allows access into tight spaces and offers exceptional power-to-size ratio. Many MILWAUKEE® Power Tools come with variable speed settings so you can tailor your approach to the task, as well as LED light illumination for added precision and safety. Regardless of the Power Tools you choose, you'll be handling ergonomic designs. Whether it's a soft grip, lightweight design or an integrated dust blower, each piece of equipment allows you to work comfortably and for longer. MILWAUKEE® Power Tools are powered by M12™, M18™ and MX FUEL™ systems, with many using Batteries that are compatible with other equipment, so you can be extra resourceful while working. MILWAUKEE® Power Tools are also available in combo kits meaning you can secure all your essentials with one purchase. Check out our MILWAUKEE® Power Tools range today.
