Milwaukee M18 FUEL™ Needle Concrete Vibrator

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 3-5 Working Days)

Guaranteed Stock
Order now for delivery by
Wed 14th May 2025

Quote Ref: @133434

Product ID: TTI_4933479601

Barcode: 4058546373955

Manufacturer: Milwaukee

Warranty: Click here for info

The end user warranty period is 12 months and begins on the date that the unit was purchased. This must be documented by an invoice or other proof of purchase. Products in the hire industry are excluded from this 12 month warranty.

Warranties can be extended on tools purchased from 2008 in the countries listed at http://service.milwaukee-et.com to 3 years provided that the end consumers register their newly acquired tools for the extended warranty online within four weeks of the date of purchase.

A warranty repair is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts become our property. In some countries delivery charges or postage will have to be paid by the sender.

Click here for more information

Click here to register for an extended warranty.

List Price: £382.24 458.69 inc VAT)

Web Price: 322.38 ex VAT) £386.86 (inc VAT)

386.86 2025-06-05
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

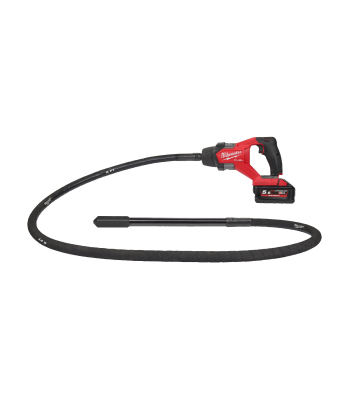

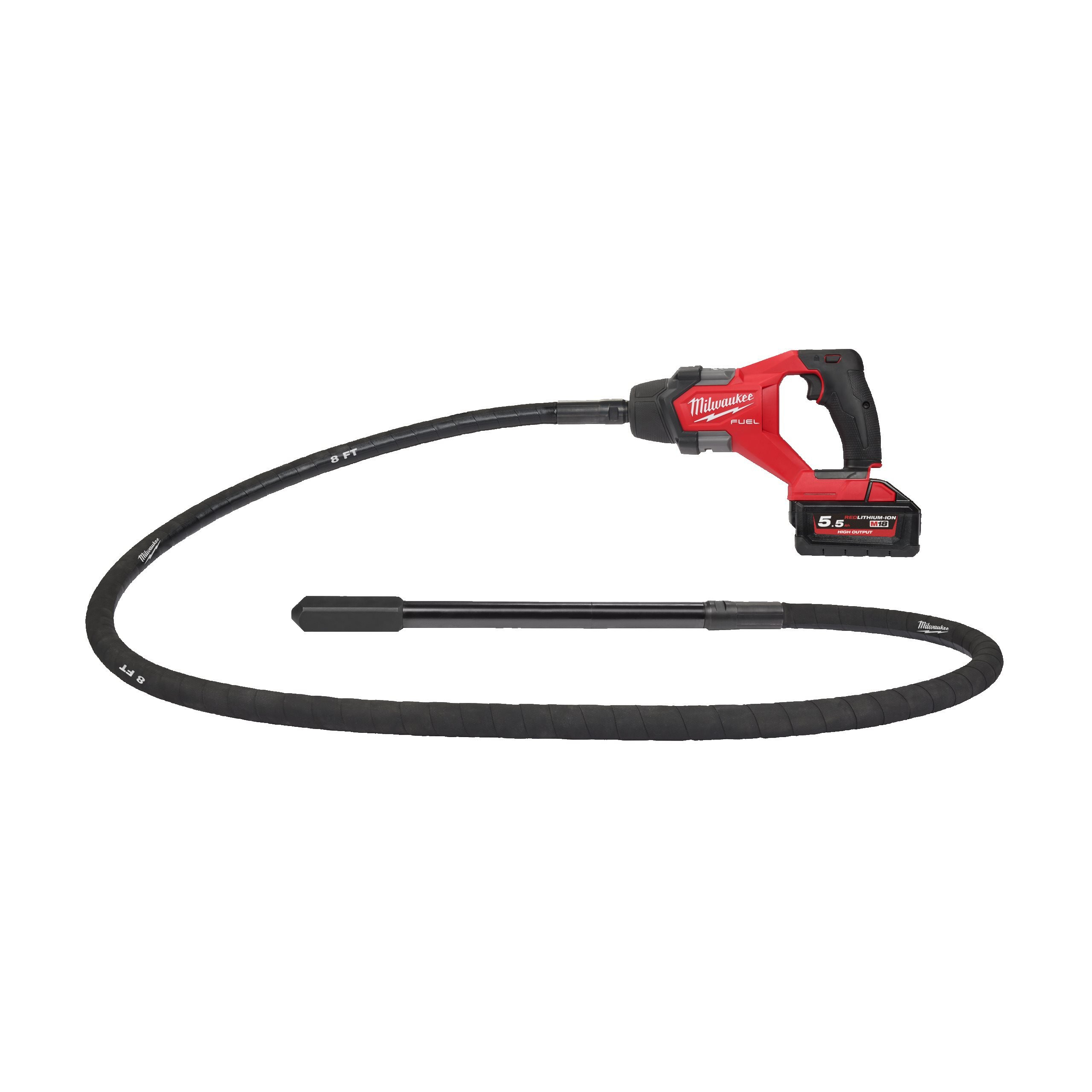

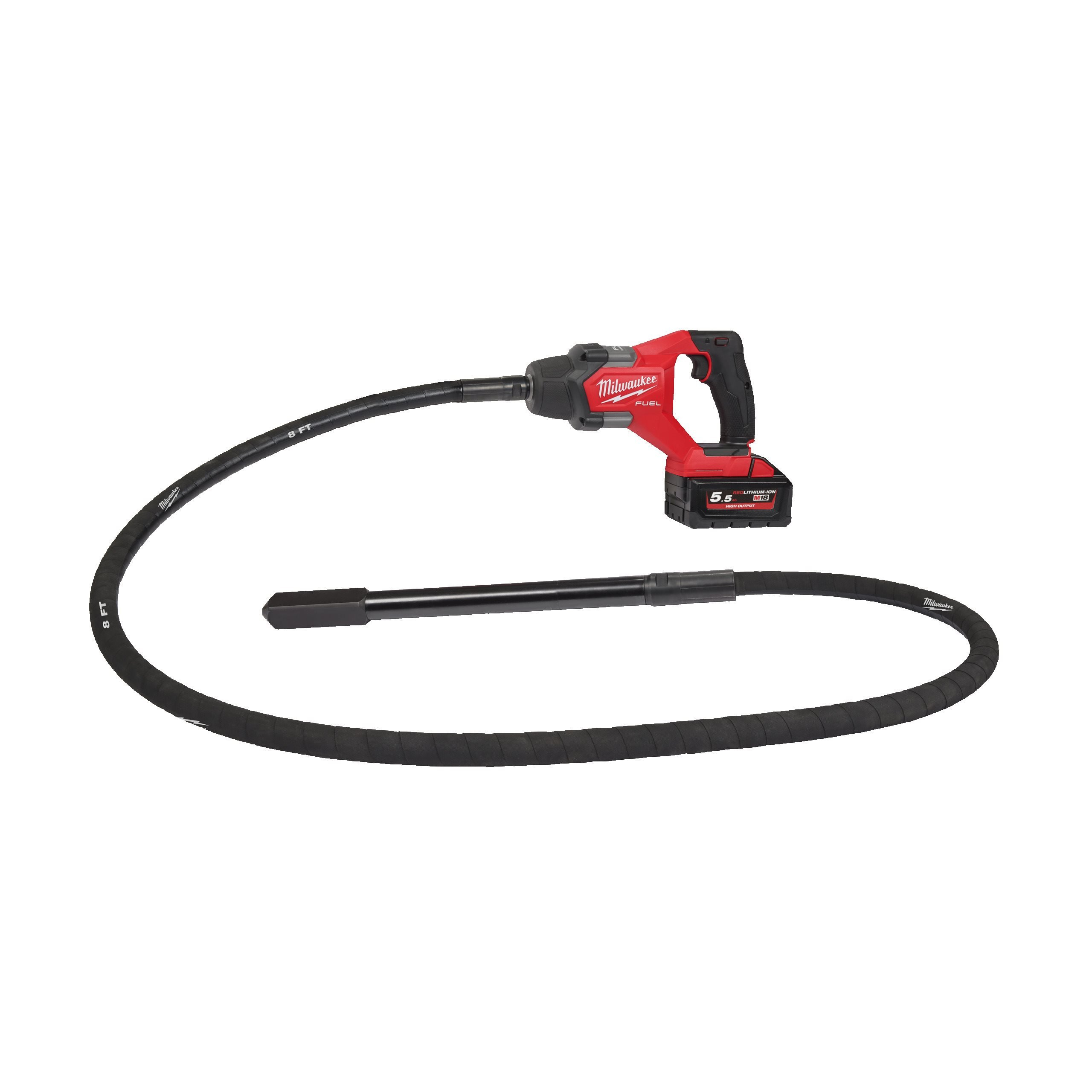

Milwaukee M18 FUEL™ Needle Concrete Vibrator

Work smarter, not harder, with MILWAUKEE® Cordless Concrete Pokers. Choose a backpack, briefcase or handheld model to suit your needs.

Features

  • M18 FUEL™ Needle Vibrator for consolidation of concrete with a compact design
  • 1.2 m whip length execution recommended for footings or small flatwork (M18 FCVN12)
  • 2.4 m whip length execution recommended for walls or columns (M18 FCVN24)
  • 25 mm² head design and 12,500 VPM for an improved consolidation power
  • Variable speed trigger for ideal adaption to each material and formwork size
  • Hang hook, when tool not in use, to be attached to the formwork or scaffolding
  • Light weight for comfortable application and easy transport on site
  • Power to consolidate up to one concrete truck (8 m³) on a single M18™ 5.5 HIGH OUTPUT™ battery
  • The HIGH OUTPUT™ system of tools elevates the M18 FUEL™ technologies to a new level and delivers extended performance and extended run time. These tools are designed to maximise the partnership with HIGH OUTPUT™ and FORGE™ batteries
  • Flexible battery system: works with all MILWAUKEE® M18™ batteries

M18 FCVN24-551 Specifications - 4933479601

Base Information

Columns✔✔✔
DescriptionM18 FCVN-24*
Dimensions (mm)2400
Footings
Kit included1 x M18 HB5.5 Battery pack, M12-18 FC Charger, No kitbox or bag supplied
Slabs
Supplied inNo kitbox or bag supplied
Vibrations [1|min]12,500
Walls✔✔✔
Article Number 240V4933479601
EAN 240V4058546373955

Power Source

Battery pack capacity (Ah)5.5
Battery typeLi-ion
Charger includedM12-18 FC
Charger supplied60 min
No. of batteries supplied1
Voltage (DC) (V)18

Weight

Weight with battery pack (EPTA) (kg)6.5 (M18 HB5.5)

Noise

Sound power level (Lwa)(dB(A))89.4
Sound power level uncertainty (dB(A))3
Sound pressure level (Lpa)(dB(A))78.4
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration level (m/s²)6.0
Vibration uncertainty (m/s²)1.5

M18 FCVN12-551 Specifications - 4933479598

Base Information

Columns
DescriptionM18 FCVN-12*
Dimensions (mm)1200
Footings✔✔✔
Kit included1 x M18 HB5.5 Battery pack, M12-18 FC Charger, No kitbox or bag supplied
Slabs✔✔✔
Supplied inNo kitbox or bag supplied
Vibrations [1|min]12,500
Walls
Article Number 240V4933479598
EAN 240V4058546373924

Power Source

Battery pack capacity (Ah)5.5
Battery typeLi-ion
Charger includedM12-18 FC
Charger supplied60 min
No. of batteries supplied1
Voltage (DC) (V)18

Weight

Weight with battery pack (EPTA) (kg)5.0 (M18 HB5.5)

Noise

Sound power level (Lwa)(dB(A))89.4
Sound power level uncertainty (dB(A))3
Sound pressure level (Lpa)(dB(A))78.4
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration level (m/s²)6.1
Vibration uncertainty (m/s²)1.5

M18 FCVN24-0 Specifications - 4933479599

Base Information

Columns✔✔✔
Dimensions (mm)2400
Footings
Slabs
Supplied inNo kitbox or bag supplied
Vibrations [1|min]12,500
Walls✔✔✔
Article Number4933479599
EAN4058546373931

Power Source

Battery typeLi-ion
Charger includedNo charger supplied
Charger suppliedNo charger supplied
No. of batteries supplied0
Voltage (DC) (V)18

Weight

Weight with battery pack (EPTA) (kg)6.5 (M18 HB5.5)

Noise

Sound power level (Lwa)(dB(A))89.4
Sound power level uncertainty (dB(A))3
Sound pressure level (Lpa)(dB(A))78.4
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration level (m/s²)6.0
Vibration uncertainty (m/s²)1.5

M18 FCVN12-0 Specifications - 4933479596

Base Information

Columns
Dimensions (mm)1200
Footings✔✔✔
Slabs✔✔✔
Supplied inNo kitbox or bag supplied
Vibrations [1|min]12,500
Walls
Article Number4933479596
EAN4058546373900

Power Source

Battery typeLi-ion
Charger includedNo charger supplied
Charger suppliedNo charger supplied
No. of batteries supplied0
Voltage (DC) (V)18

Weight

Weight with battery pack (EPTA) (kg)5.0 (M18 HB5.5)

Noise

Sound power level (Lwa)(dB(A))89,4
Sound power level uncertainty (dB(A))3
Sound pressure level (Lpa)(dB(A))78,4
Sound pressure level uncertainty (dB(A))3

Vibration

Vibration level (m/s²)6,1
Vibration uncertainty (m/s²)1.5

General Information

Improve the structural integrity of your hardened concrete with MILWAUKEE® Concrete Pokers. Explore the versatile range offering stationary and mobile applications today. Using MILWAUKEE® Cordless Concrete Vibrators means there's no need for an on-site power socket. Simply carry a portable, battery-powered Concrete Poker around in hand, on your back or leave it on a steady surface. The MX™ Briefcase Concrete Vibrator has a slim, compact design for maximum mobility whether you're holding it or setting it down. The carry strap and handle offer increased flexibility in all working conditions, while the durable ring means it can be attached to scaffolding and formwork to free up your hands. Push-button starts deliver instant power, reducing the strain and time lost that you can experience with pull-start Vibrating Pokers. One fully-charged MX FUEL™ REDLITHIUM™ 6.0 Ah battery allows you to consolidate up to 40m³ of concrete, reducing the need for battery swaps and excess downtime. For a more compact design, the M18 FUEL™ Needle Concrete Vibrator is lightweight and comfortable in hand for smaller jobs. Meanwhile, the MX FUEL™ Backpack Concrete Vibrator is the ideal solution for large areas of concrete. With the weight evenly distributed on your back, you'll feel less fatigue when working for longer periods. It accepts shafts up to 6.4 m long and heads up to 63 mm in diameter, and you won't have to sacrifice power or performance. Work smarter, not harder, by checking out the MILWAUKEE® Cordless Concrete Poker range.
