Pacific Laser Systems PLS4 Point and Line Laser - Code 60574

  • 180-degree coverage
  • Display 2 laser lines and 2 points
  • Self-leveling within ±6 degrees
  • Up to 100-foot range
  • ±1/8-inch accuracy at 30 feet
  • Optional SLD laser detector
  • IP54 dust and water-resistant
  • 1/4-20 tripod thread

The Pacific Laser Systems PLS4 Point and Line Laser Level 60574 is a self-leveling construction laser used for both interior and exterior applications. It has 2 lines and 2 points for easy plumbing, leveling, and squaring. The working range is up to 100 feet, cross line accuracy is accuracy within ±1/8 inch at 30 feet, and plumb point accuracy is within ±1/4 inch at 100 feet. There is also 1/4 x 20-inch thread for use with a tripod.

Beam Projection

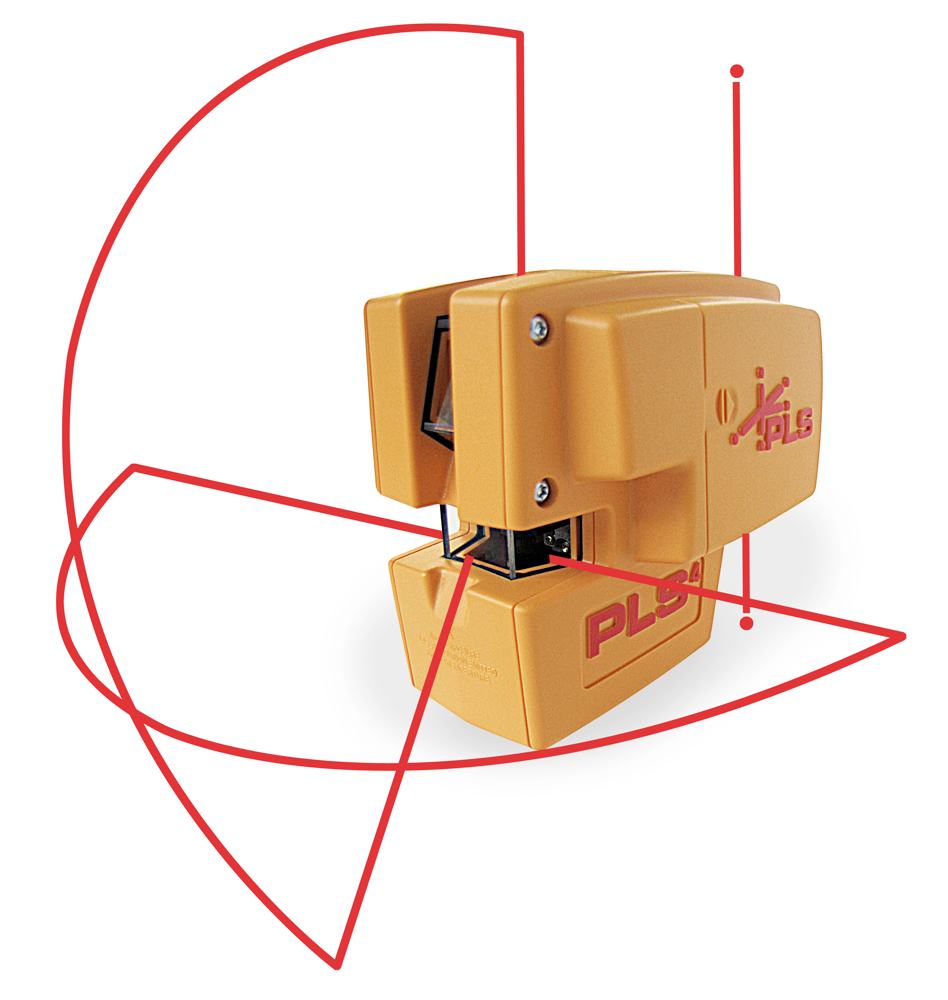

The PLS4 combination laser level projects a single horizontal and single vertical line with fan angles of about 180 degrees, as well as a cross line. Towards the back of the unit are two plumb points that project up and down.

Pulse Option

This cross beam laser has a pulse mode for use with an optional SLD laser detector (not included). The combination of pulse mode and a detector enhances detectability of the beams and enables use outdoors or in bright lighting and enables the level to reach its full working range.

Self-Leveling

This self-leveling line laser automatically compensates for tilts within 6-degrees. If the instrument is further out of level, a red light appears and the unit shuts off. Automatic leveling can be disabled to position the construction laser tool at any angle.

Exterior Features

The PLS4 is dust and water-resistant. Its convenient cantilevered nose ensures that it can be easily set on tracks or similar-shaped objects. The line and point laser level can also be attached to metal surfaces using the included magnetic wall bracket.

Power Source

This Pacific Laser Systems construction laser runs on 3 AA batteries and provides up to 25 hours of operation when using a single beam and 12.5 hours when using two beams. An amber-colored light appears when the batteries are ready to be changed or charged.

The PLS4 line and dot laser also includes a floor stand, carrying case, a user manual, and a 3-year limited warranty.

  • 100-foot range with SLD laser receiver
  • Display 2 laser lines and 2 points
  • ±1/8-inch accuracy at 30 feet
  • Optional SLD laser receiver
  • Self-leveling within ±6 degrees
  • 180-degree full coverage leveling
  • Manual mode for tilting
  • Magnetic mount
  • 1/4 - 20 tripod thread
  • IP54 dust and splashing water
  • Auto shut-off of beams when out of self-leveling range
  • Outdoor pulsing mode for use with receiver
  • Visual low battery indicator
  • Impact-resistant molding
  • Floor stand
  • Hard carrying case
  • 3 year limited warranty

General

  • Warranty: 3 years limited
  • Weight: 1.0 lb (453 g)
  • Laser Type: 635-670 nm
  • Dimensions: 2 x 2.5 x 4.375 (50.8 x 63.5 x 111 mm)
  • Laser: Class II (in accordance with IEC 60825-1)

Measuring Capabilities

  • Leveling Accuracy: ±1/8 inches @ 30 feet (3 mm at 9 m)
  • Working Range: up to 100 ft (30 m)
  • Vertical Accuracy: ±1/8 inches @ 30 feet (3 mm at 9 m)
  • Self-Leveling Range: ±5 degrees
  • Range with Receiver: up to 100 feet (30 m)
  • Number of Points: 2
  • Number of Lines (Planes): 2
  • Beam Direction: Horizontal and vertical
  • Horizontal Accuracy: ±1/8 inches @ 30 feet (3 mm at 9 m)
  • Plumb Accuracy: ±1/4 inches @ 100 ft (6.35 mm at 30 m)

Battery/Power

  • Operating Temperature: 0°F to 122°F (-18°C to 50°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Time: Up to 25 hours
  • Power Source: (3) AA batteries
  • Battery Level Indicator: Yes

Applications

  • Transferring Points from Floor to Ceiling: Yes
  • Installing Windows and Partition Walls: Yes
  • Transferring Points from Wall to Wall: Yes
  • Installing Drop Ceilings and Lights: Yes
  • Flooring and Tile Layout: Yes
  • Ceiling Joist and Rafter Alignment: Yes
  • Diagonals and Footings for Patios: Yes
  • Stud Plumbing and Alignment: Yes
  • Installing Plumbing Pipes and Conduit: Yes

Functions

  • Plumbing Up and Down: Yes
  • Setting out Right Angles: Yes
  • Horizontal Leveling: Yes
  • Vertical Aligning: Yes
  • Vertical and Horizontal Aligning: Yes
  • Aligning at an Angle: Yes

Features

  • Tripod Thread: 1/4-20 thread
  • Environmental Class: IP54 (equipment is protected against dust and splashing water)
  • Self-Leveling: Yes

Comes With

Operating Manual

Magnetic Wall Bracket

Carrying Pouch

Floor Stand

Hard Carrying Case

Brand: Topcon

Identifier: 60574

PLS Pacific Laser Systems

Published on Thu 28th August 2014 by D Courtney

PLS laser tools are designed to be a career purchase with a lifetime of profit and productivity.

Foundations


General, new residential and remodeling contractors will appreciate the simple set up and accurate layout for basements, concrete slab and decks.

Interiors


Commercial and remodeling contractors will save layout time, verify existing conditions and improve installation for electrical, HVAC, tile, glazing, staging and more.

Partitions


Multi story commercial, light industrial, drywall, masonry and tilt-up will realize labor efficiencies, while reducing compound errors and rework.

THE PLS EDGE


PLS - PACIFIC LASER SYSTEMS MANUFACTURES THE HIGHEST QUALITY LAYOUT TOOLS FOR THE PROFESSIONAL CONTRACTOR.

PLS are dedicated to designing career laser tools for a lifetime of increased productivity and profit. Fast, accurate and portable, PLS lasers save time and money when your bubble vial level or rotary laser is
too limited or too cumbersome to do the job. When a rotary laser is required for long-midrange vertical and horizontal layout, then our PLS HR or HLE 1000 and PLS HVR 505 will tackle most projects. Compare the advantages of using a PLS laser to traditional methods you now employ.

When comparing PLS laser tools look for these quality features:

1. Beam quality will be bright, small and crisp.
2. Dampening will be quick and stable. The beams will not bounce around.
3. The tools will be self-leveling, easy to use and efficient.

PLS5, PLS4, PLS3, PLS180, PLS360 and PLS90 lasers are designed, calibrated, and assembled in the USA. The PLS HVR, HR, HLE and FT lasers are made for PLS in Asia.

PLS HISTORY


What sets PLS Pacific Laser Systems apart from the rest? Built by contractors for contractors, PLS tools were developed out of necessity by professionals with over 50 years of experience in commercial and residential interior and exterior layout. PLS founders were contractors first before becoming manufacturers of the finest laser alignment tools in the world.

PLS APPLICATIONS


FRAMERS


No more plumb bobs in the wind. Lay out and install track and studs for commercial or residential projects. Use PLS90 to project 90 degree angles in a fraction of the time. No more 3-4-5. Indoor - outdoor application means greater utility and value for your purchase.

ELECTRICIANS


Use the PLS reference plumb points to determine where each light is to be installed. How long would it take you to lay out 50 lights in a vaulted ceiling with two people and a plumb bob?

HOME BUILDERS


Setting up foundations on a slope is always a challenge. Place your PLS90 on the corner of your layout and pull reference points forward and to the side for labor saving layout. Interior walls, stairways, cabinetry, skylights, windows and more can be aligned quickly and accurately with a PLS laser.

HVAC / MECHANICAL


For commercial HVAC, PLS will speed vertical and level layout. Manipulate plumb, level, and square reference anywhere on the job site, regardless of obstacles or weather conditions.

ACOUSTIC CEILINGS


The PLS360 and 505 rotary laser makes layout and installation of acoustic ceilings fast and simple.

GENERAL CONSTRUCTION


The range, versatility and accuracy of our lasers make them ideal tools for checking elevations, setting large pads, leveling forms, square on slope and footings.

TILE


For ceramic tile contractors who install both walls and floors, get the PLS FT 90 combo pack which includes the PLS 2 cross line laser with magnetic wall bracket. Speed the installation of ceramic tile by following crisp and accurate lines on the floor. Eliminate costly mistakes and compound errors by establishing 90 degree (square) floor layout with bright laser lines from the durable cast aluminum FT 90.
