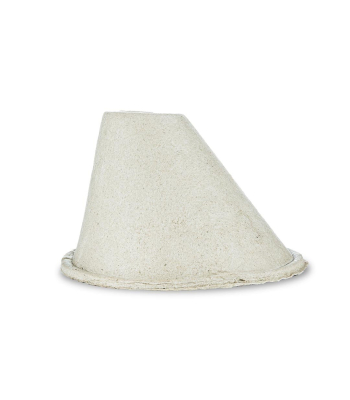

PHS Down Light Hood - Fire Rated - 240mm - 250mm - 160mm - Code AR9046A

Length: 240mm

Width: 250mm

Height: 160mm

The PHS Downlight Hood – Fire Rated allows for safe and efficient use of recessed downlights. It’s F-cap allows for insulation to be fitted against the hood, as well as above it, enabling a continuous airtight and thermal envelope to be maintained, and increasing the heating efficiency of the building space while also reducing the risk of surface condensation.

Recessed downlights represent a potential fire hazard, caused by heat loss and surface condensation. They should be installed at a minimum distance from insulation to prevent cold bridges in the thermal envelope which can result in surface condensation as the warm, moist, internal air condenses on the cold, uninsulated surface. The downlight is also likely to cause air leakage.

Applications:

• All construction types.
• Ceiling hoods for recessed downlights.

Features & Benefits:

• F-Capped Flanged Fire Hood 30 minutes fire rated.
• Tested for 50-Watt lamps.
• Thermal test BS EN 60598 Section 12.4 and BS 476 Part 20.
• IP6X dust tight.

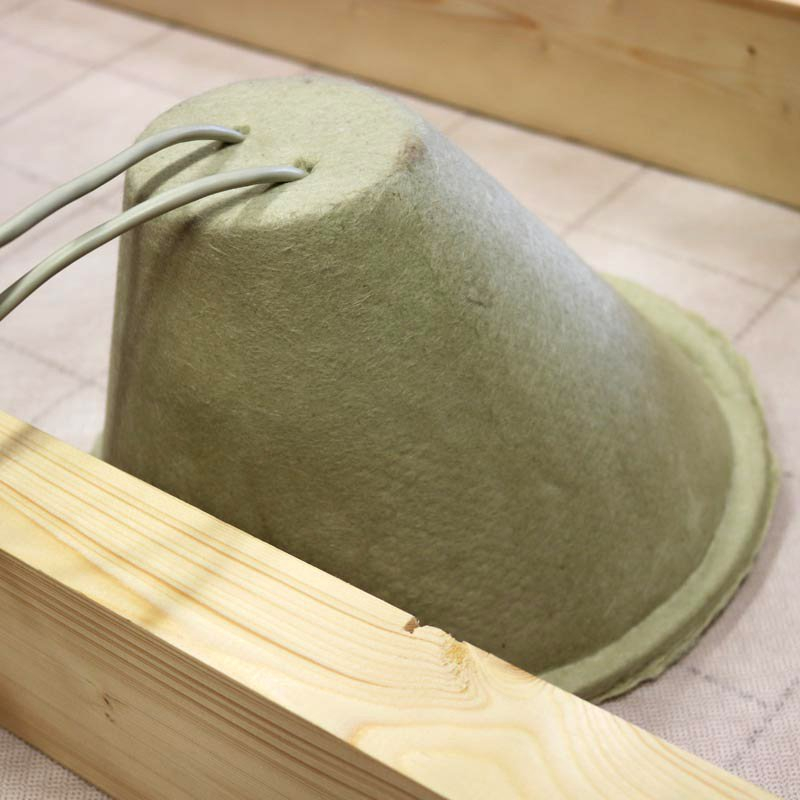

• Easily fitted – simply drop over light fitting and seal with mastic to form vapour seal.
• Save energy by limiting heat loss into loft space.
• Allows continuous insulation over lights.
• Fully tested to prevent overheating.
• Reduces fire risk by keeping combustibles away from hot downlight.
• Rigid and capable of supporting loft insulation away from light fitting.

Attributes

• Fire rated F-cap cone, for internal use
• Mineral Fibre, easy to bore holes
• Max Bulb Power: 50w
• Thermal Test: Pass BS EN 60598-1, BS EN 60598-2-2
• Needle Flame Test: Pass BS EN 60695-11
• Glow Wire Tested 650°C: Pass BS EN 60695-2-10
• Light Fitting Suitability: Halogen & LED
• Fire Rating: 30mins
