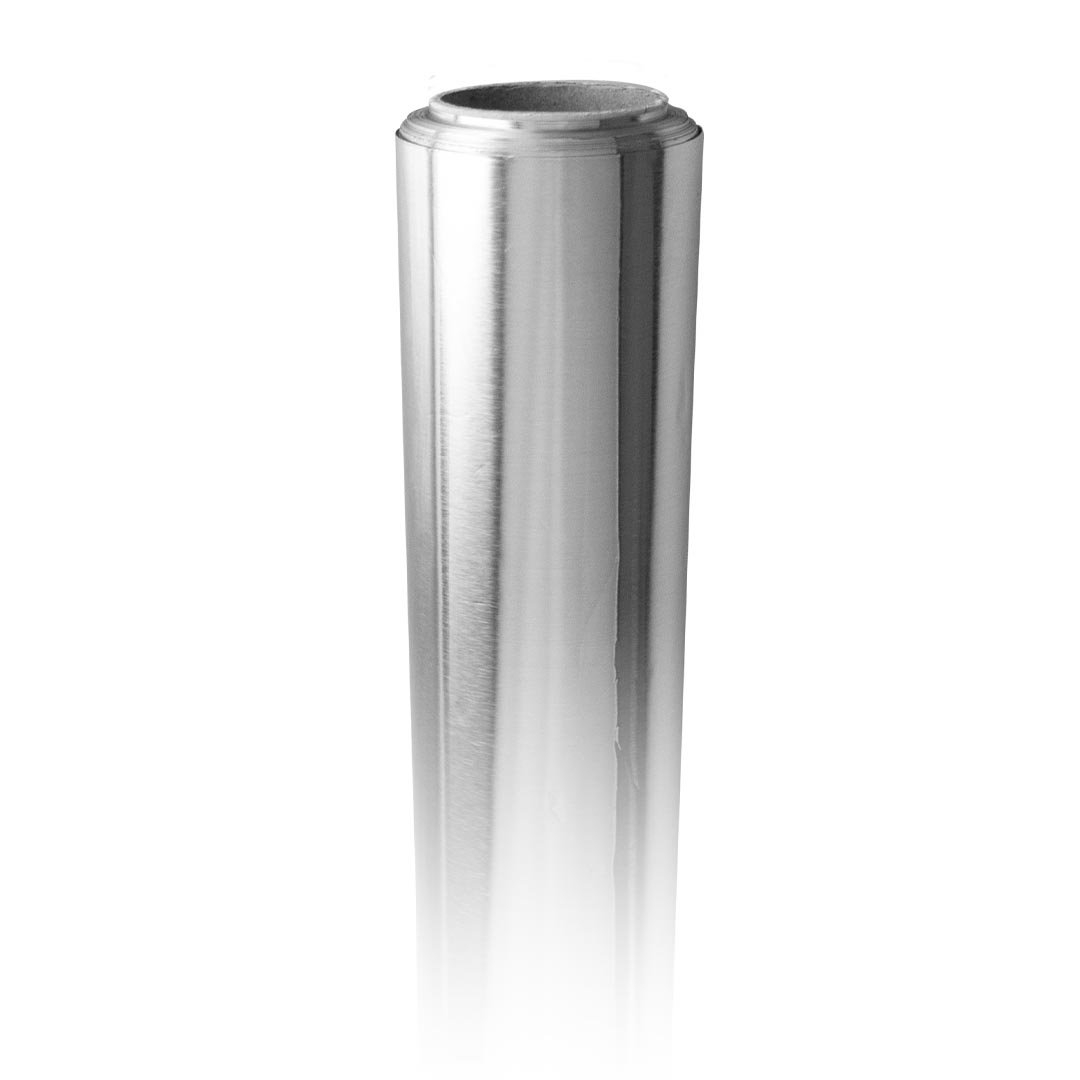

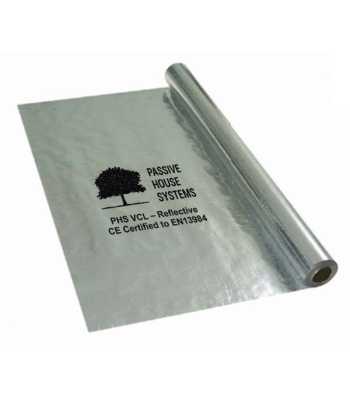

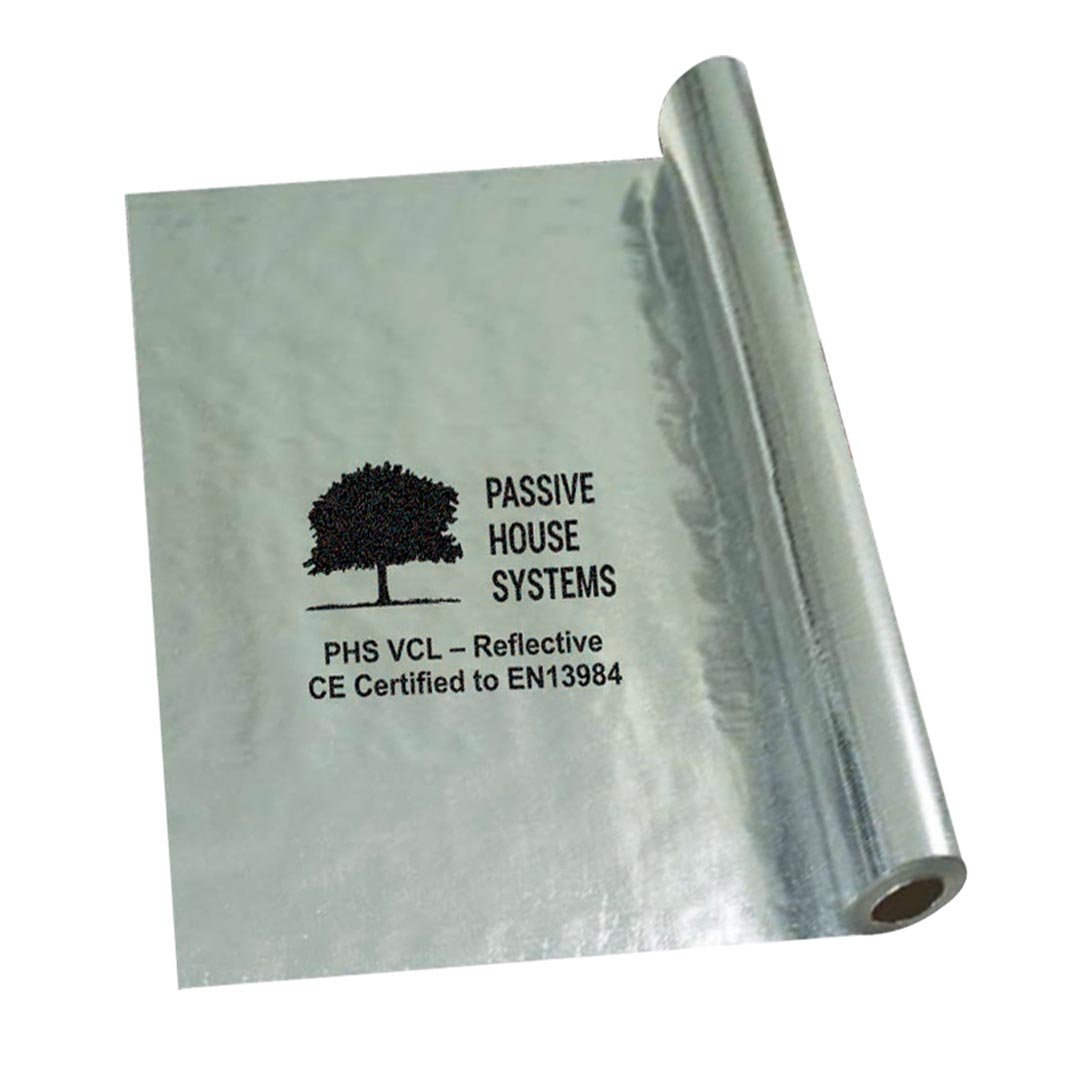

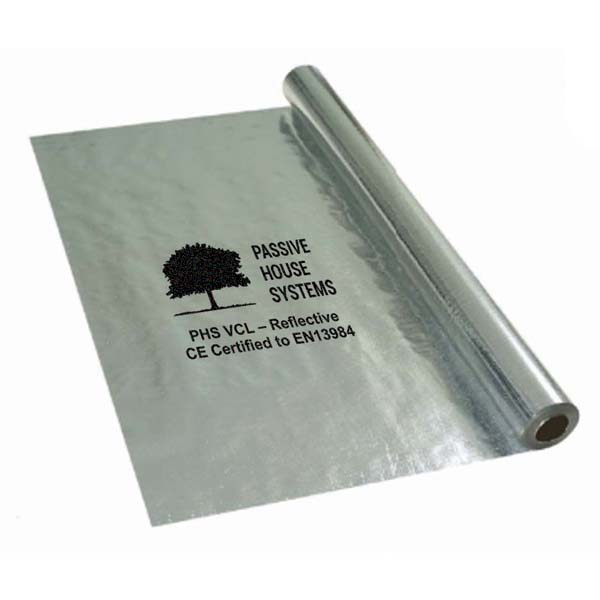

PHS Hi-Thermia - 60m - 1200mm - Code AR9091A

Length: 60m

Width: 1200mm

PHS Hi-Thermia reflective membrane is a very durable and robust vapour control layer (VCL), applied internally. It’s metallised surface reflects up to 97% radiant heat back into the building which enhances thermal performance. It has a very low emissivity and a high vapour resistance, so when installed continuously with all laps and penetrations sealed it provides efficient condensation control in all building types.

Applications:

• Interior installation to create an airtight envelope.
• All construction types.
• Warm and cold pitched roof.
• Ceilings, walls, suspended floors and loft spaces.

Features & Benefits:

• High vapour resistance of 750MNs/g.
• Improves airtightness and thermal performance.
• R value of 0.79m²K/W when used with a minimum 19mm service cavity.
• Meets Building Regulations Part L.
• Increases building energy effciency.

Attributes

• Metalised VCL with very low emissivity.
• Enhances thermal efficiency.
• Effective condensation control in all building types.
• Tensile Strength Longitudinal:416N/50mm
• Tensile Strength Transverse: 371N/50mm
• Thickness: 0.18mm
• Mass per Unit Area: 115g/m²
• Water Penetration Resistance: Class W1
• μ=Value: 8,330
