PLS HVL100 Line Laser 360 Degree Horizontal and Vertical Lines System - Code 60561

  • 360-degree coverage
  • Display horizontal, plumb, square
  • Self-leveling within ±4 degrees
  • Up to 100-foot range
  • Optional SLD laser receiver
  • ±1/8-inch accuracy at 60 feet
  • IP54 dust and water-resistant
  • 5/8-11 tripod thread

The Pacific Laser Systems PLS HVL100 Line Laser 60560 projects multiple beams for layout, level, plumb, and square alignment. It is self-leveling within 4 degrees and has a working range up to 100 feet outdoors when used with the optional SLD line receiver. There are two 180-degree fan beams and two vertical lines with an accuracy of ±1/8-inch at 60 feet. It has 5/8 x 11 thread for use with a tripod and provides up to 6 hours of continuous use.

Multiple Applications

Use the PLS HVL100 level laser to level and plumb shelving, appliances, as well as ceiling work. You can also layout cabinets, flooring tile, and electrical or HVAC projects.

Optional SLD Line Receiver

There is an optional SLD line receiver or detector that is sensitive enough to read the beams at long distances. This provides the longest possible working range and comes in handy for outdoor projects.

Additional Features

The Pacific Laser Systems HVL100 laser level has separate indoor and outdoor modes. And, it will not project the beams when it is tilted or moved out of self-leveling range.

This multiple beam level includes batteries, a wall mount, 2 floor laser targets, carrying case, and a 3 year limited warranty.

  • 100-foot exterior range with laser receiver
  • ±1/8-inch accuracy at 60 feet
  • Optional SLD laser receiver
  • Self-leveling within ±4 degrees
  • 360-degree full coverage leveling
  • Wall mount
  • 5/8 - 11 tripod thread
  • IP54 dust and splashing water
  • Auto shut-off of beams when out of self-leveling range
  • Outdoor pulsing mode for use with receiver
  • Impact-resistant molding
  • Laser targets
  • Hard carrying case
  • 3 year limited warranty

General

  • Warranty: 3 year limited
  • Weight: 4lb. 6 oz. (2kg) w/batteries (level only)
  • Laser Type: 635nm +/-10nm (Red)
  • Dimensions: 8 inch x 3 ¾ inch x 11 ½ inch (20cm x 10cm x28cm)
  • Laser Class: II (in accordance with IEC 60825-1)

Measuring Capabilities

  • Leveling Accuracy: +/- 1/8" @ 60 Feet (+/- 3mm @ 20 meters)
  • Working Range: +/-100 Feet (+/- 30 meters) (outdoor w/detector)
  • Self-Leveling Range: +/- 4 Degrees
  • Range with Receiver: +/-100 Feet (+/- 30 meters) (outdoor w/detector)
  • Number of Points: 1
  • Number of Lines: (Planes) 4
  • Beam Direction: Horizontal and vertical
  • Horizontal Accuracy: +/- 1/8" @ 60 Feet (+/- 3mm @ 20 meters)

Battery/Power

  • Operating Temperature: 14 F to 113 F (-10C to +45C)
  • Operating Time: 6 hours continuous use with all beams
  • Power Source: 4AA batteries alkaline or rechargeable

Applications

  • Transferring Points from Floor to Ceiling: Yes
  • Installing Windows and Partition Walls: Yes
  • Transferring Points from Wall to Wall: Yes
  • Flooring and Tile Layout: Yes
  • Leveling and Excavation: Yes

Functions

  • Plumbing Up and Down: Yes
  • Setting out Right Angles: Yes
  • Horizontal Leveling: Yes
  • Vertical Aligning: Yes
  • Vertical and Horizontal Aligning: Yes

Features

  • Tripod Thread: 5/8 - 11
  • Environmental Class: IP54 (equipment is protected against dust and splashing water)
  • Self-Leveling: Yes

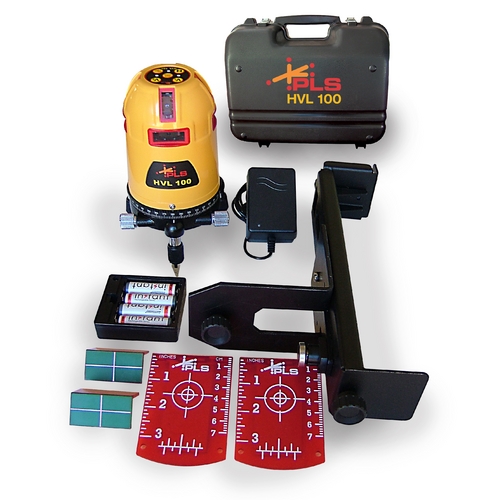

Comes With

Hard carry case

HVL100 Laser

Good quality rugged wall mount

2 x ceiling targets

2 x layout targets

2 x sets (4) rechargeable batteries

Charger

PLS SLD Detector

Brand: Pacific Laser Systems

Identifier: 60561

PLS Pacific Laser Systems

Published on Thu 28th August 2014 by D Courtney

PLS laser tools are designed to be a career purchase with a lifetime of profit and productivity.

Foundations


General, new residential and remodeling contractors will appreciate the simple set up and accurate layout for basements, concrete slab and decks.

Interiors


Commercial and remodeling contractors will save layout time, verify existing conditions and improve installation for electrical, HVAC, tile, glazing, staging and more.

Partitions


Multi story commercial, light industrial, drywall, masonry and tilt-up will realize labor efficiencies, while reducing compound errors and rework.

THE PLS EDGE


PLS - PACIFIC LASER SYSTEMS MANUFACTURES THE HIGHEST QUALITY LAYOUT TOOLS FOR THE PROFESSIONAL CONTRACTOR.

PLS are dedicated to designing career laser tools for a lifetime of increased productivity and profit. Fast, accurate and portable, PLS lasers save time and money when your bubble vial level or rotary laser is
too limited or too cumbersome to do the job. When a rotary laser is required for long-midrange vertical and horizontal layout, then our PLS HR or HLE 1000 and PLS HVR 505 will tackle most projects. Compare the advantages of using a PLS laser to traditional methods you now employ.

When comparing PLS laser tools look for these quality features:

1. Beam quality will be bright, small and crisp.
2. Dampening will be quick and stable. The beams will not bounce around.
3. The tools will be self-leveling, easy to use and efficient.

PLS5, PLS4, PLS3, PLS180, PLS360 and PLS90 lasers are designed, calibrated, and assembled in the USA. The PLS HVR, HR, HLE and FT lasers are made for PLS in Asia.

PLS HISTORY


What sets PLS Pacific Laser Systems apart from the rest? Built by contractors for contractors, PLS tools were developed out of necessity by professionals with over 50 years of experience in commercial and residential interior and exterior layout. PLS founders were contractors first before becoming manufacturers of the finest laser alignment tools in the world.

PLS APPLICATIONS


FRAMERS


No more plumb bobs in the wind. Lay out and install track and studs for commercial or residential projects. Use PLS90 to project 90 degree angles in a fraction of the time. No more 3-4-5. Indoor - outdoor application means greater utility and value for your purchase.

ELECTRICIANS


Use the PLS reference plumb points to determine where each light is to be installed. How long would it take you to lay out 50 lights in a vaulted ceiling with two people and a plumb bob?

HOME BUILDERS


Setting up foundations on a slope is always a challenge. Place your PLS90 on the corner of your layout and pull reference points forward and to the side for labor saving layout. Interior walls, stairways, cabinetry, skylights, windows and more can be aligned quickly and accurately with a PLS laser.

HVAC / MECHANICAL


For commercial HVAC, PLS will speed vertical and level layout. Manipulate plumb, level, and square reference anywhere on the job site, regardless of obstacles or weather conditions.

ACOUSTIC CEILINGS


The PLS360 and 505 rotary laser makes layout and installation of acoustic ceilings fast and simple.

GENERAL CONSTRUCTION


The range, versatility and accuracy of our lasers make them ideal tools for checking elevations, setting large pads, leveling forms, square on slope and footings.

TILE


For ceramic tile contractors who install both walls and floors, get the PLS FT 90 combo pack which includes the PLS 2 cross line laser with magnetic wall bracket. Speed the installation of ceramic tile by following crisp and accurate lines on the floor. Eliminate costly mistakes and compound errors by establishing 90 degree (square) floor layout with bright laser lines from the durable cast aluminum FT 90.
