Manufacturer: Presto
List Price: £21.27 (£25.52 inc VAT)
Web Price: (£10.96 ex VAT) £13.15 (inc VAT)

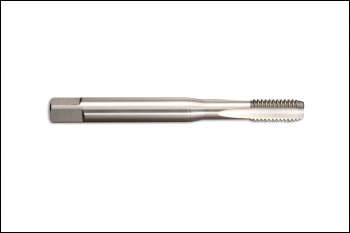

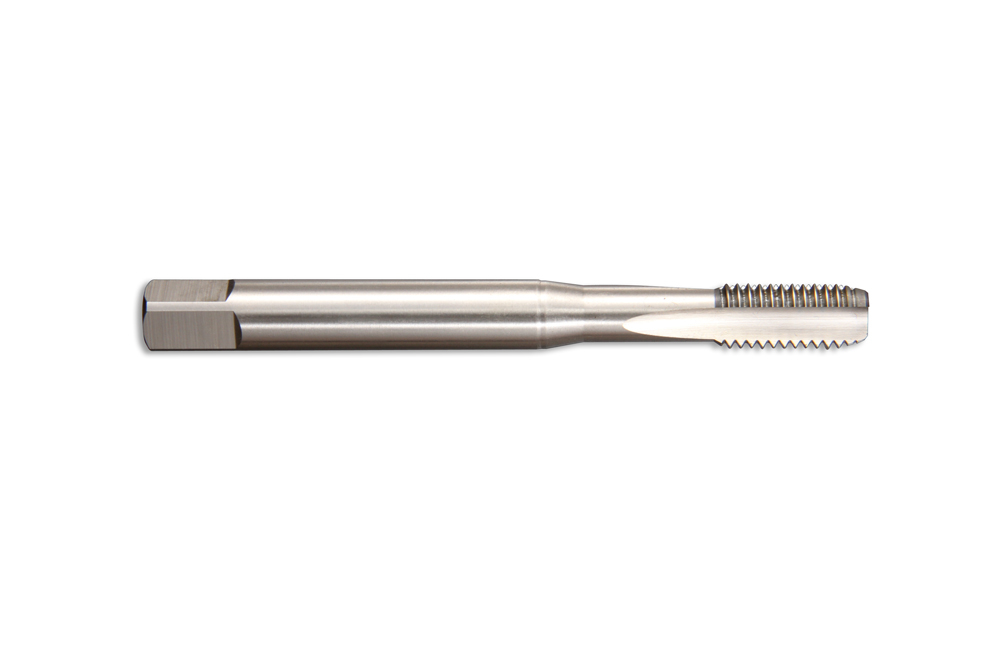

13.15 2024-06-07Straight Flute Machine Tap with short chamfer (2-3 threads) for through and blind holes in free cutting materials up to 850 N/mm2.
Tool Type: Straight Flute Tap
Commodity Code: 82074010
Matrial: HSSE
Finish: Bright Finish
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 631305-02620 | M3 x 0.5 DIN371 M SP/FL Machine Tap - N | 5011315084536 | PL | 1 | 0.005 |
| 631305-02820 | M3.5 x 0.6 DIN371 M SP/FL Machine Tap - N | 5011315084543 | PL | 1 | 0.006 |
| 631305-03020 | M4 x 0.7 DIN371 M SP/FL Machine Tap - N | 5011315084550 | PL | 1 | 0.008 |
| 631305-03220 | M4.5 x 0.75 DIN371 M SP/FL Machine Tap - N | 5011315084567 | PL | 1 | 0.009 |
| 631305-03420 | M5 x 0.8 DIN371 M SP/FL Machine Tap - N | 5011315084574 | PL | 1 | 0.013 |
| 631305-03620 | M6 x 1.0 DIN371 M SP/FL Machine Tap - N | 5011315084581 | PL | 1 | 0.017 |
| 631305-04020 | M8 x 1.25 DIN371 M SP/FL Machine Tap - N | 5011315084611 | PL | 1 | 0.034 |
| 631305-04420 | M10 x 1.5 DIN371 M SP/FL Machine Tap - N | 5011315084628 | PL | 1 | 0.054 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 631305-02620 | M3 x 0.5 | 11mm | 56mm | 3.5 | DIN371 | Right Hand | 2.8 | 5.0 |
| 631305-02820 | M3.5 x 0.6 | 11mm | 56mm | 4.0 | DIN371 | Right Hand | 3.15 | 6.0 |
| 631305-03020 | M4 x 0.7 | 11mm | 63mm | 4.5 | DIN371 | Right Hand | 3.55 | 6.0 |
| 631305-03220 | M4.5 x 0.75 | 13mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631305-03420 | M5 x 0.8 | 13mm | 70mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631305-03620 | M6 x 1.0 | 16mm | 80mm | 6.0 | DIN371 | Right Hand | 5.0 | 8.0 |
| 631305-04020 | M8 x 1.25 | 19mm | 90mm | 8.0 | DIN371 | Right Hand | 6.3 | 9.0 |
| 631305-04420 | M10 x 1.5 | 22mm | 100mm | 10.0 | DIN371 | Right Hand | 8.0 | 11.0 |
