Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109868
Product ID: presto_61117
Related Products: See all related products
Manufacturer: Presto
List Price: £36.52 (£43.82 inc VAT)
Web Price: (£12.30 ex VAT) £14.76 (inc VAT)

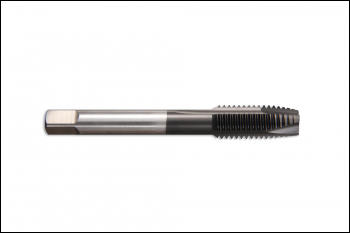

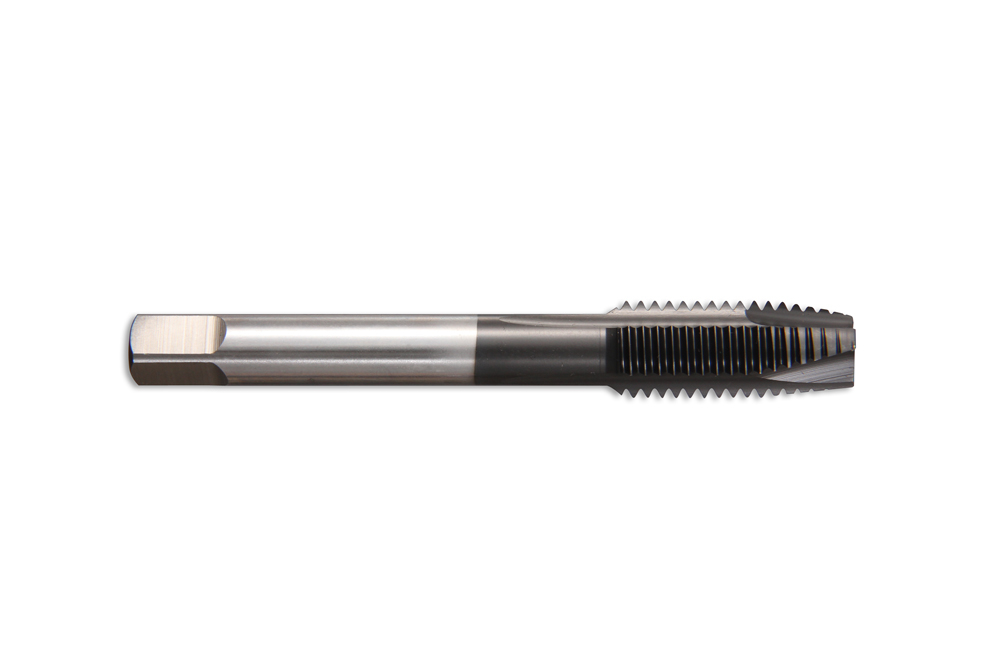

14.76 2024-06-08HSCo Spiral point Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in materials such as Stainless Steel.
Tool Type: Spiral Point Tap
Commodity Code: 82074010
Matrial: Cobalt High Speed Steel
Finish: Titanium Carbo Nitride Coated
Shank Type: Straight Shank
| Code | Description | Barcode | Country | Pack Qty | Kg |
|---|---|---|---|---|---|
| 611173.00.5 | M3 x 0.5 HSCo M Spiral Point Tap - TiCN | 5011315187367 | CN | 1 | 0.0079 |
| 611174.00.7 | M4 x 0.7 HSCo M Spiral Point Tap - TiCN | 5011315187374 | CN | 1 | 0.0096 |
| 611175.00.8 | M5 x 0.8 HSCo M Spiral Point Tap - TiCN | 5011315187381 | CN | 1 | 0.0129 |
| 611176.01.0 | M6 x 1.0 HSCo M Spiral Point Tap - TiCN | 5011315187398 | CN | 1 | 0.018 |
| 611178.01.25 | M8 x 1.25 HSCo M Spiral Point Tap - TiCN | 5011315187404 | CN | 1 | 0.0224 |
| 6111710.01.5 | M10 x 1.50 HSCo M Spiral Point Tap - TiCN | 5011315187411 | CN | 1 | 0.0349 |
| 6111712.01.75 | M12 x 1.75 HSCo M Spiral Point Tap - TiCN | 5011315187428 | CN | 1 | 0.05 |
| 6111714.02.0 | M14 x 2.0 HSCo M Spiral Point Tap - TiCN | 5011315187435 | CN | 1 | 0.0752 |
| 6111716.02.0 | M16 x 2.0 HSCo M Spiral Point Tap - TiCN | 5011315187442 | CN | 1 | 0.1056 |
| 6111718.02.5 | M18 x 2.5 HSCo M Spiral Point Tap - TiCN | 5011315187459 | CN | 1 | 0.1394 |
| 6111720.02.5 | M20 x 2.5 HSCo M Spiral Point Tap - TiCN | 5011315187466 | CN | 1 | 0.1552 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A/F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 611173.00.5 | M3 x 0.5 | 16mm | 48mm | 3.15 | ISO529 | Right Hand | 2.5 | 5.0 |
| 611174.00.7 | M4 x 0.7 | 13mm | 53mm | 4.0 | ISO529 | Right Hand | 3.15 | 6.0 |
| 611175.00.8 | M5 x 0.8 | 16mm | 58mm | 5.0 | ISO529 | Right Hand | 4.0 | 7.0 |
| 611176.01.0 | M6 x 1.0 | 19mm | 66mm | 6.3 | ISO529 | Right Hand | 5.0 | 8.0 |
| 611178.01.25 | M8 x 1.25 | 22mm | 72mm | 8.0 | ISO529 | Right Hand | 6.3 | 9.0 |
| 6111710.01.5 | M10 x 1.50 | 24mm | 80mm | 10.0 | ISO529 | Right Hand | 8.0 | 11.0 |
| 6111712.01.75 | M12 x 1.75 | 29mm | 89mm | 9.0 | ISO529 | Right Hand | 7.1 | 10.0 |
| 6111714.02.0 | M14 x 2.0 | 30mm | 95mm | 11.2 | ISO529 | Right Hand | 9.0 | 12.0 |
| 6111716.02.0 | M16 x 2.0 | 32mm | 102mm | 12.5 | ISO529 | Right Hand | 10.0 | 13.0 |
| 6111718.02.5 | M18 x 2.5 | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
| 6111720.02.5 | M20 x 2.5 | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
Brand: Presto
Identifier: 61117
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
A range of HSCo DIN338 Jobber Drill Sets supplied in a metal tin. Metric or imperial are available in various size range options. Tool Type: Drill Set Commodity Code: 82075060 ... read on
HSCo Spiral Flute Machine tap with a surface treatment for tough steels with elasticity >30%. The unique geometry helps to avoid pick up and resists work hardening tendencies in ma... read on
Design and application like List-No. 02401. TiN / TiAlN coating provides longer tool life or increased cutting speeds.Tool Type: Stub DrillCommodity Code: 82075060Matrial: Cobalt H... read on
Design and application like List-No. 04161. TiN / TiAlN coating provides longer tool life or increased cutting speeds.Tool Type: Long Series DrillCommodity Code: 82075060Matrial: C... read on
Special Twist Drill for precisely positioned drilling on NC-machines. For centring, deburring and chamfering of tapping drill holes. Not suitable for deep holes.Tool Type: Spot Dri... read on
A range of HSCo DIN338 Jobber Drill Sets supplied in a metal tin. Metric or imperial are available in various size range options.Tool Type: Drill SetCommodity Code: 82075060Matrial... read on
Heavy-duty drill made of cobalt material with excellent heat resistance. To drill steels with tensile strength up to 1.400 N/mm2, very hard bronze, stainless steels as well as heat... read on
| Option | Price Difference | |
|---|---|---|
| M3 x 0.5 HSCo M Spiral Point Tap - TiCN - 611173.00.5 | none | |
| M4 x 0.7 HSCo M Spiral Point Tap - TiCN - 611174.00.7 | none | |
| M5 x 0.8 HSCo M Spiral Point Tap - TiCN - 611175.00.8 | none | |
| M6 x 1.0 HSCo M Spiral Point Tap - TiCN - 611176.01.0 | +£0.22 | |
| M8 x 1.25 HSCo M Spiral Point Tap - TiCN - 611178.01.25 | +£5.64 | |
| M10 x 1.50 HSCo M Spiral Point Tap - TiCN - 6111710.01.5 | +£9.38 | |
| M12 x 1.75 HSCo M Spiral Point Tap - TiCN - 6111712.01.75 | +£16.14 | |
| M14 x 2.0 HSCo M Spiral Point Tap - TiCN - 6111714.02.0 | +£20.69 | |
| M16 x 2.0 HSCo M Spiral Point Tap - TiCN - 6111716.02.0 | +£25.05 | |
| M18 x 2.5 HSCo M Spiral Point Tap - TiCN - 6111718.02.5 | +£33.56 | |
| M20 x 2.5 HSCo M Spiral Point Tap - TiCN - 6111720.02.5 | +£52.15 |
