Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @109861
Product ID: presto_60220
Related Products: See all related products
Manufacturer: Presto
List Price: £131.44 (£157.73 inc VAT)
Web Price: (£16.80 ex VAT) £20.16 (inc VAT)

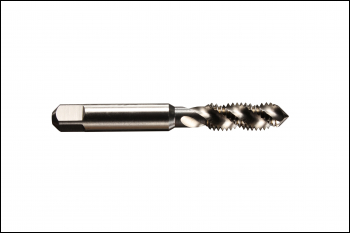

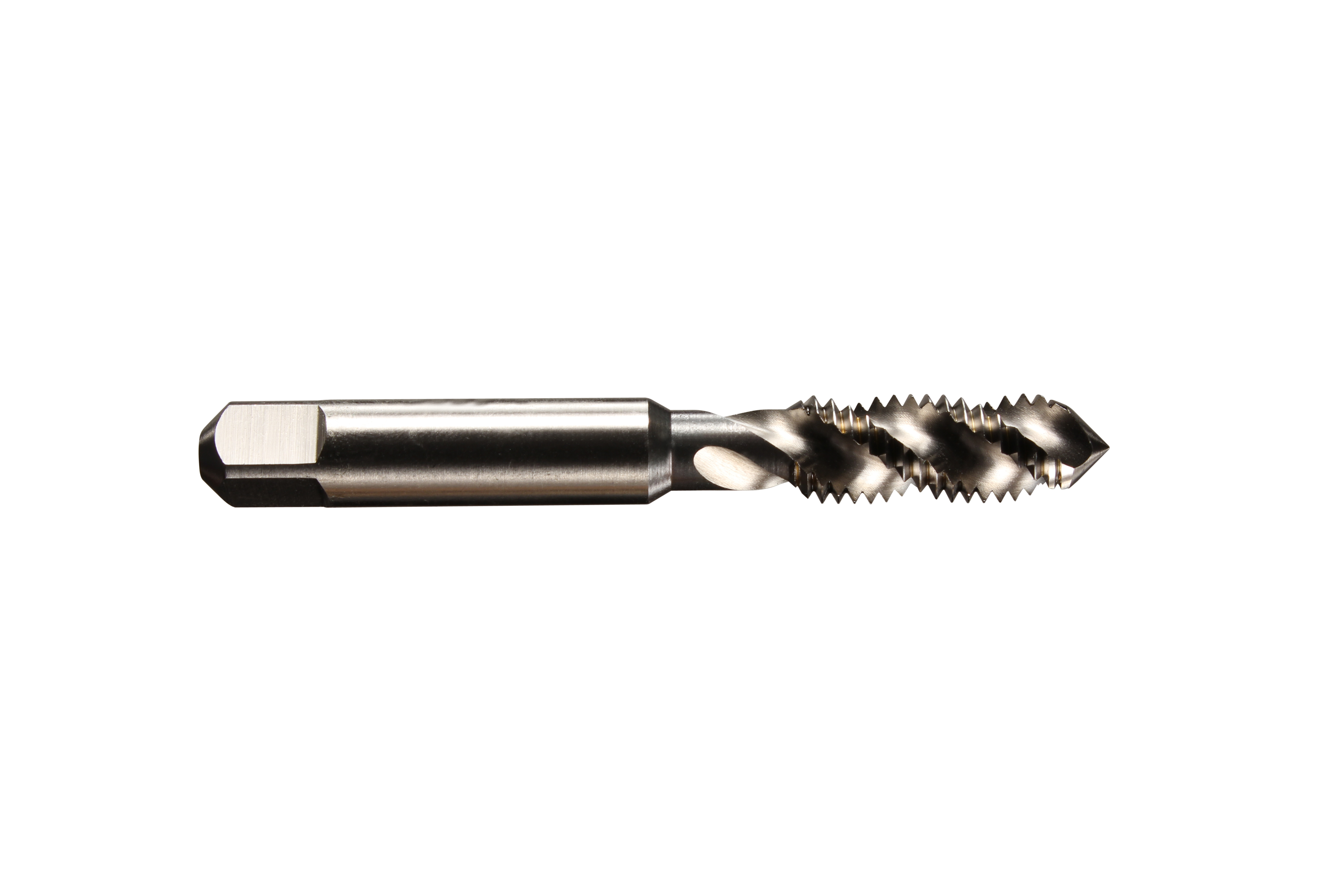

20.16 2024-06-05Machine tap with 40°-spiral flute. Short chamfer permits work on steel up to 750 N/mm2. and Aluminium alloys with more than 0.5% Si.
Tool Type: Spiral Flute Tap
Commodity Code: 82074010
Matrial: High Speed Steel
Finish: Bright Finish
Shank Type: Straight Shank
Cutting Direction: Normal
| Code | Description | Barcode | Country of Origin | Country | Pack Qty | Weight (kg) |
|---|---|---|---|---|---|---|
| 6022010N | No.10 x 32 UNF HSS UNF Spiral Flute Tap | 5011315075640 | CN | China | 1 | 0.0091 |
| 60220-14 | 1/4" x 28 UNF HSS UNF Spiral Flute Tap | 5011315075657 | DE | Germany | 1 | 0.0151 |
| 60220-516 | 5/16" x 24 UNF HSS UNF Spiral Flute Tap | 5011315075664 | DE | Germany | 1 | 0.0247 |
| 60220-38 | 3/8" x 24 UNF HSS UNF Spiral Flute Tap | 5011315075671 | CN | China | 1 | 0.0459 |
| 60220-716 | 7/16" x 20 UNF HSS UNF Spiral Flute Tap | 5011315075688 | CN | China | 1 | 0.0421 |
| 60220-12 | 1/2" x 20 UNF HSS UNF Spiral Flute Tap | 5011315075695 | DE | Germany | 1 | 0.0531 |
| 60220-916 | 9/16" x 18 UNF HSS UNF Spiral Flute Tap | 5011315075701 | DE | Germany | 1 | 0.0827 |
| 60220-58 | 5/8" x 18 UNF HSS UNF Spiral Flute Tap | 5011315075718 | DE | Germany | 1 | 0.1002 |
| 60220-34 | 3/4" x 16 UNF HSS UNF Spiral Flute Tap | 5011315075725 | CN | China | 1 | 0.1391 |
| 60220-78 | 7/8" x 14 UNF HSS UNF Spiral Flute Tap | 5011315075732 | CN | China | 1 | 0.1952 |
| 602201- | 1" x 12 UNF HSS UNF Spiral Flute Tap | 5011315075749 | CN | China | 1 | 0.2705 |
| Code | Size | Flute Length | Overall Length | Shank Diam | Helix Angle | Square A / F | Square Length | Tapping Drill Diam |
|---|---|---|---|---|---|---|---|---|
| 6022010N | No.10 x 32 UNF | 16mm | 58mm | 5.0 | ISO529 | Right Hand | 4.0 | 7.0 |
| 60220-14 | 1/4" x 28 UNF | 19mm | 66mm | 6.3 | ISO529 | Right Hand | 5.0 | 8.0 |
| 60220-516 | 5/16" x 24 UNF | 22mm | 72mm | 8.0 | ISO529 | Right Hand | 6.3 | 9.0 |
| 60220-38 | 3/8" x 24 UNF | 24mm | 80mm | 10.0 | ISO529 | Right Hand | 8.0 | 11.0 |
| 60220-716 | 7/16" x 20 UNF | 25mm | 85mm | 8.0 | ISO529 | Right Hand | 6.3 | 9.0 |
| 60220-12 | 1/2" x 20 UNF | 29mm | 89mm | 9.0 | ISO529 | Right Hand | 7.1 | 10.0 |
| 60220-916 | 9/16" x 18 UNF | 30mm | 95mm | 11.2 | ISO529 | Right Hand | 9.0 | 12.0 |
| 60220-58 | 5/8" x 18 UNF | 32mm | 102mm | 12.5 | ISO529 | Right Hand | 10.0 | 13.0 |
| 60220-34 | 3/4" x 16 UNF | 37mm | 112mm | 14.0 | ISO529 | Right Hand | 11.2 | 14.0 |
| 60220-78 | 7/8" x 14 UNF | 38mm | 118mm | 16.0 | ISO529 | Right Hand | 12.5 | 16.0 |
| 602201- | 1" x 12 UNF | 45mm | 130mm | 18.0 | ISO529 | Right Hand | 14.0 | 18.0 |
