SCH 180L Towed Sprayer - Ref GWCS9

Description

The GWCS9 180L Towed Sprayer is a versatile, high-performance solution for the precise application of herbicides, pesticides, and fertilisers across large and small areas.

Designed with both efficiency and operator safety in mind, it combines robust construction with intelligent features to deliver consistent, reliable spraying results.

Key Features & Benefits

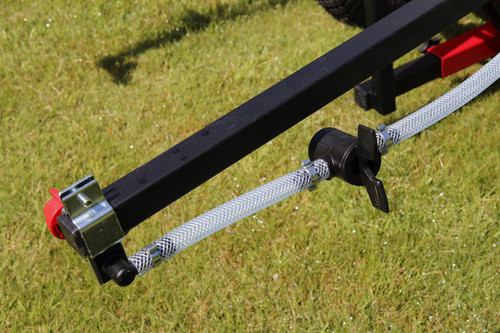

Adjustable Four-Nozzle Spray Boom
The sprayer features a four-nozzle boom with a maximum width of 2,440mm (96"). The two outer nozzles are mounted on break-back sections that fold back upon contact with obstacles, reducing damage risk. For smaller areas, the outer nozzles can be individually isolated to narrow the spray width to 1,220mm (48"), providing versatile coverage for any task.
Height-Adjustable & Removable Boom
The spray boom can be adjusted to suit different towing heights and easily removed for safe storage, ensuring convenient transport and minimal setup time.

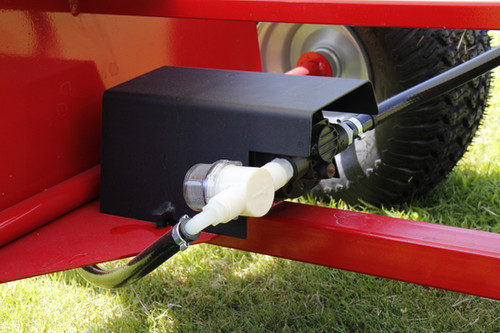

Reliable 12V Diaphragm Pump
Powered by the tractor’s battery, the durable 12-volt diaphragm pump delivers consistent pressure and includes inline filters to minimise nozzle blockages, ensuring uninterrupted operation.
Anti-Drip Nozzle Holders
Nozzles feature anti-drip valves, stopping flow immediately when the pump is turned off, preventing waste and ensuring precise application.
Brass Hand Trigger Lance
Supplied with a high-quality brass hand lance with quick-connect fittings, allowing accurate spot spraying in hard-to-reach areas such as around trees, shrubs, and garden features.

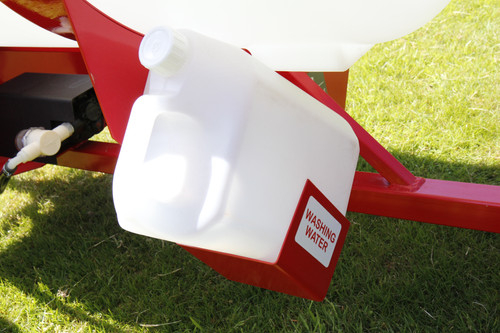

Integrated Safety Wash Bottle
Features a 5-litre wash bottle mounted on the chassis, enabling immediate rinsing in the event of contact with spray liquids and thereby enhancing operator safety.
Fully Assembled & Ready to Use
Delivered assembled for quick deployment and immediate operation.

Optional Accessories

Hand Lance Shroud
Dribble Bar

The GWCS9 Towed Sprayer is designed for maximum efficiency, safety, and versatility - making it ideal for agricultural, horticultural, and grounds maintenance applications.

Specification

Tank capacity	180 Litres (40 Gallon)
Pump	12V, 7L per min at 50psi (max)
Boom folded	1220mm (48")
Spray Width	2440mm (96")
Width of sprayer	Without boom 860mm (34")
Wheels	Two 15/600 x 6

Brand: SCH Supplies Limited

Identifier: GWCS9
