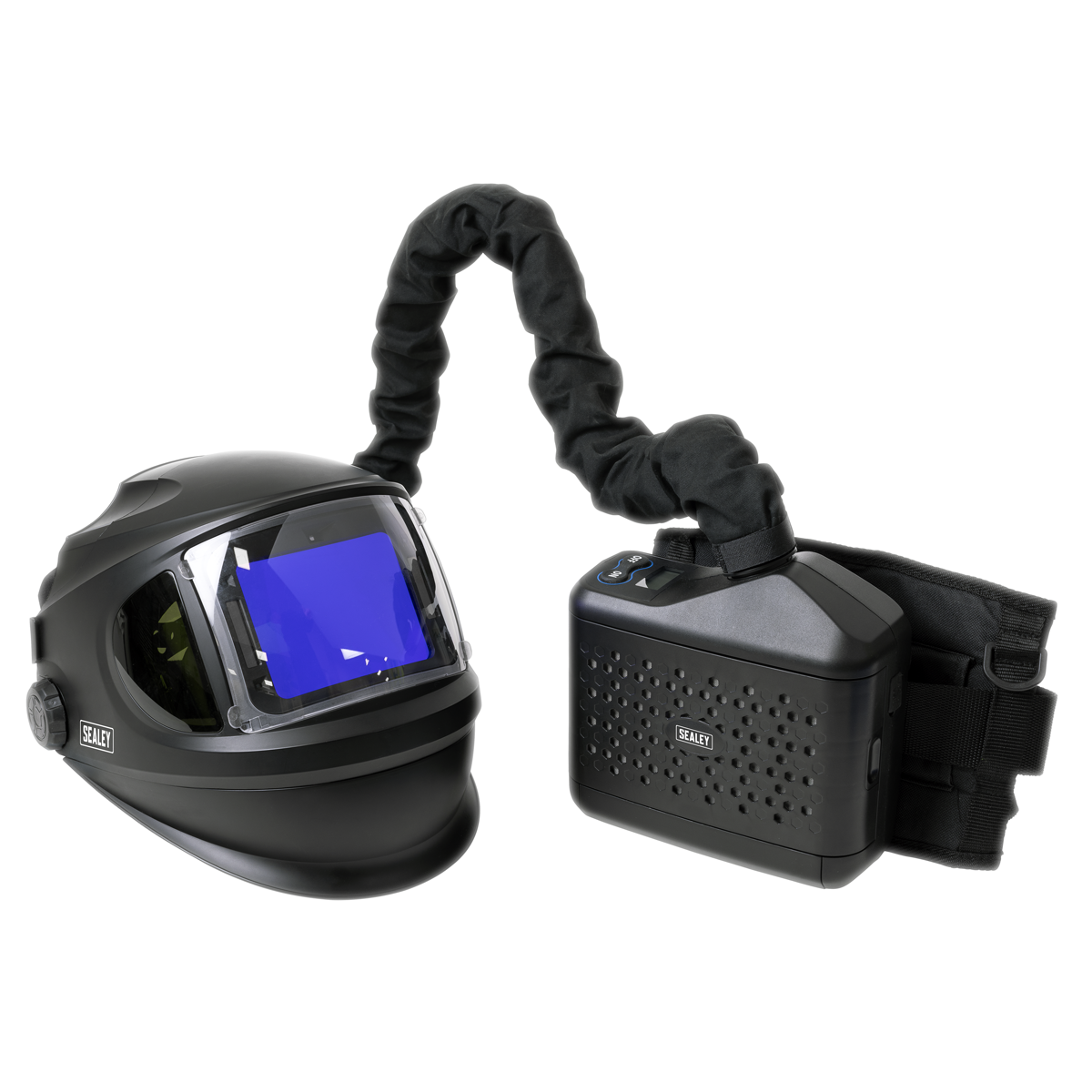

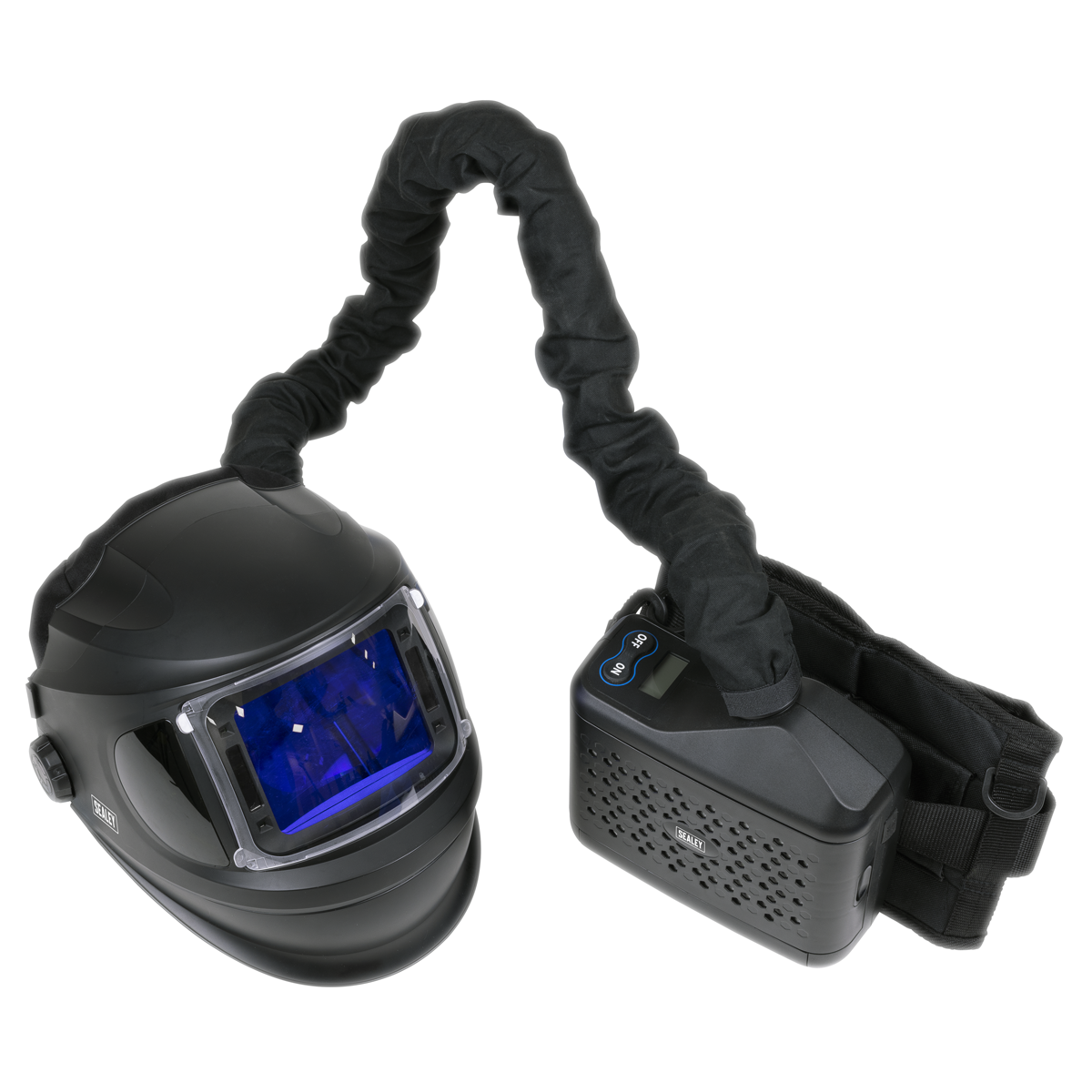

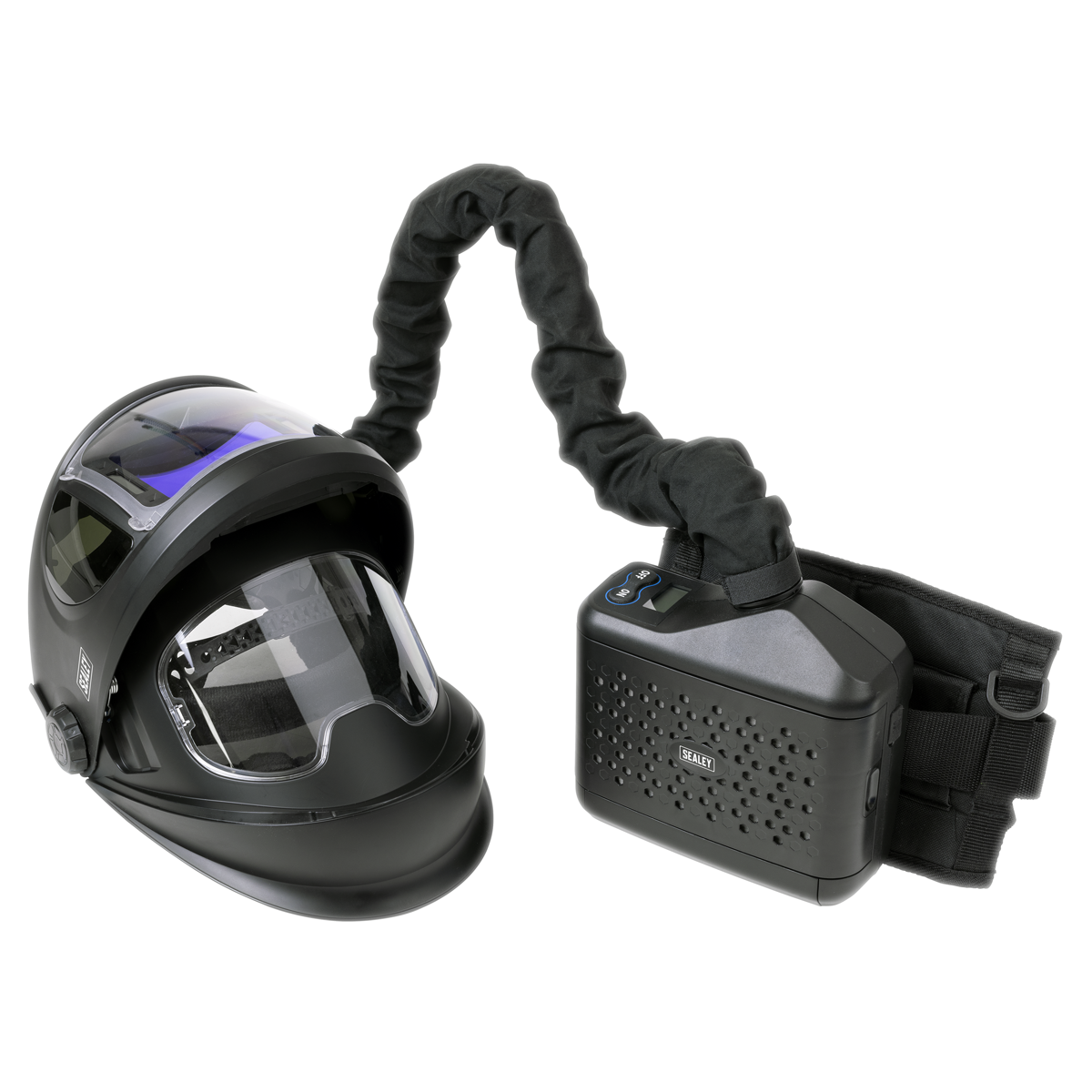

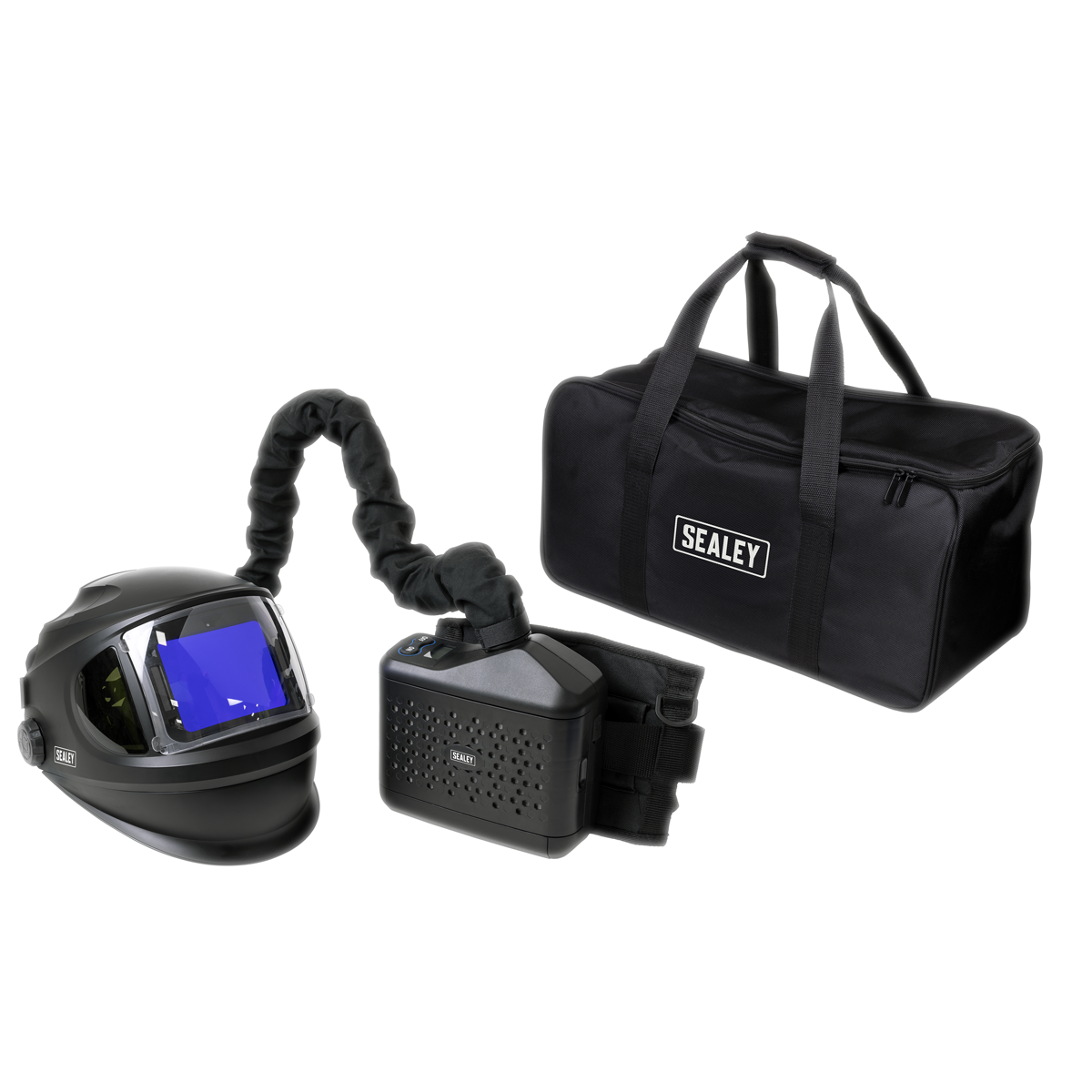

Sealey PWH618 Auto Darkening Welding Helmet with TH3 Powered Air Purifying Respirator (PAPR)

PAPR (Powered Air Purifying Respirator) system with auto darkening welding helmet. Large viewing area of 108mm x 74mm and two panoramic side view lenses. True colour technology for improved depth perception, allowing far greater welding precision. Digital control panel easily switches between modes and set delay, sensitivity and shade settings. Also includes memory save function to preset and save up to 10 personalised settings. Lithium battery powered respirator unit provides the user with a constant filtered stream of air to their head and face for up to approximately 6hrs on the highest setting. The filter is designed to reduce or remove dust and particles but not vapours and gases. The kit meets performance class TH3 (Less than 0.2% inward leakage) according to EN 12941:1998/A2:2008. Adjustable airflow settings of 170/200L and 230L min. Features an audible alarm to alert user of low battery/low airflow. Welding helmet has adjustable shade control from 9-14 and 5-8. Fully automatic switching from light to dark on striking arc @ 1/25,000s. Suitable for MIG, TIG MMA/arc welding, cutting and grinding. Complies with all EN 379, EN 175, EN 12941 and DIN standards.

  • PAPR (Powered Air Purifying Respirator) system with auto darkening welding helmet.

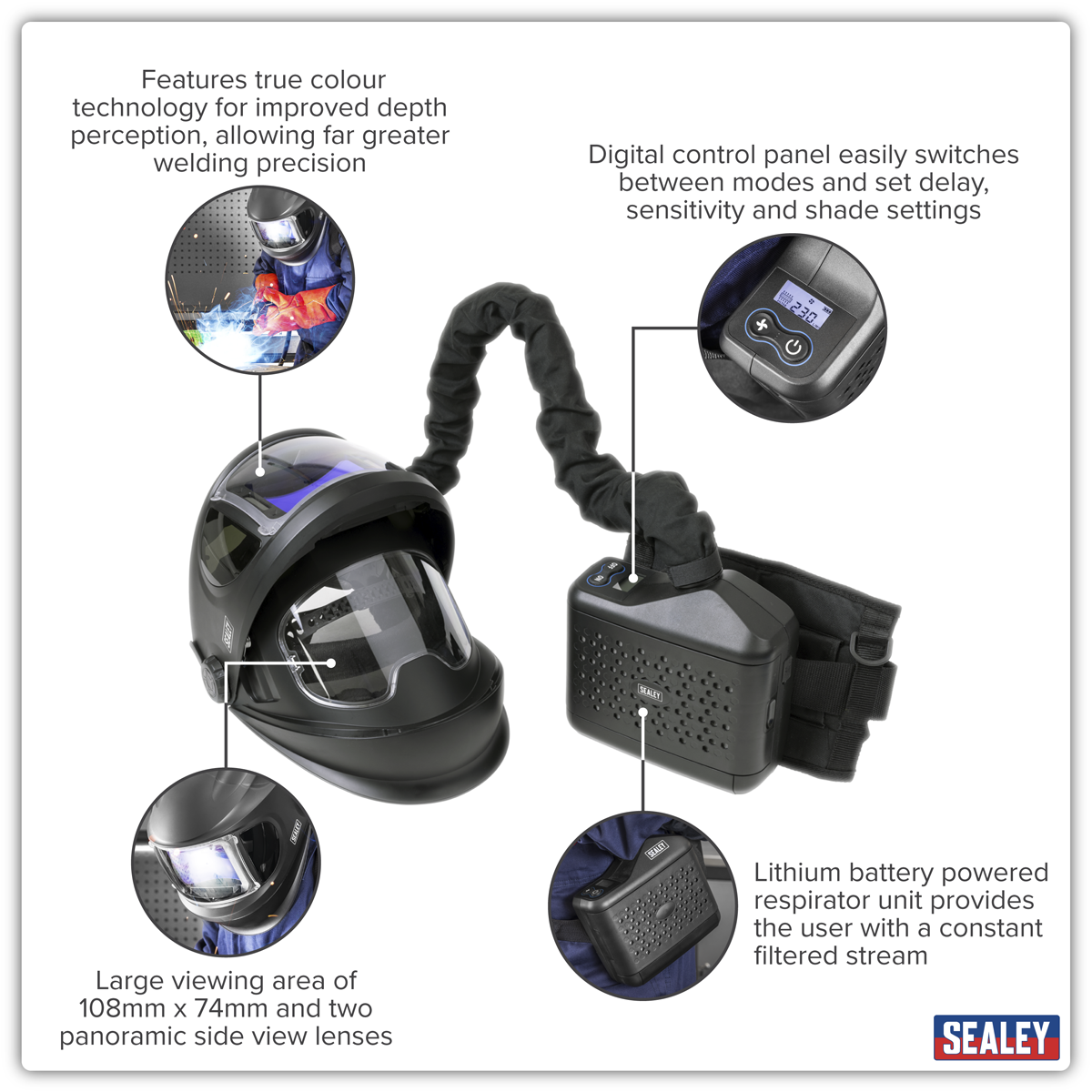

  • Large viewing area of 108mm x 74mm and two panoramic side view lenses.
  • True colour technology for improved depth perception, allowing far greater welding precision.
  • Digital control panel easily switches between modes and set delay, sensitivity and shade settings. Also includes memory save function to preset and save up to 10 personalised settings.
  • Lithium battery powered respirator unit provides the user with a constant filtered stream of air to their head and face for up to approximately 6hrs on the highest setting.

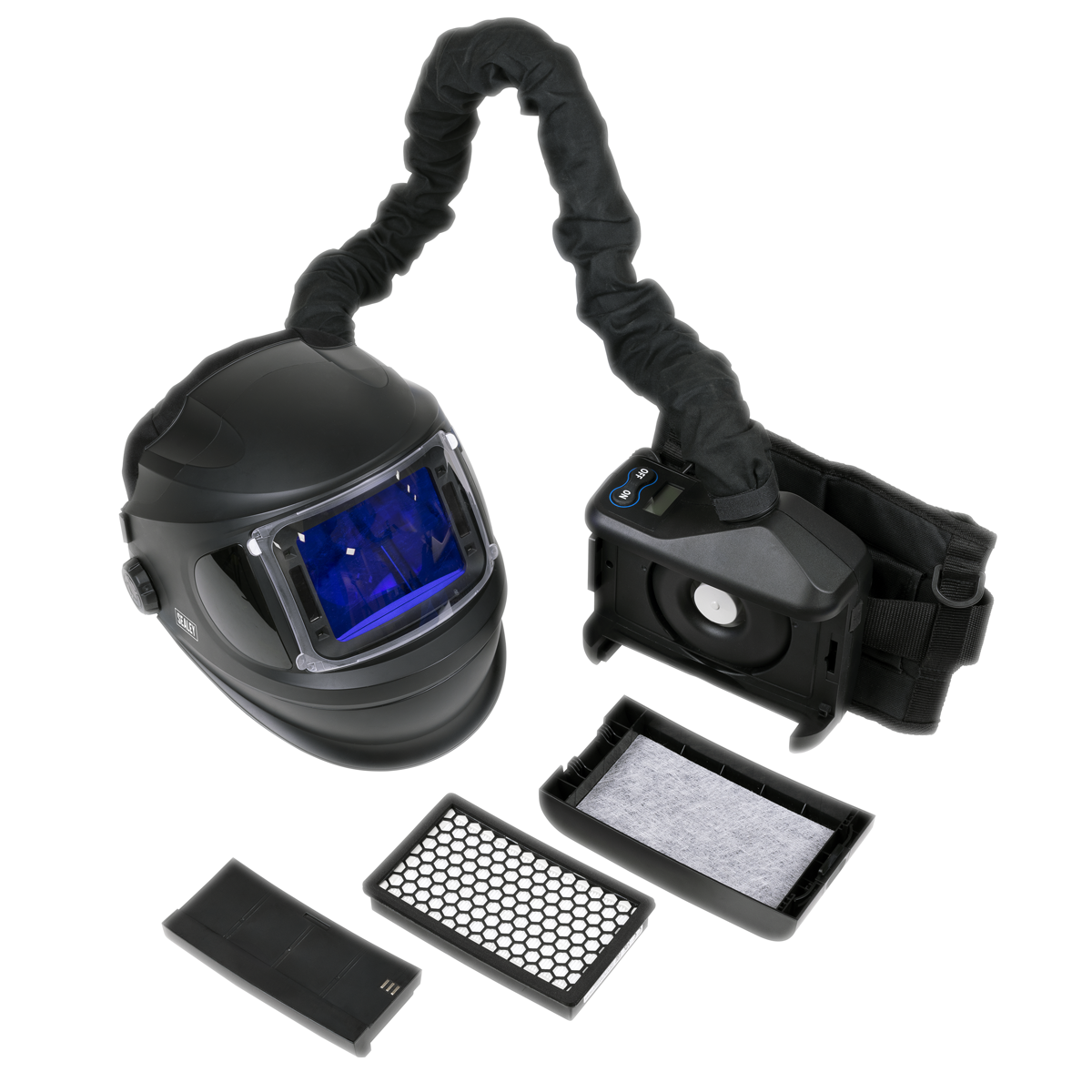

  • The filter is designed to reduce or remove dust and particles but not vapours and gases.
  • The kit meets performance class TH3 (less than 0.2% inward leakage) according to EN 12941:1998/A2:2008.
  • Adjustable airflow settings of 170/200L and 230L/min.
  • Features an audible alarm to alert user of low battery/low airflow.
  • Welding helmet has adjustable shade control from 9-14 and 5-8.
  • Fully automatic switching from light to dark on striking arc @ 1/25,000s.
  • Suitable for MIG, TIG MMA/arc welding, cutting and grinding.
  • Complies with all EN 379, EN 175, EN 12941 and DIN standards.
  • Model No. PWH618

Technical Specifications

  • Model No PWH618
  • Brand: Sealey
  • Grinding Function: Yes
  • Nett Weight: 3.5kg
  • Operating Temperature: -10? to 60?
  • Operating Time Light/Dark: 0.04-2.0s (Digital Control)
  • Power: Lithium Cell Battery
  • PAPR Specifications:
  • Airflow Settings: Adjustable 170/200/230L/min
  • Charging Time: 2hr
  • Working Time: 6hr
  • Filter: TH3 P R SL
  • Shade Active: Weld- 9 -13 Cut- 4-8 Grind - 3
  • Shade Inactive: 3/4
  • PAPR Specifications:
  • Airflow Settings: Adjustable 170/200/230L/min
  • Charging Time: 2hr
  • Working Time: 6hr
  • Filter: TH3 P R SL

Weight: 4.8kg

Warranty: 1 year

Case Quantity: 0

Barcode: 5054630550461

Model Number: PWH618
